Shaw Moisture Meters SSNGH Natural Gas Sample System
Inlet pressure up to 240 barg.
Overview
Features
- Suitable for clean, sweet natural gas
- Sensor operates at atmospheric or line pressure
- Process and auxiliary inlet with manual selector valves
- Sample inlet and outlet pressure indication
- Sample flow control and indication
- Electrically heated pressure regulator for control of sample
- System certified for use in hazardous areas
Description

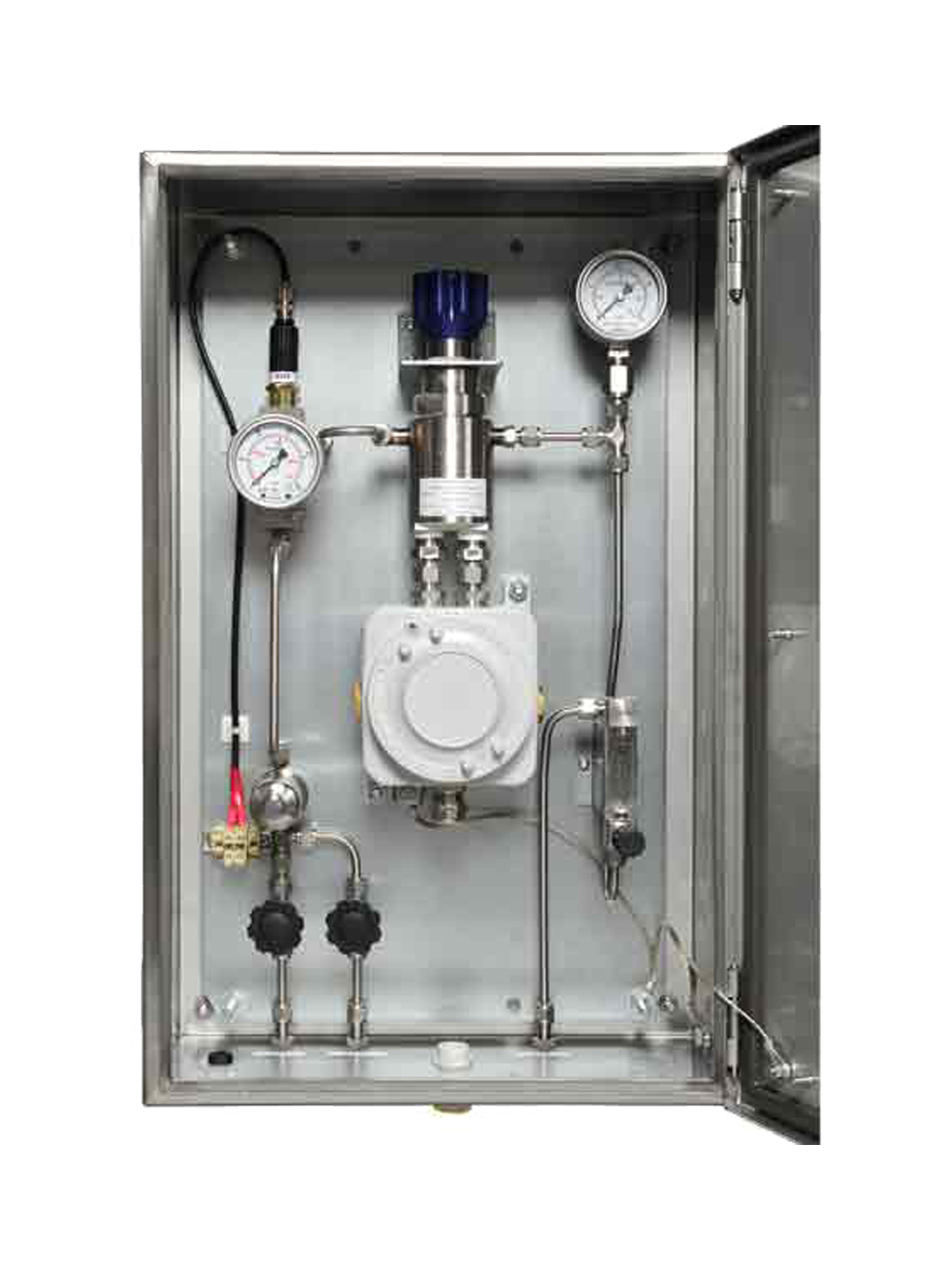

The Shaw Moisture Meters SSNGH Natural Gas Sample System is suitable for the measurement of trace moisture in clean, sweet Natural Gas applications. All Shaw sample systems are built with high quality components, manufactured for long term performance and reliability even in the most rugged applications.
The SSNGH is easy to install and capable of operating at atmospheric or line pressure, and includes an inlet pressure of up to 240 barg. The sample system design includes: sample inlet and outlet pressure indication, sample flow control and indication, an electrically heated pressure regulator allowing control of the sample and utilizes the Shaw dewpoint sensor technology.
The SSNGH is certified for use in hazardous areas and manufactured for long term performance and reliability. The sample system and dewpoint sensor can be housed in the hazardous area and the trace moisture analyzer and Zener barrier unit in the safe area.
Standard sample systems are available for common applications, as well as custom solutions offering fast loop bypass, high pressure sample return with the ability to cope with dirty or condensate-laden samples, tailored to customer specific requirements.
