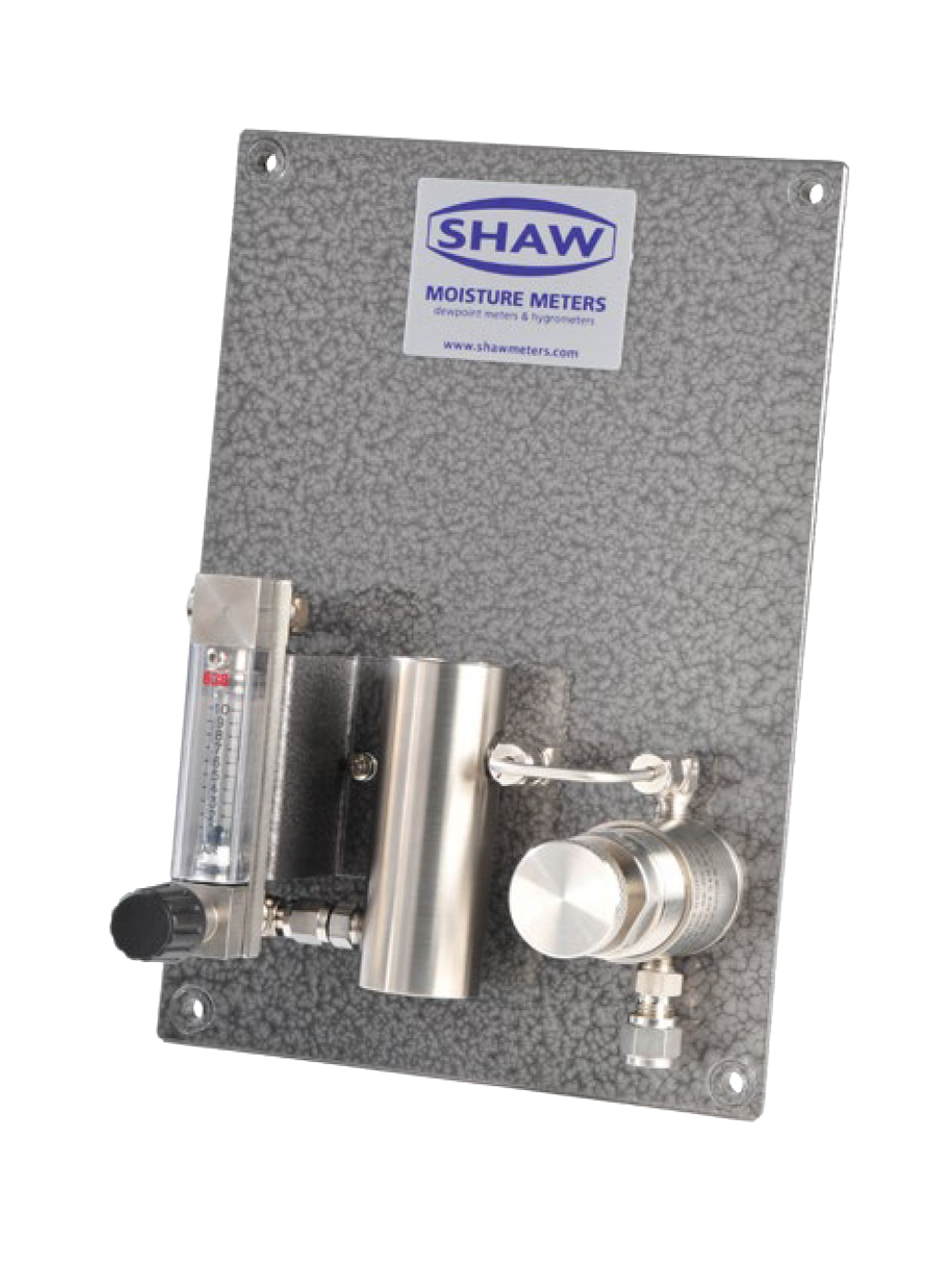

Shaw Moisture Meters SU4 Sample Conditioning Unit
Designed for gas or general compressed air sampling.
Overview
Features
- All stainless steel sampling system consisting of flow meter, pressure regulator, and sensor holder
- Reduce inlet pressure from up to 3,045 psi (210 bar)
- Adjust sample flow up to 10 liters per minute
- Inlet and outlet fittings with a choice of 1/8in, 1/4in, or 6mm compression pipe fittings
- Sampling options, input pressure:
- 200 bar variant
- 400 bar variant
- Wall mounted with 4x5mm mounting holes at 240mm (h) x 140mm (w)
Description
The Shaw Moisture Meters SU4 Sample Conditioning Unit is designed to reduce the dryer/process line pressure, providing a pressure and flow suitable for the measurement of trace moisture in process gases and dry compressed air.
The SU4 sample system allows the sensor to operate at atmospheric pressure during gas or general compressed air sampling. Combining a pressure regulator, sensor holder, and a flow meter for up to 10 liters per minute (1 to 2 liters is usual for continuous use). The SU4 is suitable for wall mounting as all elements of the SU4 sample system are fitted to a stove enameled backplate.
The SU4 system conditions the flow of sample gas to the required 2 to 10 liters per minute at near atmospheric pressure for accurate and consistent sampling. Pneumatic connections are available for inlet and outlet, if required. Choose from a selection of 1/4in, 1/8in, or 6mm compression tube fittings.
