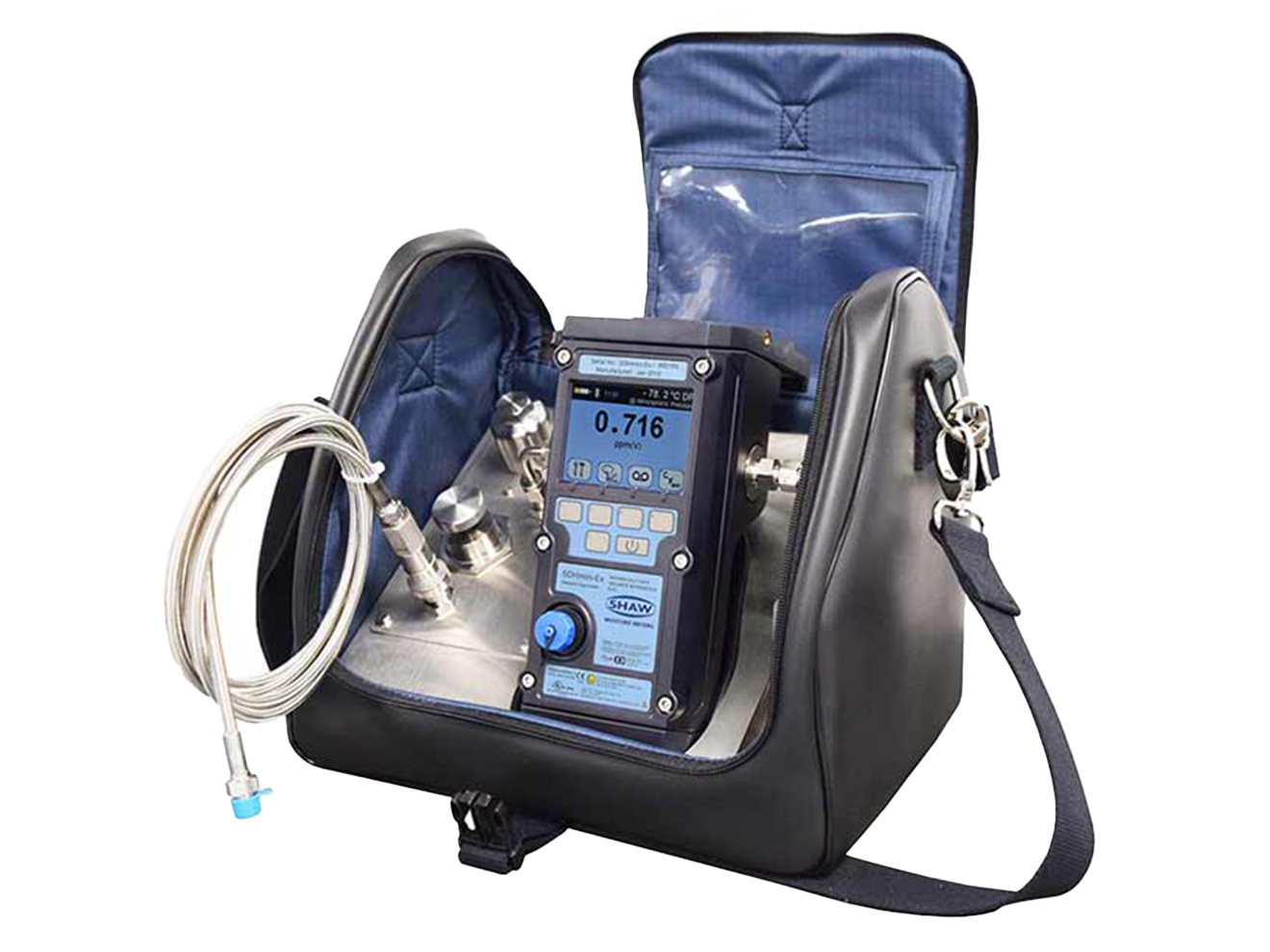

Shaw Moisture Meters SDH-PSS Series Portable Sample System
Gas or compressed air sampling system for use with SDHmini hygrometers. Pressure rating up to 2900psi. Particle filter, pressure regulator and sample hose options available.
Overview
Features
- Media: gas or general compressed air sampling
- Pressure rating: 2900psi max (200bar)
- Sample flow: adjust from 0 to 10l per minute
- Particle filter available with easy cartridge replacement
- Pressure regulator available
- Two metre sampling hose available
- Materials:
- System: stainless steel chassis, fittings and pipework
- Carrying bag: anti-static PVC foam faux leather, rubber feet
- Overall dimensions including carrying case:
- 270mm (h) x 315mm (w) x 245mm (d)
Description

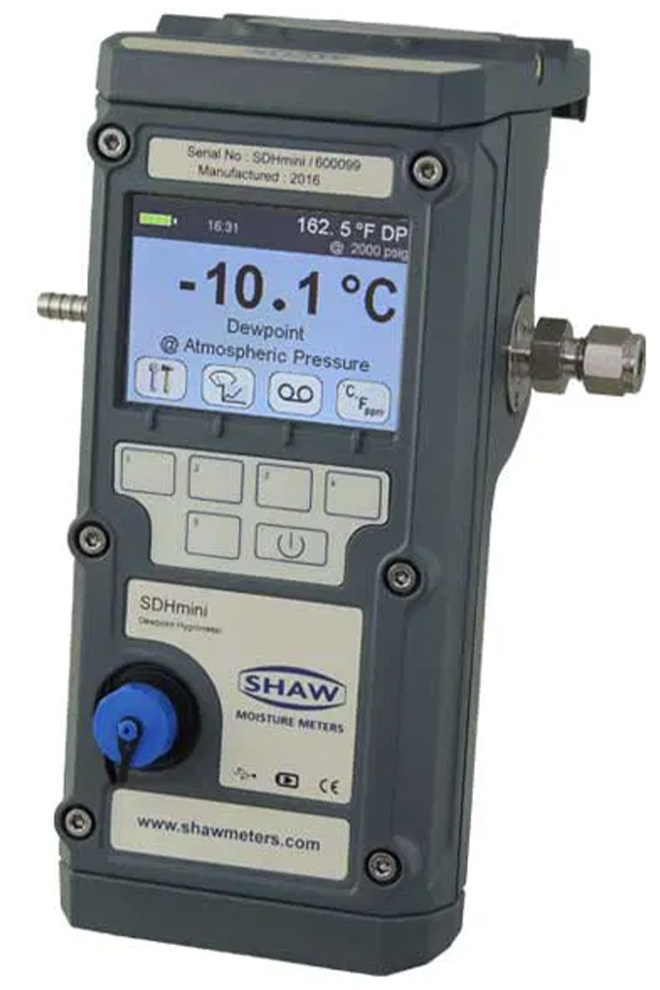

The Shaw Moisture Meters SDH-PSS Series Portable Sample System is designed for use with Shaw's full range of SDHmini dew point hygrometers. An effective sampling system that ensures sample pressures and flow rates are suitable for fast and accurate dew point measurements in gases and dry compressed air.
The SDH-PSS portable sample system offers easy installation and setup. Readily configurable with a flow indicator, optional filter unit and pressure regulator. This system is mounted on a high quality stainless steel chassis with stainless steel pipework and internal fittings. The SDH-PSS Series is specifically designed to condition pressurised gas samples (2,900psi max/200bar) and is fully compatible with the SDHmini portable hygrometer, including not only the standard, but logging and intrinsically safe variants.
