WIKA DMK1200 Digital Measuring Kit
CPG1200 digital pressure gauge with durable case and MINIMESS testing couplings. Vacuum and absolute pressure ranges, -1 up to 600bar. Data logger and Bluetooth optional.
Overview
Features
- Kit includes:
- CPG1200 Pressure Gauge: -1bar vac up to 600bar absolute ranges
- MINIMESS Test Couplings: M12 x 1.5, M16 x 2 thread sizes
- Micro USB Type B interface
- Bluetooth option
- Datalogger option
- Accuracy: 0.25%, 0.5%
- Certifications sold as separate line item, see Accessories tab
Description

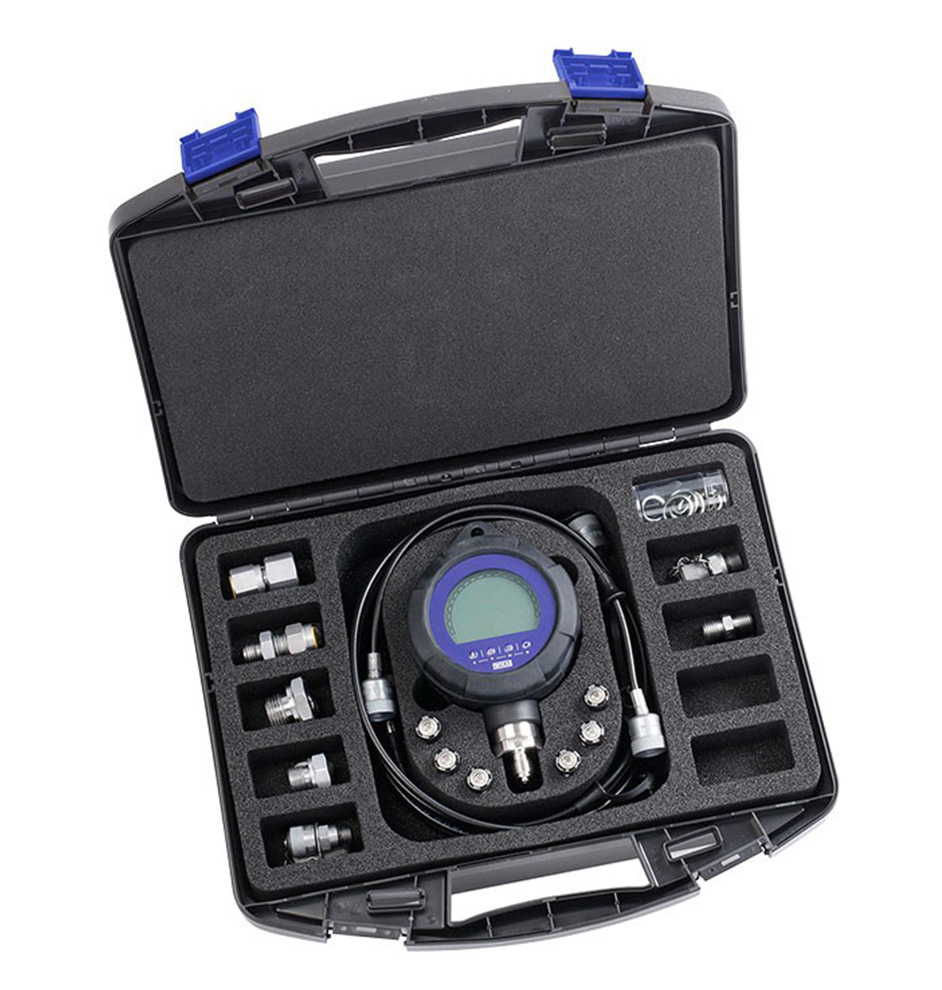

The WIKA DMK1200 Digital Measuring Kit is built around the including CPG1200 digital pressure gauge. These measuring cases are come with individually adapted foam inserts depending on final configured contents.
The DMK1200 offers a comprehensive, flexible solution for service and maintenance of pressure monitoring systems. Two possible quick-release test couplings, the MINIMESS 1620 and 1215 are available for joining WIKA calibration instruments with existing processes. The optional integrated datalogger offers up to 1 million data points, with Bluetooth connection also available for more flexible operation.
Applications:
- Calibration service companies and service industry
- Calibrations directly on-site
- Maintenance and service facilities
- Pressure test
