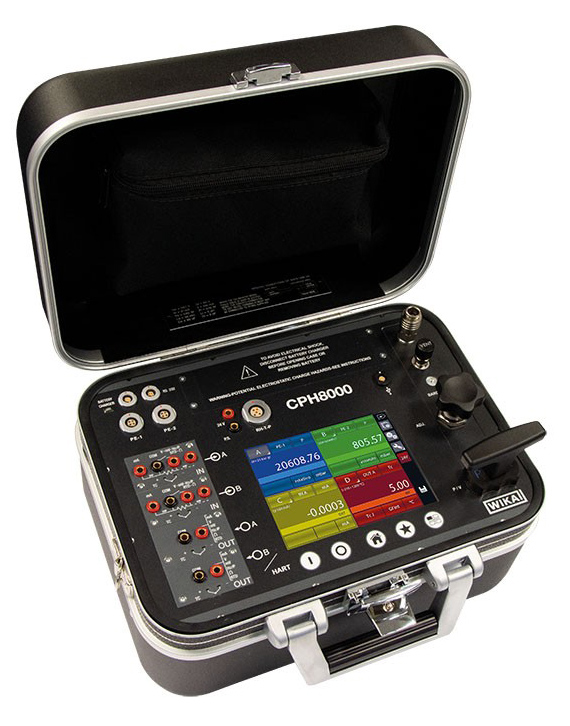

Mensor CPH8000 Portable Multi-Function Calibrator

Portable multi-function calibrator for on field testing and calibrating industrial measuring instruments.

Starting at $6,509.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 5-6 weeks
Product Specs (2 Files)

Features

  • Touchscreen and 5 key display
  • LED backlight
  • DIN plug input for electrical parameters, resistance thermometers, and thermocouples
  • J, K, T, F, R, S, B, U, L, N, E,C thermocouples
  • Voltage Signal:
    • Input: DC±100mV, ±2V, ±80V
    • Output: DC 20V
  • Current Signal:
    • Input: DC ±100mA
    • Output: DC 20mA
  • Up to 50,000 Hz frequency signal
  • 24V DC voltage supply
  • HART module

The Mensor CPH8000 Portable Multi-Function Calibrator is well suited for on field testing and calibration of industrial measuring instruments. It is typically used for calibrating pressure transmitters, pressure measuring instruments, temperature transmitters, and temperature probes as well as other measuring instruments. It can measure gauge and absolute pressure, electrical signals (mA, mV, V, Ω), temperature (TC, RTD), frequency, and pulse. There is also an optional HART module.

The CPH8000 can be modularly configured with up to two input modules as well as one HART module and one output module that are galvanically isolated from each other. It's ability to measure electrical signals or temperature as well as up to six pressure sensors (four internal and two external) makes it highly configurable to meet specific requirements.

Mensor CPT8100 External Standard Reference Sensor
Mensor CPT8100 External Standard Reference Sensor

External Standard Reference Sensor for the CPH8000.

Starting at $1,514.00
WIKA CPR8100 Internal Reference Sensor
WIKA CPR8100 Internal Reference Sensor

Delivering gauge or absolute pressure measurement with up to 0.025% FS accuracy across a wide range of pressure units and ranges.

Starting at $1,601.00
