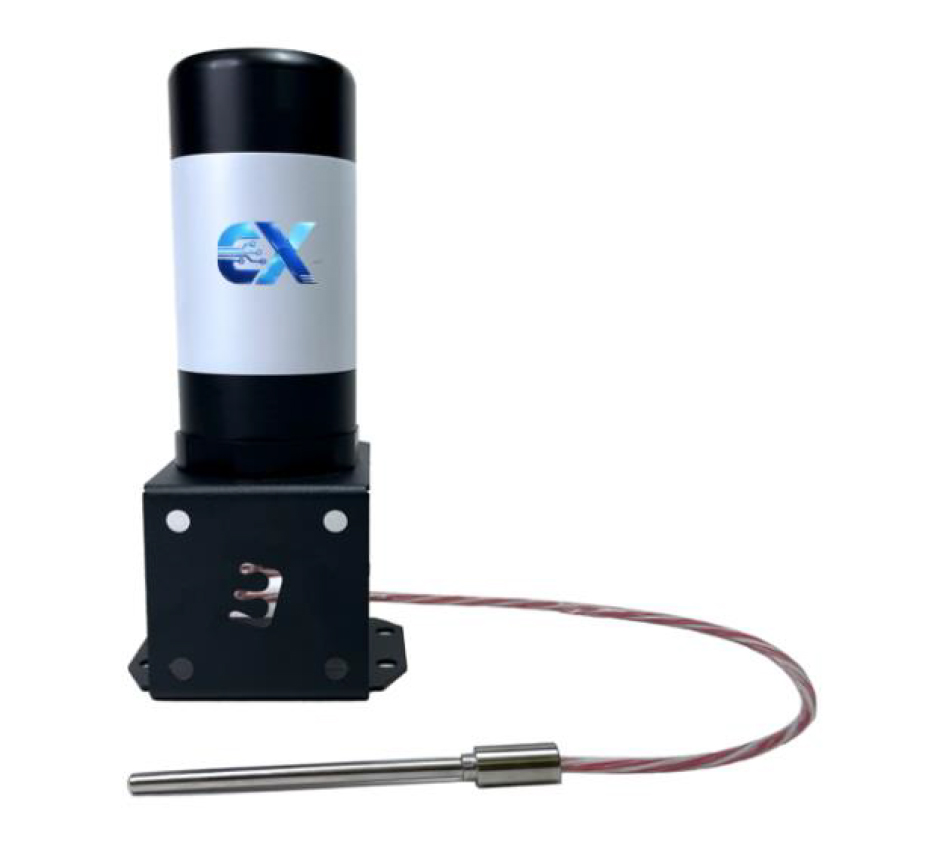

Ellenex TTS3-N Low Power Temperature Transmitter

Temperature sensor with -50 to 250°C range. Suitable for use with liquid media compatible with stainless steel. IP68 rated sensor and housing, NB-IoT or LTE Cat-M1 operation.

Starting at $586.63

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • Sensing element: Pt100, Pt1000
  • Sensing element range: -50 to 250°C
  • Ambient operating range: -20 to 85°C
  • Accuracy: IEC 60751
    • Class B (+/- 0.12% or +/-0.3°C at 0°C)
    • Class A (+/- 0.15°C at 0°C)
  • Built-in Replaceable 3.6V Lithium Battery
  • NB-IoT or LTE Cat-M1 operated sensor
  • Compatibility with common communication protocols
    • UDP, LwM2M, MQTT, NIDD
  • Internal antenna

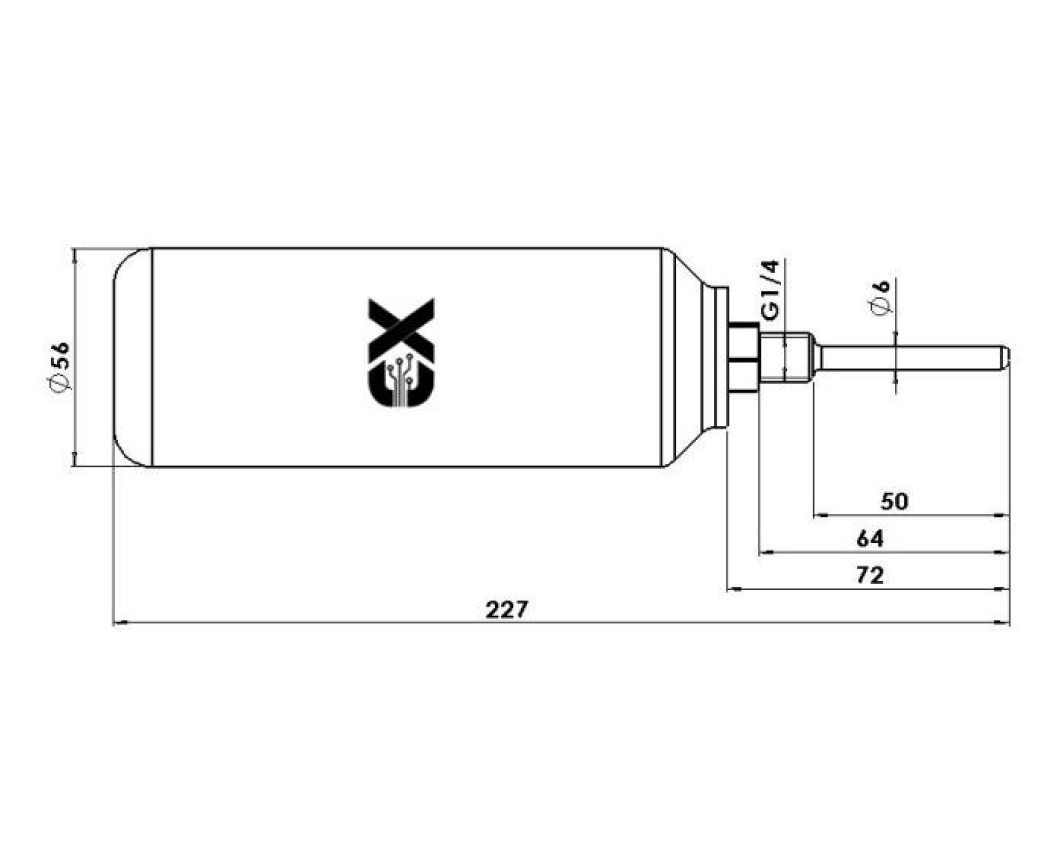

  • Process Connection: G1/4 male (only with type G sensor)
  • Materials:
    • Sheath: SS316 (3mm or 6mm OD)
    • Cable: Silicone Rubber
  • IP68 rated sensor head and housing

The Ellenex TTS3-N Low Power Temperature Transmitter is designed for reliable temperature detection from -50 to 250°C across various applications across oil, gas, mining, construction, agriculture and the food and beverage industries. The TTS3-N Series offers NB-IoT or Cat-M1 communication standards, with high-accuracy performance and durability even in harsh environments thanks to the IP68 rated sensor and enclosure. Designed with low power consumption, the TTS3-N ensures efficient, extended operation.

Applications:

  • Food Delivery Systems
  • Fridges and Hot Chambers
  • Cold rooms Temperature Monitoring
  • Hydraulic and Pneumatic Systems Monitoring
  • Pump Performance Monitoring
  • Water and Liquid Temperature Monitoring
  • Water Pipeline Temperature Monitoring
  • Chiller and Cooling System Monitoring
