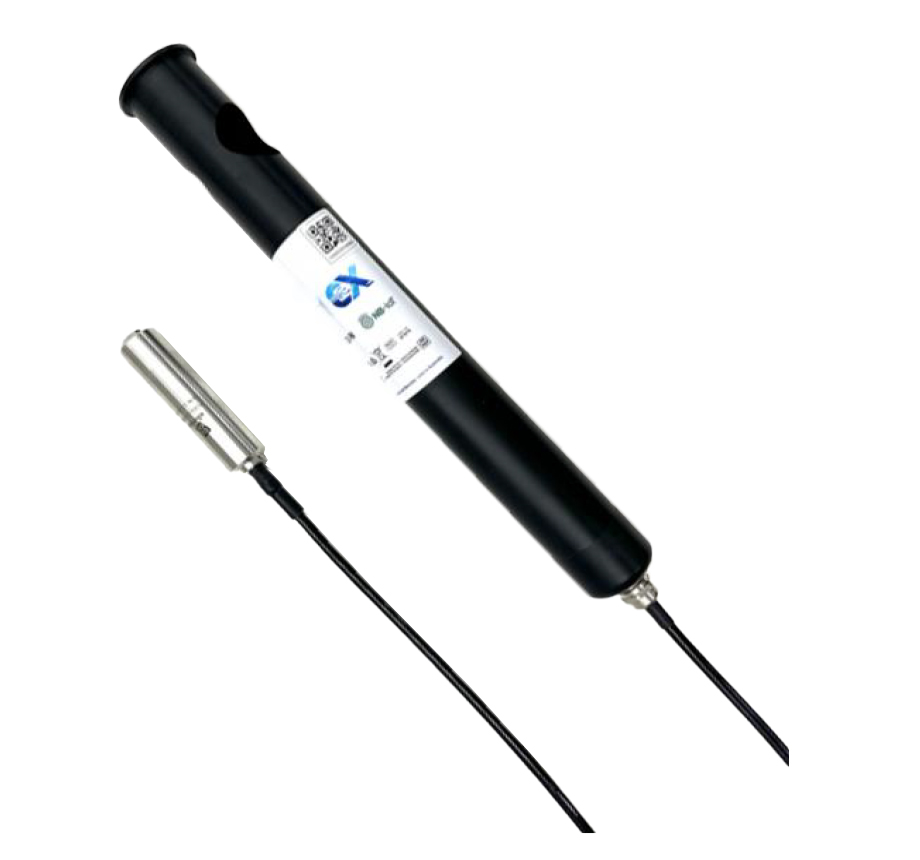

Ellenex PLM2-N Low Power Submersible Level Transmitter
Level transmitter designed for outdoor applications with narrow, IP68 rated sensor head. Up to to 200m H2O measurement range, Cat-NB1 (NB-IoT) or Cat-M1 operation.
Overview
Features
- 1 to 200m H2O sensor measurement range
- Accuracy: ±0.25% of span
- Resolution: ±0.01% of span
- Built-in Replaceable 3.6V Lithium Battery
- Cat-NB1 (NB-IoT) or LTE Cat-M1 operated sensor
- Compatibility with common communication protocols
- UDP, LwM2M, MQTT, NIDD
- Materials of construction:
- O-rings: Viton
- Sensor Head: SS304
- Diaphragm: SS316
- Oil: Silicon / Olive
- Enclosure: ASA/POM
- External antenna as standard
- IP66, UV Protected enclosure
- Cable length approximately same as measurement range
Description
The Ellenex PLM2-L Low Power Level Transmitter is designed for use with liquid media compatible with stainless steel, with high-accuracy performance across applications in the water, wastewater, agriculture, oil, mining and construction industries. The IP68-rated, narrow sensor head makes this unit especially well suited to ground water level monitoring in narrow wells. The PLM2-L Series utilizes NB-IoT or Cat-M1 communication standards, with long-term durability and reliable operation in harsh environments.
