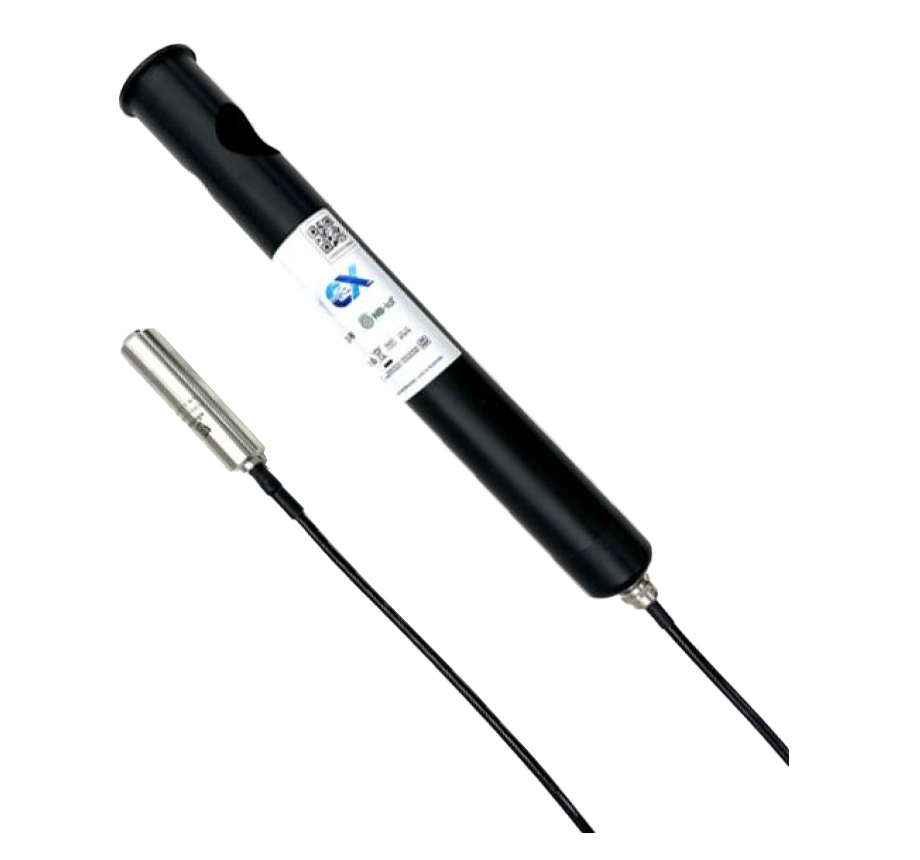

Ellenex PLM2-L Low Power Submersible Level Transmitter
Level transmitter designed for outdoor applications with narrow, IP68 rated sensor head. Up to to 200m H2O measurement range, compatible with all LoRaWAN frequencies.
Overview
Features
- 1 to 200m H2O sensor measurement range
- Accuracy: ±0.25% of span
- Resolution: ±0.01% of span
- Built-in Replaceable 3.6V Lithium Battery
- LoRaWAN 1.0.2revB, Class A
- AS923, EU868, US902-928, AU915-928 frequency zones
- Materials of construction:
- O-rings: Viton
- Sensor Head: SS304
- Diaphragm: SS316
- Oil: Silicon / Olive
- Enclosure: ASA/POM
- Cable: polyurethane
- External antenna as standard
- IP66, UV Protected enclosure
- Cable length is approximately the same as measurement length
Description
The Ellenex PLM2-L Low Power Level Transmitter is designed for use with liquid media compatible with stainless steel, with high-accuracy performance across applications in the water, wastewater, agriculture, oil, mining and construction industries. The IP68-rated, narrow sensor head makes this unit especially well suited to ground water level monitoring in narrow wells. The PLM2-L Series is compatible with all LoRaWAN frequencies, with long-term durability and reliable operation in harsh environments.
