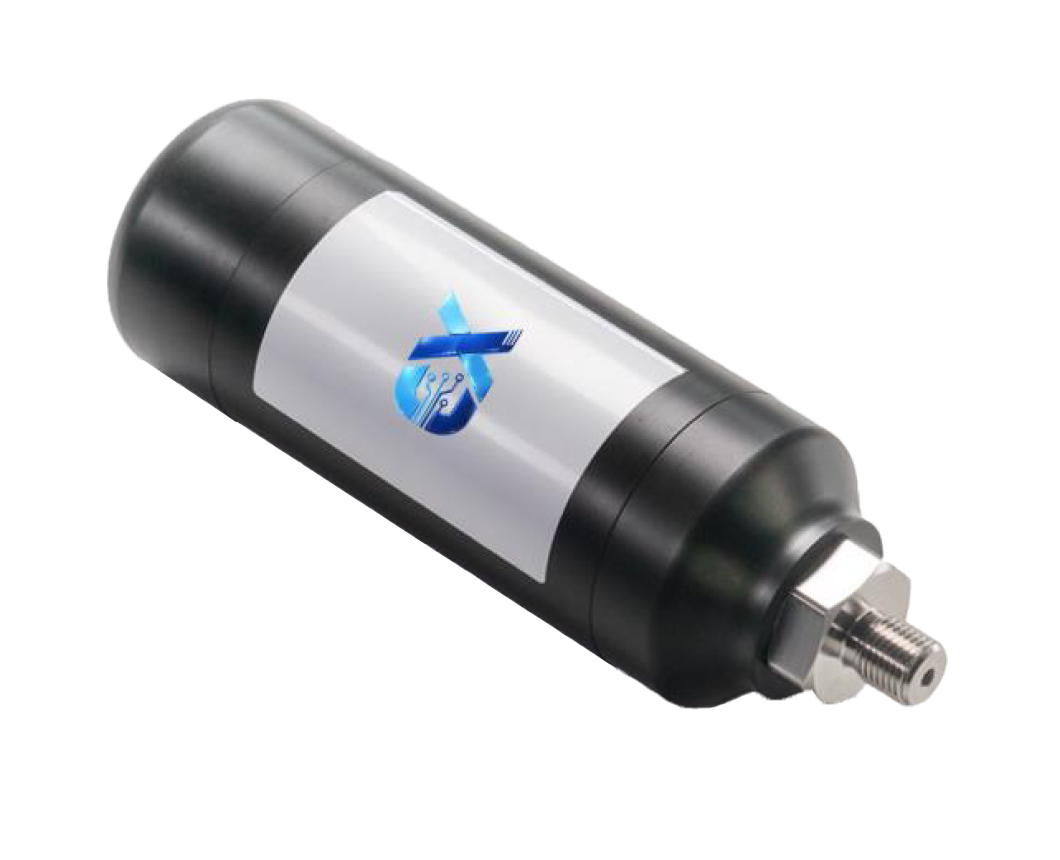

Ellenex PTC2-N Low Power Submersible Pressure Transmitter

Designed for corrosive liquid and gas applications, up to 20bar measurement range. Cat-NB1 (NB-IoT) or Cat-M1 operation.

Starting at $834.13

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • 0 to 20bar sensor measurement range
  • Accuracy: ±0.5% span
  • Resolution: ±0.01% span
  • Built-in Replaceable 3.6 V Lithium Battery
  • Vented Gauge Pressure Reference
  • Cat-NB1 (NB-IoT) or LTE Cat-M1 operated sensor
  • Compatibility with common communication protocols
    • UDP, LwM2M, MQTT, NIDD
  • Materials of construction:
    • Body: Hastelloy or PVDF
    • Diaphragm: Hastelloy or Ceramic (Al2O3)
    • Enclosure: ASA/ POM
    • O-ring: FKM/ FFKM
  • IP65 rated sensor
    • IP66 rated ASA / POM enclosure available

The Ellenex PTC2-N Low Power Submersible Level Transmitter is designed for corrosive liquid and gas applications and offers NB-IoT or Cat-M1 communication standards. Available with up to 20bar sensor measurement range and your choice of either a Hastelloy or Ceramic sensor head.

Applications:

  • Wastewater Pump Performance Monitoring
  • Corrosive Liquid Storage Level Monitoring
  • Corrosive Liquid Storage Pressure Monitoring
  • Spraying System Monitoring
  • Pressurised System Monitoring
  • Compressed Corrosive Gas Monitoring
