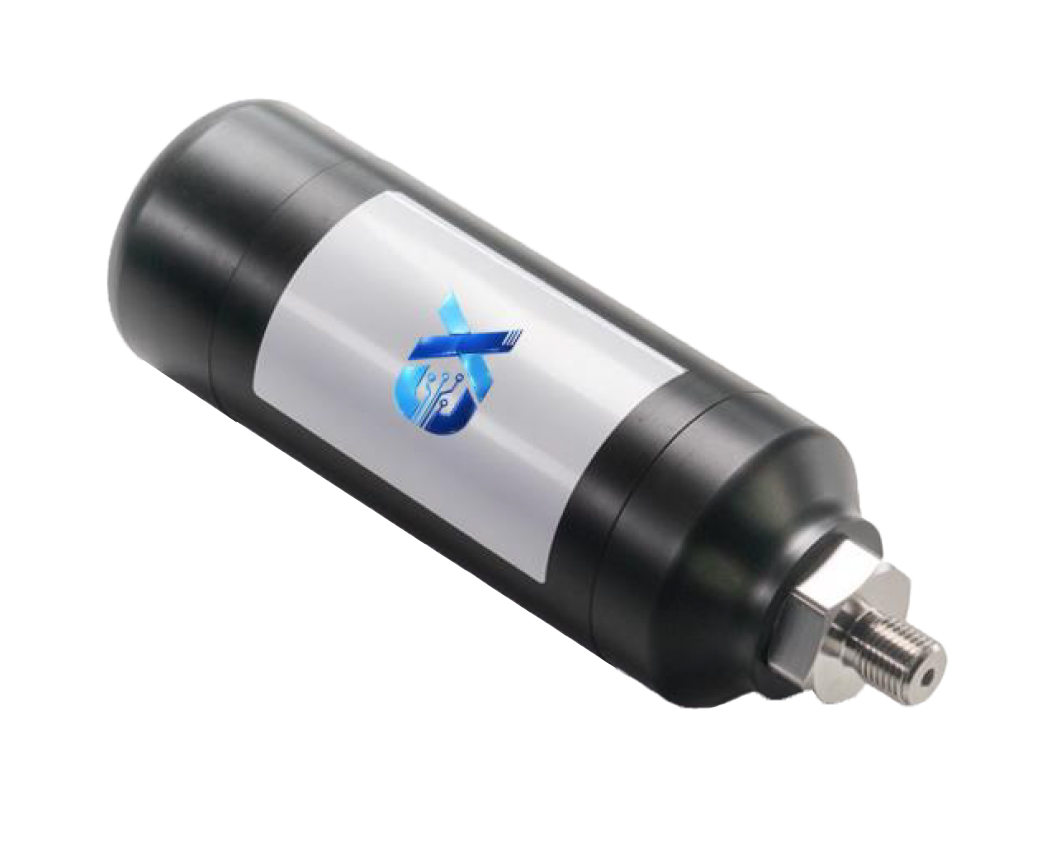

Ellenex PTC2-L Low Power Submersible Pressure Transmitter

Designed for corrosive liquid and gas applications, up to 20bar measurement range, compatible with all LoRaWAN frequencies.

Starting at $834.13

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • 0 to 20bar sensor measurement range
  • Accuracy: ±0.5% span
  • Resolution: ±0.01% span
  • Built-in Replaceable 3.6 V Lithium Battery
  • Vented Gauge Pressure Reference
  • LoRaWAN 1.0.2revB, Class A
    • AS923, EU868, US902-928, AU915-928 frequency zones
  • Materials of construction:
    • Body: Hastelloy or PVDF
    • Diaphragm: Hastelloy or Ceramic (Al2O3)
    • Enclosure: ASA/ POM
    • O-ring: FKM/ FFKM
  • IP65 rated sensor
    • IP66 rated ASA / POM enclosure available

The Ellenex PTC2-L Low Power Submersible Level Transmitter is designed for corrosive liquid and gas applications and is compatible with all LoRaWAN frequencies. Available with up to 20bar sensor measurement range and your choice of either a Hastelloy or Ceramic sensor head.

Applications:

  • Wastewater Pump Performance Monitoring
  • Corrosive Liquid Storage Level Monitoring
  • Corrosive Liquid Storage Pressure Monitoring
  • Spraying System Monitoring
  • Pressurised System Monitoring
  • Compressed Corrosive Gas Monitoring
