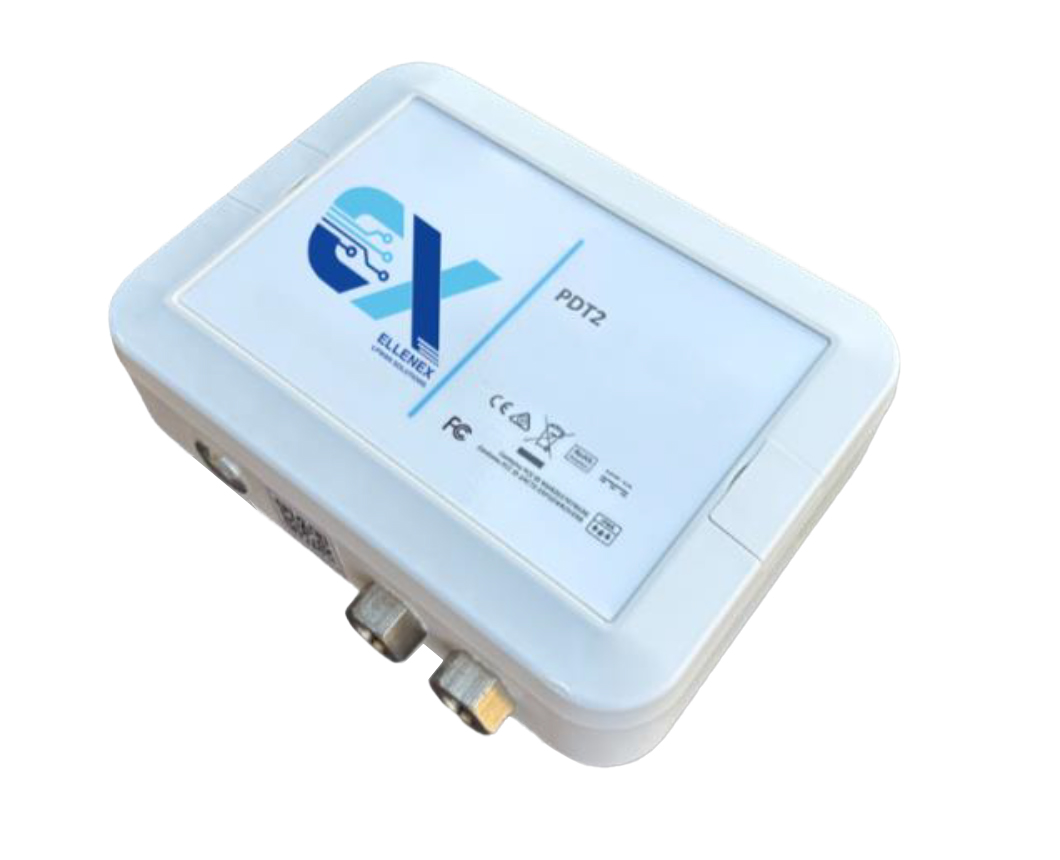

Ellenex PDT2-L Low Power Differential Pressure Transmitter
Differential pressure sensor with up to ±500Pa range and inbuilt temperature sensor. Compatible with all LoRaWAN frequencies. For air and non-conductive, non-corrosive gases.
Images may not represent all possible configurations of this product.
Overview
Features
- Measurement range: ±125Pa, ±500Pa
- Accuracy ± 0.2% span
- Resolution: ± 0.02% span
- Compensated temperature: -20 to 85°C
- Built-in Replaceable 3.6V Lithium Battery
- LoRaWAN 1.0.2revB, Class A (Class C on request)
- AS923, EU868, US902-928, AU915-928 frequency zones
- Process connection: 1/8in NPT Female
- External antenna as standard
- IP66 rated enclosure, UV protected
Description
The Ellenex PDT2-L Low Power Differential Pressure Transmitter is designed for reliable pressure measurement across various applications utilizing air and other non-conductive, non-corrosive gas mediums up to 500Pa. The inbuilt temperature sensor has a compensated range of -20 to 85°C. The PDT2-L Series is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the PDT2-L ensures efficient, extended operation.
Applications:
- HVAC and Air Conditioning Systems
- Leakage Monitoring Systems
- Air Filter Performance Monitoring
- Heat Recovery Systems
- Fan and Ventilation System Performance Monitoring
- Air Velocity Monitoring
- Pressurised Chambers Monitoring
- Blower Vacuum Monitoring
- Clean Rooms positive pressure indication
- Fan pressure indication
- Burner and Boiler Monitoring Systems
