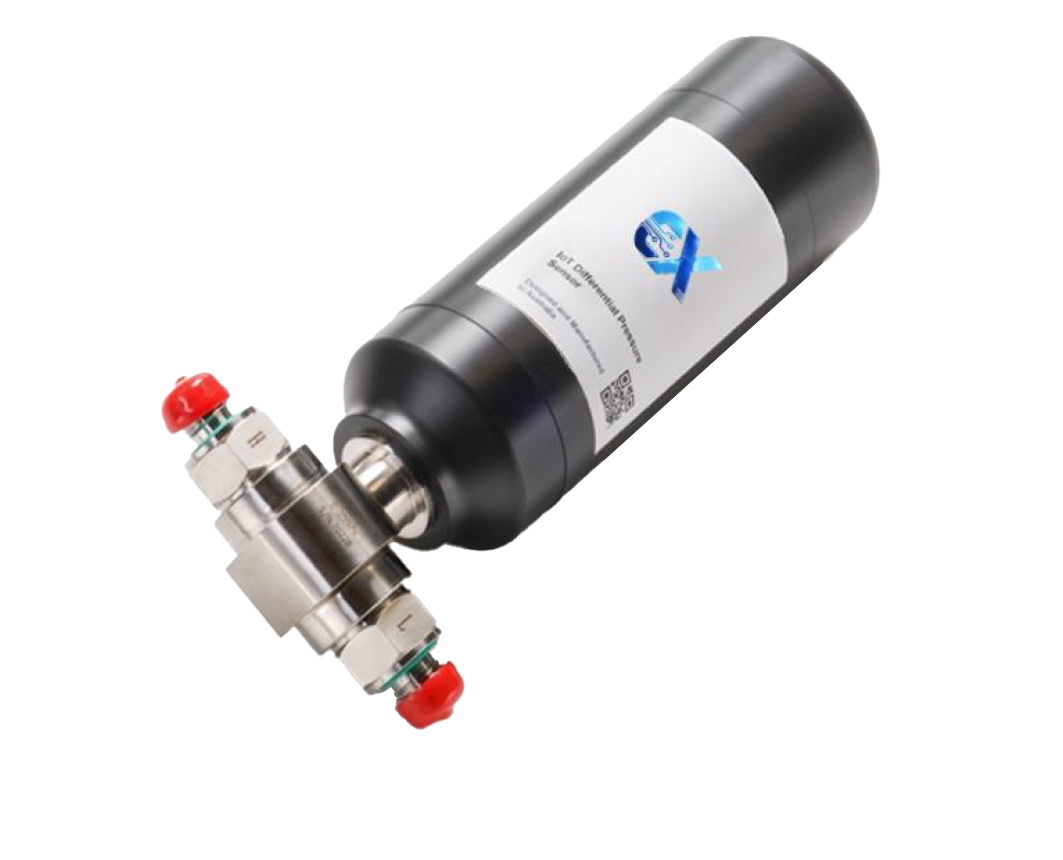

Ellenex PDS2-L Low Power Differential Pressure Transmitter

Differential pressure sensor with 0 to 25bar range. Compatible with all LoRaWAN frequencies, suitable for liquids and gases compatible with stainless steel.

Starting at $842.38

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • Measurement range: up to 25bar
  • Accuracy ± 0.25% span
  • Resolution: 0.01 % span
  • Compensated temperature: 0 to 60°C
  • Built-in Replaceable 3.6V Lithium Battery
  • LoRaWAN 1.0.2revB, Class A (Class C on request)
    • AS923, EU868, US902-928, AU915-928 frequency zones
  • Materials of construction:
    • O-ring: Viton
    • Body: SS304
    • Diaphragm: SS316,
    • Oil: Silicon / Olive
    • Enclosure: ASA/POM
  • Process connection: G1/4, 1/4in NPT
  • External antenna as standard

The Ellenex PDS2-L Low Power Differential Pressure Transmitter is designed for reliable pressure measurement across various applications utilizing liquid and gas mediums up to 25bar. Process connections are available in G1/4, or 1/4in NPT sizes. The PDS2-L Series is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the PDS2-L ensures efficient, extended operation.

Applications:

  • Pump Performance Monitoring
  • Hydraulic and Pneumatic Systems Monitoring
  • Water Pipeline Pressure Monitoring
  • Closed Liquid Storage Level Monitoring
  • Pressurised System Monitoring
  • Spraying System Monitoring
  • Chiller and Cooling System Monitoring
  • Air Compressor Monitoring
