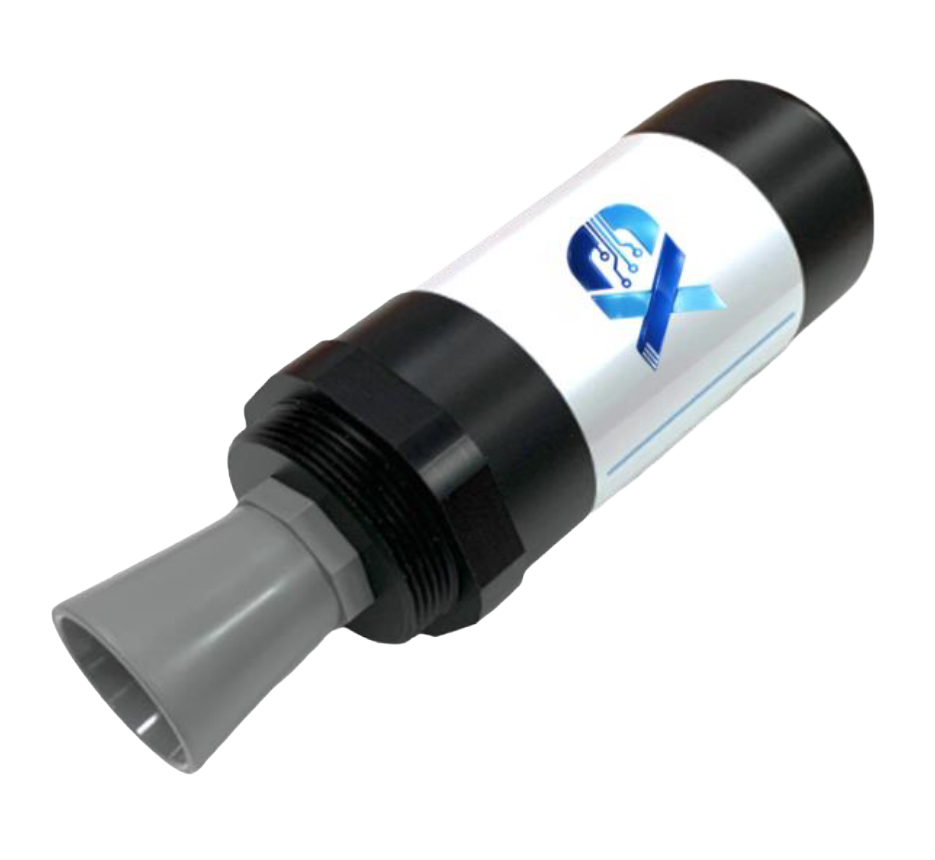

Ellenex DUC2-N Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor
Corrosion resistant ultrasonic level and distance sensor with 10m range. For use with liquid and solid media. Cat-NB1 (NB-IoT) or Cat-M1 operation. Cylindrical or rectangular enclosures.
Images may not represent all possible configurations of this product.
Overview
Features
- Measurement range: 10m
- Sensor minimum distance: 0 to 50cm
- 1mm resolution
- Compensated temperature: -10 to 65°C
- Built-in Replaceable 3.6V Lithium Battery
- Cat-NB1 (NB-IoT) or LTE Cat-M1 operated sensor
- Compatibility with common communication protocols
- UDP, LwM2M, MQTT, NIDD
- Internal antenna as standard
- Device activation: no switch, always on
- Materials on construction:
- Enclosure: ASA / POM, IP66
- Sensor Head: Parylene coating applied to the surface of the Aluminum transducer
Description
The Ellenex DUC2-N Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor is designed for reliable level detection across various applications involving wastewater and corrosive liquid media, with a 10m measuring range. The DUC2-N Series offers NB-IoT or Cat-M1 communication standards, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DUC2-N ensures efficient, extended operation.
Applications:
- Chemical Tanks
- Diesel Tank
- Liquid Delivery Systems
- Hydraulic Containers
- Liquid Storage
- Wastewater Tank
- Food Industry
- Water Resources Level
