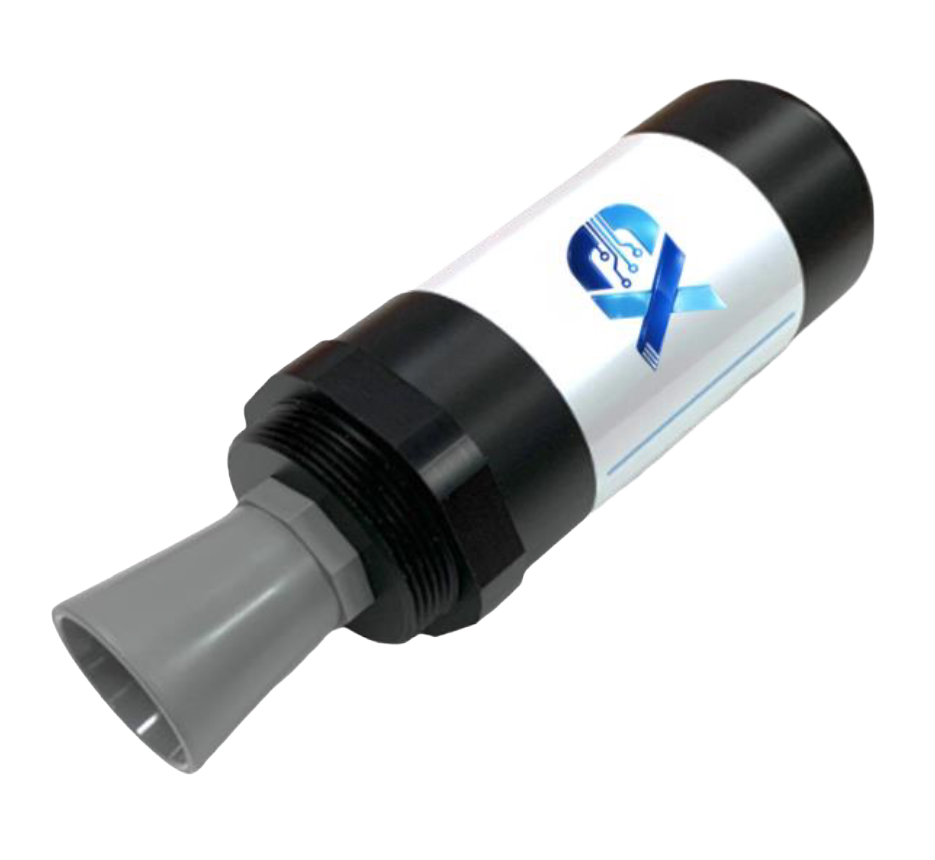

Ellenex DUC3-L Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor
Corrosion resistant ultrasonic level and distance sensor with a 10m range. For use with liquid and solid media. Compatible with all LoRaWAN frequencies, IP68 rated enclosure.
Overview
Features
- Measurement range: 10m
- Sensor minimum distance: 0 to 50cm
- Compensated temperature: -10 to 60°C
- Built-in Replaceable 3.6V Lithium Battery
- LoRaWAN 1.0.2revB, Class A (Class C on request)
- AS923, EU868, US902-928, AU915-928 frequency zones
- Internal antenna as standard
- Device activation: no switch, always on
- Materials on construction:
- Enclosure: POM
- Sensor Head: Parylene coating applied to the surface of the Aluminum transducer
- Cylindrical enclosure, IP68
Description
The Ellenex DUC3-L Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor is designed for reliable level detection across various applications involving wastewater and corrosive liquid media, with a 10m measuring range. The DUC3-L Series is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DUC3-L ensures efficient, extended operation.
Applications:
- Chemical Tanks
- Diesel Tank
- Liquid Delivery Systems
- Hydraulic Containers
- Liquid Storage
- Wastewater Tank
