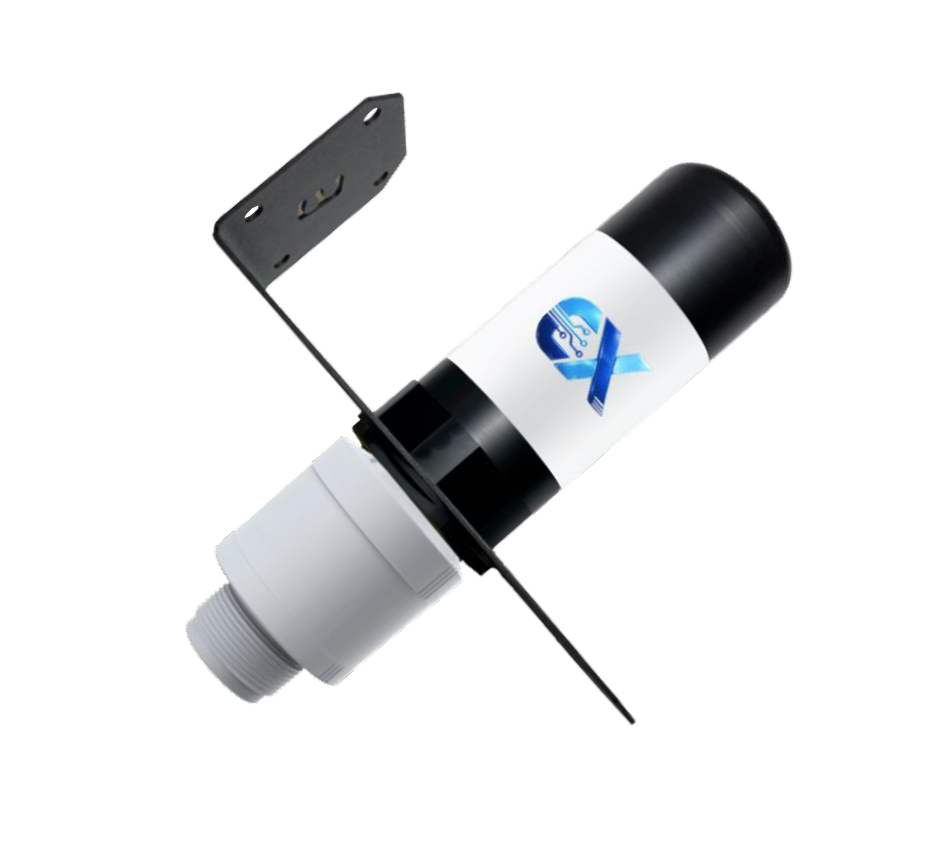

Ellenex DRC3-L Corrosion Resistant Low Power Radar Distance / Level Sensor
Corrosion resistant radar level and distance sensor with up to 30m range. For use with liquid and solid media. Compatible with all LoRaWAN frequencies, IP68 rated enclosure.
Images may not represent all possible configurations of this product.
Overview
Features
- Measurement range: 10m, 30m
- Sensor minimum distance: 0 to 20cm
- Process pressure: -1 to 3bar
- Frequency: 80GHz frequency
- Compensated temperature: -20 to 60°C
- 80°C with 30m range
- Built-in Replaceable 3.6V Lithium Battery
- LoRaWAN 1.0.2revB, Class A (Class C on request)
- AS923, EU868, US902-928, AU915-928 frequency zones
- Internal antenna as standard
- Device activation: no switch, always on
- Materials on construction:
- Enclosure: POM
- Sensor Head: PVDF
- Seal: PKF
- Cylindrical enclosure, IP68
Description
The Ellenex DRC3-L Corrosion Resistant Low Power Radar Distance / Level Sensor is designed for reliable level detection across various applications involving wastewater and corrosive liquid media, with up to a 30m range. The DRC3-L Series is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DRC3-L ensures efficient, extended operation.
Applications:
- Flood alarming
- Corrosive Liquid Storage
- Manhole and underground water way
- Wastewater Tank
