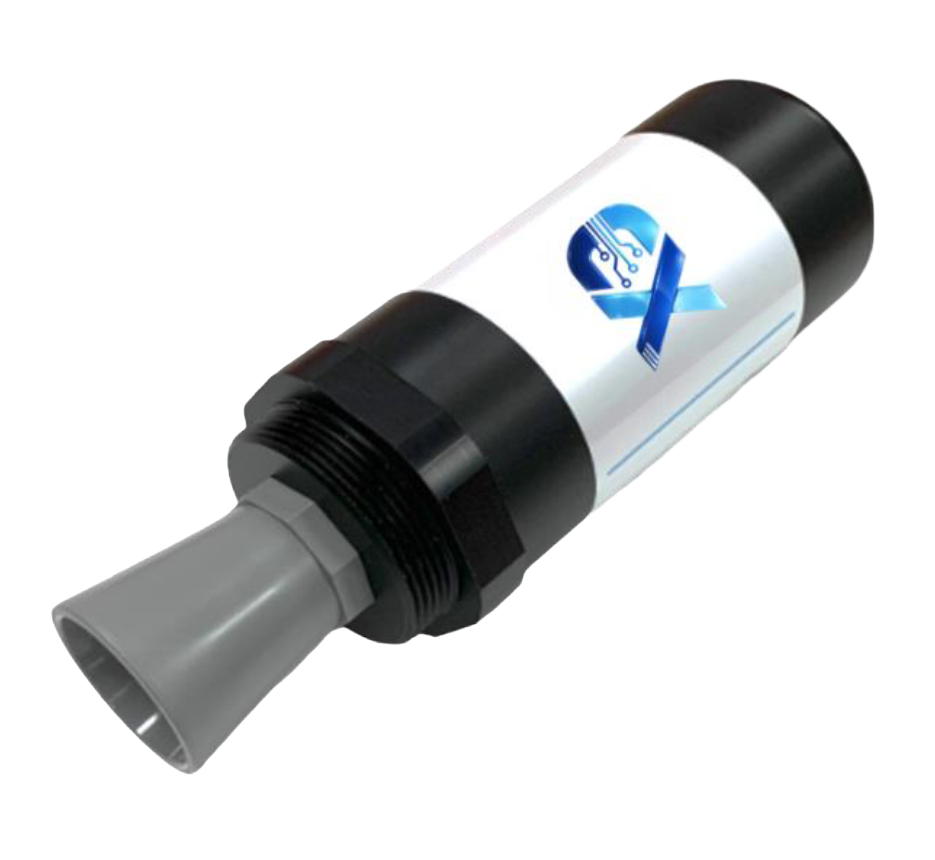

Ellenex DUS3-L Low Power Ultrasonic Distance / Level Sensor
Ultrasonic level and distance sensor with 10m range, and 1mm resolution. For use with liquid and solid media. Compatible with all LoRaWAN frequencies, IP68 rated enclosure.
Images may not represent all possible configurations of this product.
Overview
Features
- Measurement range: 10m
- ± 1% of span
- 1mm resolution
- Sensor minimum distance: 0 to 50cm for 10m range
- Built-in Replaceable 3.6V Lithium Battery
- LoRaWAN 1.0.2revB, Class A (Class C on request)
- AS923, EU868, US902-928, AU915-928 frequency zones
- Internal antenna as standard
- Device activation: no switch, always on
- Cylindrical POM enclosure, IP68
Description
The Ellenex DUS3-L Low Power Ultrasonic Distance / Level Sensor is designed for reliable level detection across various applications including underground tank level monitoring for water and diesel, as well as long range object detection. The DUS3-L Series is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DUS3-L ensures efficient, extended operation.
Applications:
- Under Ground Water Tank Level Monitoring
- Distance Measurement
- Under Ground Diesel Tank Level Monitoring
- Long Range Object Detection
- Flood Monitoring
- Under Ground
