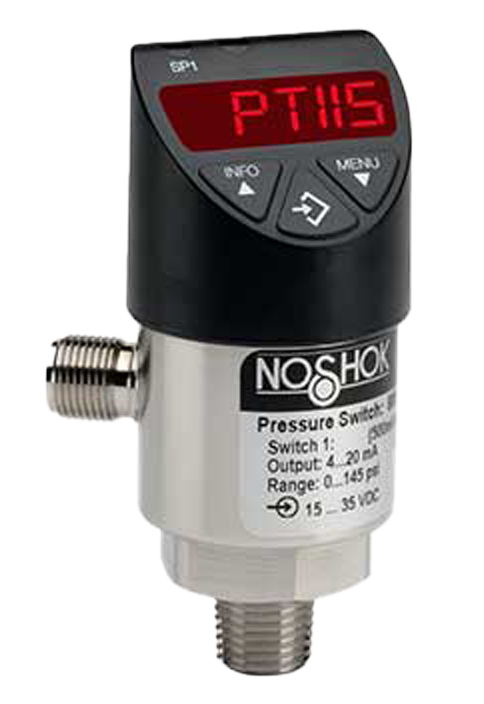

NOSHOK PTI15 Series Intelligent Indicating Pressure Transmitter/Switch with IO Link
Provides continuous pressure monitoring and allows the programming of the set points without applying pressure.
Overview
Features
- Ranges up to 7,500 psi
- 4 to 20mA or 0 to 10VDC output signal
- 316L Stainless steel wetted parts
- 4-digit LED display, can rotate >300°
- ≤5ms response time
- ≤0.5 % of span accuracy (IEC 61298-2)
- Service life of 100 million load cycles
- RFI, EMI, and ESD Electromagnetic rating
Description
The NOSHOK PTI15 Series Intelligent Indicating Pressure Transmitter/Switch with IO Link provides continuous pressure monitoring and allows programming of set points without applying pressure.
The 4-digit LED display can be rotated for optimal visibility from nearly any direction. Simple, two button operation makes it easy to adjust set points, contact functions (normally open / normally closed), reset points, contact types (NPN / PNP) and switching function (hysteresis / gate).
Applications for the PTI15 Series include:
- Hydraulics and pneumatics
- Power generation
- Pumps and compressors
- Stamping and forming presses
- Water and wastewater
