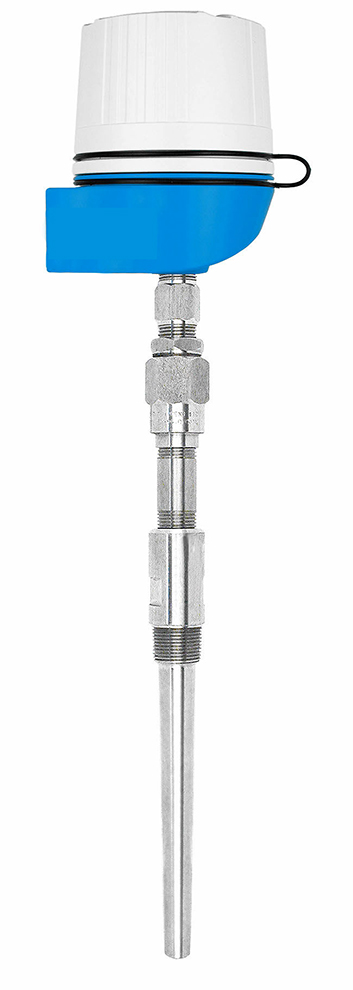

E+H iTHERM ModuLine TM152 Modular Thermometer

Industrial Imperial RTD/TC thermometer with barstock thermowell for a wide range of industrial applications.

Starting at $525.85
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • –328 to 2,012°F (–200 to 1,100°C) measuring range
  • Up to 500 bar (7,252 psi) pressure range
  • Suitable for hazardous areas
  • Suitable for high process pressures
  • Dual seal technology
  • Mineral insulated (MI), flexible insert/probe
  • ATEX, IECEx, CSA, INMETRO international certification
  • SIL (transmitter), CRN certification

The E+H iTHERM ModuLine TM152 modular thermometer is a modular industrial RTD or thermocouple thermometer designed for use with either a barstock thermowell or an existing onsite thermowell. It supports applications ranging from standard measurement tasks to demanding requirements in chemical, oil and gas, and power and energy environments. The device can be equipped with an iTEMP temperature transmitter supporting common communication protocols, with optional Bluetooth connectivity for configuration and diagnostics.

The design allows sensor replacement and recalibration without stopping the process and includes a dual-seal concept that provides an additional process barrier with failure indication. Performance options include fast response times down to 1.5 seconds, high resistance to vibration exceeding 60 g, and a tool-free neck design to simplify maintenance. The thermometer is available with international approvals, including explosion protection certifications and functional safety compliance.

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
TM152-CFCDBAEAAAX1A1ABABB1AH3BA1 2.50inc Call for information 10 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
