ifm efector U4 Series Flow Block
Stainless steel flow adapter for 15 to 2000ml/min flow ranges and -25 to 80°C medium temperatures for installing flow sensors in pipes with small volumetric flow quantities.
Overview
Features

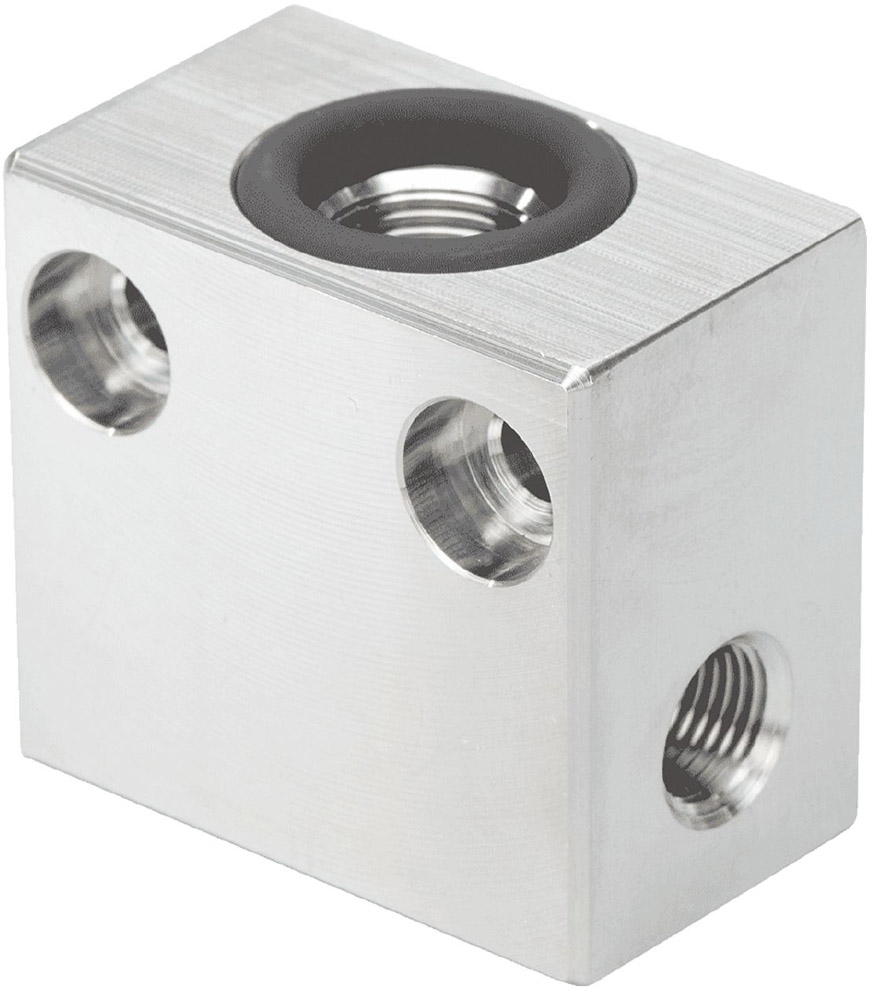

- U40046
- M12 x 1 sensor connection
- 1/8in NPT process connections
- 15 to 400ml/min flow range
- Screw mounted, 1/8in NPT
- -25 to 80°C medium temperature range
- stainless steel (1.4401/316)
- Includes FKM o-rings

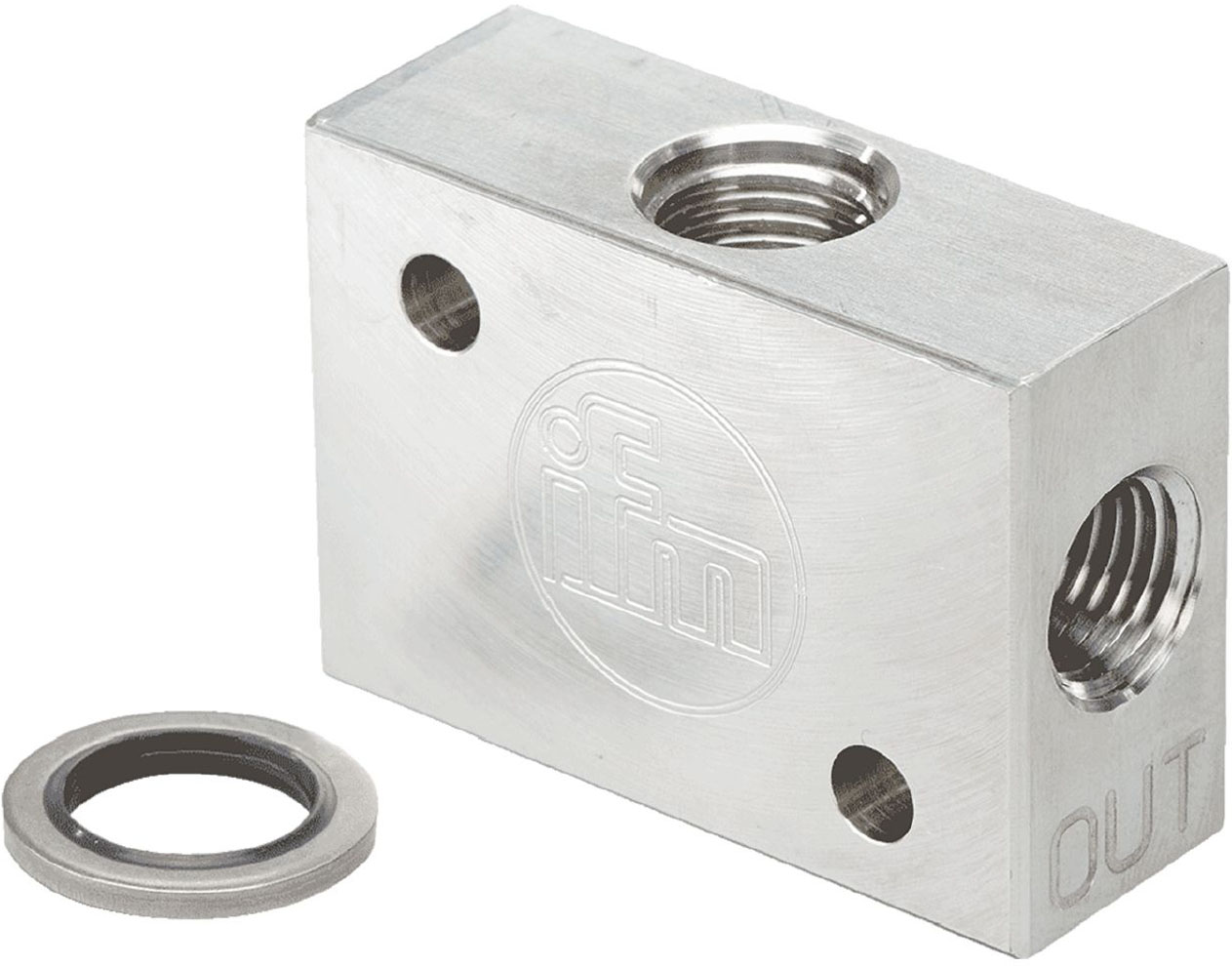

- U40062
- G1/4 sensor connection
- 1/4in NPT process connections
- 80 to 2000ml/min flow range
- Screw mounted, 1/4in NPT
- 300 bar (30 MPa) pressure rating
- -25 to 80°C medium temperature range
- stainless steel (1.4401/316); sealing: steel nickel-plated, FKM
Description
The ifm efector U4 Series Flow Block is a process adapter designed for the installation of flow sensors into pipes with low volumetric flow rates. It offers quick, easy, and secure flow monitoring with very high overload pressure resistance. The U4 series flow block is constructed from robust stainless steel that can withstand medium temperatures from -25 to 80°C and flow ranges of 15 to 400ml/min or 80 to 2,000ml/min. These flow blocks are available with an M12 or G1/4 sensor connection, and 1/4 or 1/8in NPT process connections.
