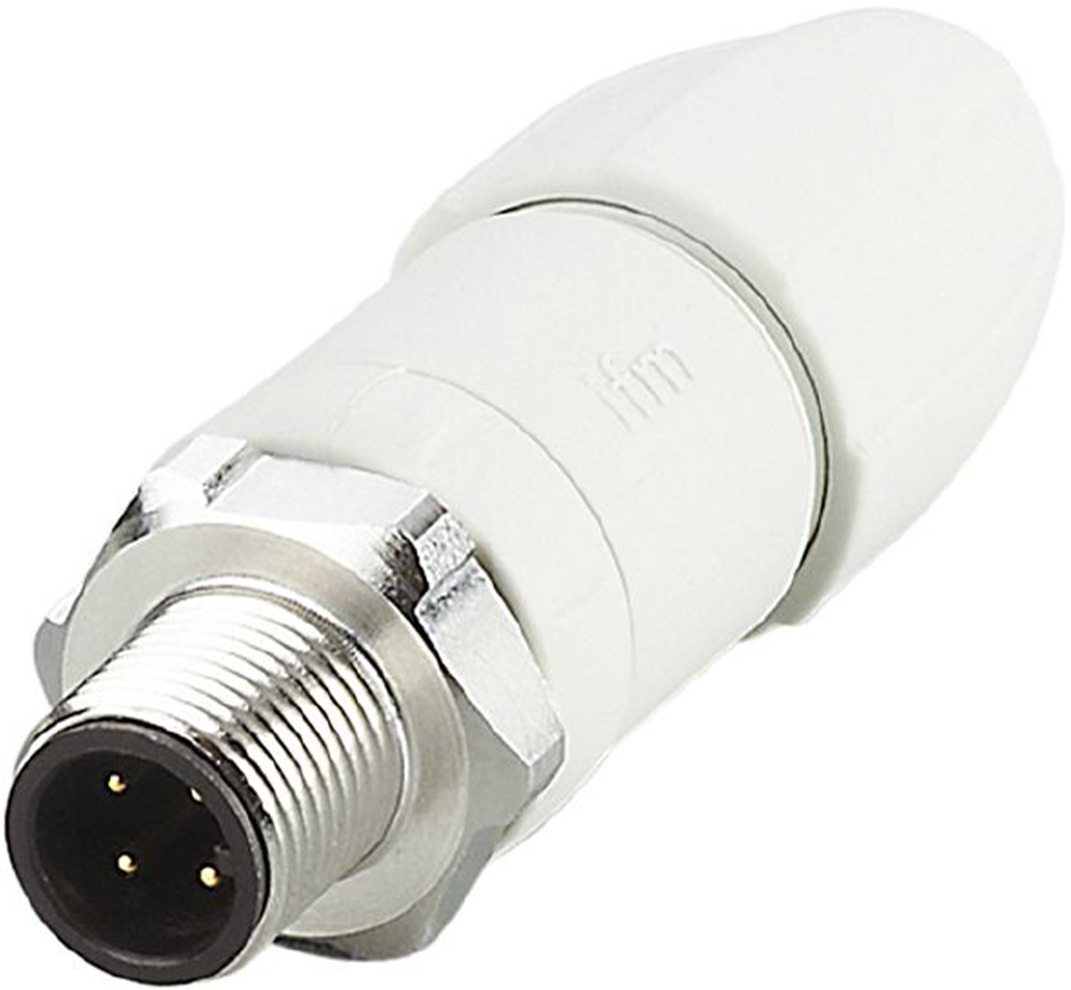

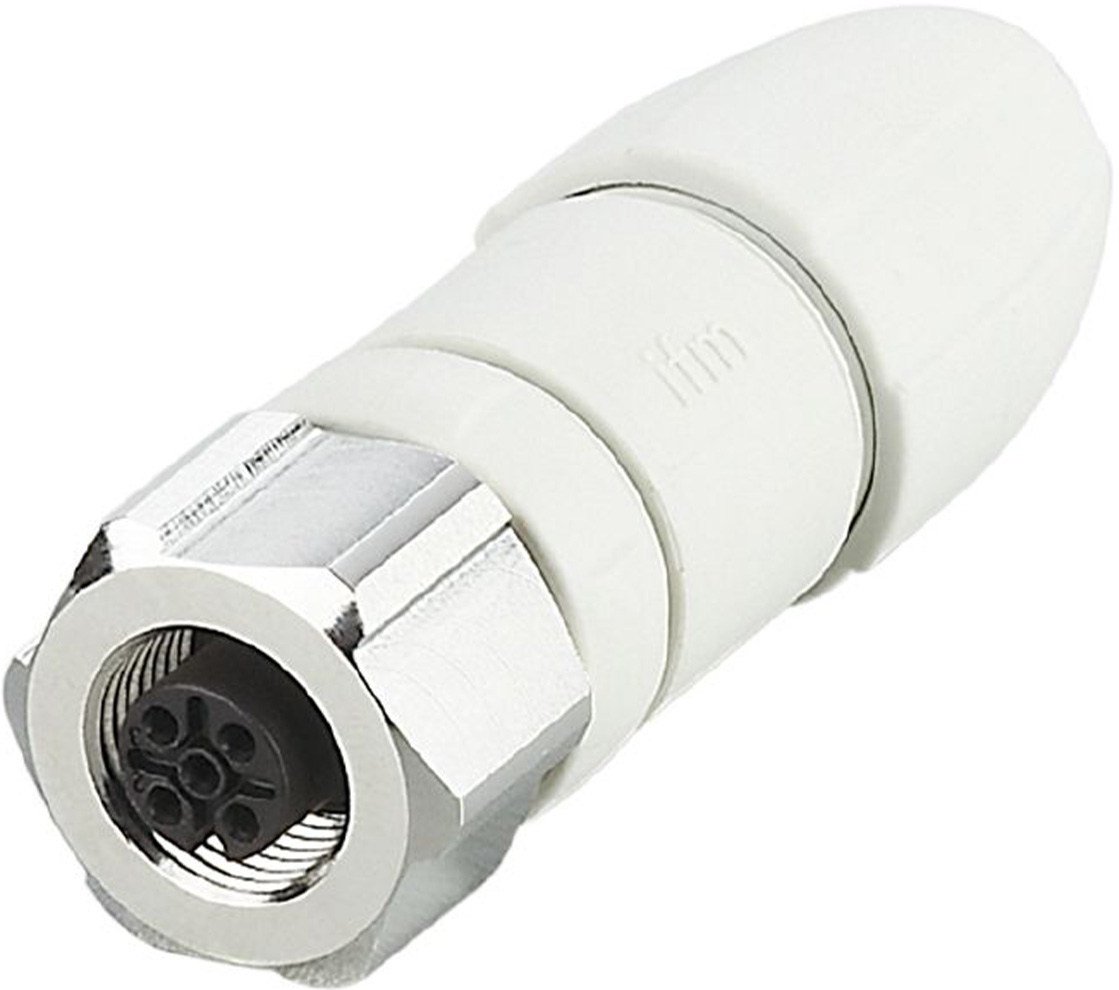

ifm efector EVF Series Wirable Connector

Straight or angle design with male or female M12 connection for sanitary and wet areas in the food industry.

Starting at $33.00

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 1-3 business days
Product Specs (8 Files)

Features

  • Straight or right-angle design with M12 connection
  • Silicone-free with gold-plated contacts
  • stainless steel coupling nut
  • EPDM sealing material
  • Voltage options:
    • <60 AC/DC
    • <250 AC / <300 DC
  • 4A; (40°C) maximum current load
  • Electrical connection:
    • Screw terminals: 0.25 to 1mm²
    • Cable sheath: Ø3.5 to 6mm; AWG 23 to 17
  • -25 to 100°C Ambient temperature range
  • 1K22/ DIN 60721-3-1
  • IP65; IP67; IP68; IP69K
  • cULus, cRUus, ECOLAB approval
  • EU, UK, REACH (SCIP) RoHS, and China RoHS declaration of conformity
