Druck UPS4E Loop Calibrator

Compact, one-handed calibrator for loop testing and powering process control mA loops and devices.

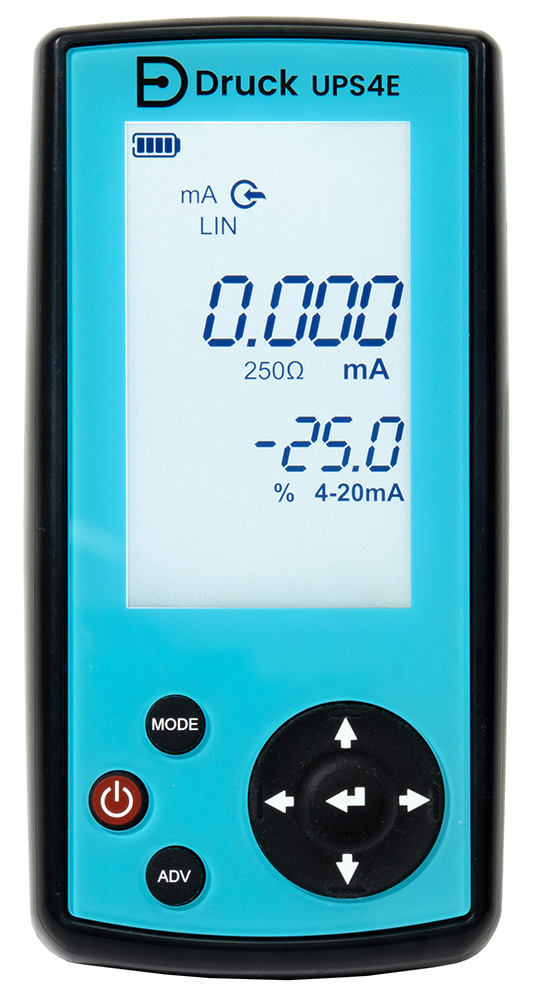

Druck UPS4E Loop Calibrator

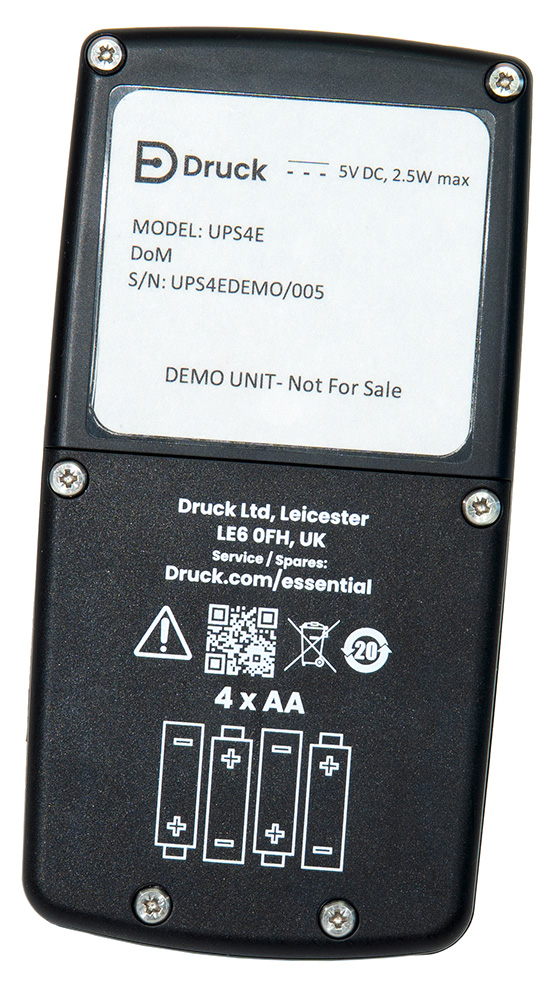

Druck UPS4E Loop Calibrator - back

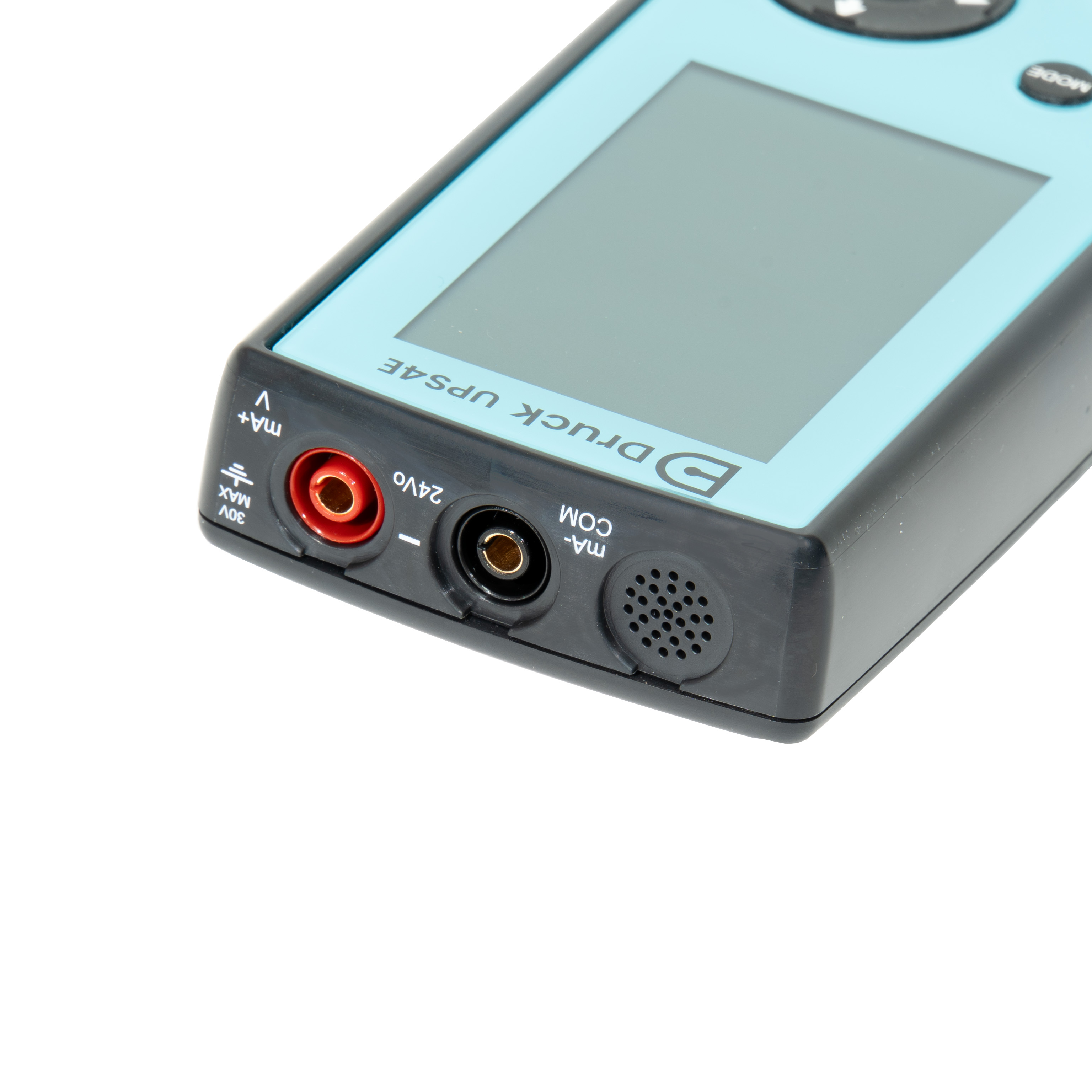

Druck UPS4E Loop Calibrator - top

$1,156.00 Found a better price? Let us match.

Effective April 16th, 2025, Druck has added a 7% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

UPS4E

Manufactured

By Druck

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Call for availability

Product Specs

Features

Measure or source 0 to 24 mA
Accuracy 0.01% of reading+1 count
Dual mA and % readout, linear or flow
Step, span check, valve check, ramp
30 VDC measurement and continuity check
100,000 datalog points
In built 250 Ω resistor for supporting HART operation
24 V DC loop power with mA measure or source mode
Auto shutdown to conserve battery life

The Druck UPS4E loop calibrator is a rugged and extremely compact loop calibrator, designed to be operated with one hand. Small enough to fit in the top pocket of an overall, the UPS4E is the latest addition to the Druck “UPS” series, replacing the legacy UPS-II and UPS-III loop calibrators.

The UPS4E is an essential tool for testing and calibrating current loops in industrial control systems. It can source, measure, or simulate a precise electrical current—typically in the 4–20 mA range—allowing technicians to verify the performance of sensors, transmitters, and control systems. It also provides 24V loop power, making it an essential tool for troubleshooting and maintenance in process automation environments.

The calibrator has an easy-to-read display and simple-to-use time saving features including step, span, and valve check.
