Testo 860i Thermal Imager

Name: Testo 860i Thermal Imager
Price: 450.0 USD
Availability: BackOrder

256 x 192 resolution, 640 x 480 image size, 50mK sensitivity, wireless connection to a smartphone via Testo Smart App, full temperature data, Delta T analysis.

Testo 860i Thermal Imager Front View

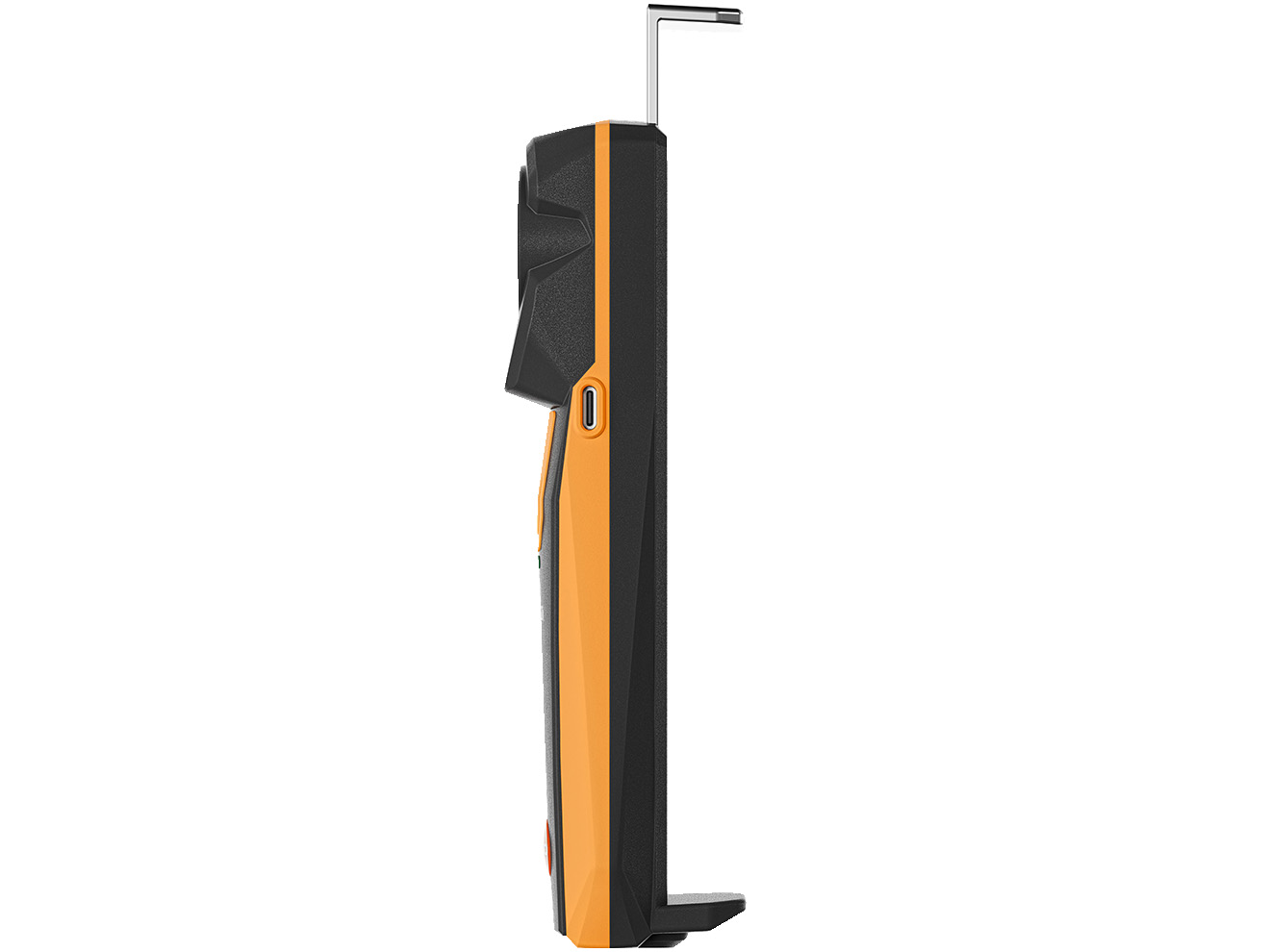

Testo 860i Thermal Imager Side View

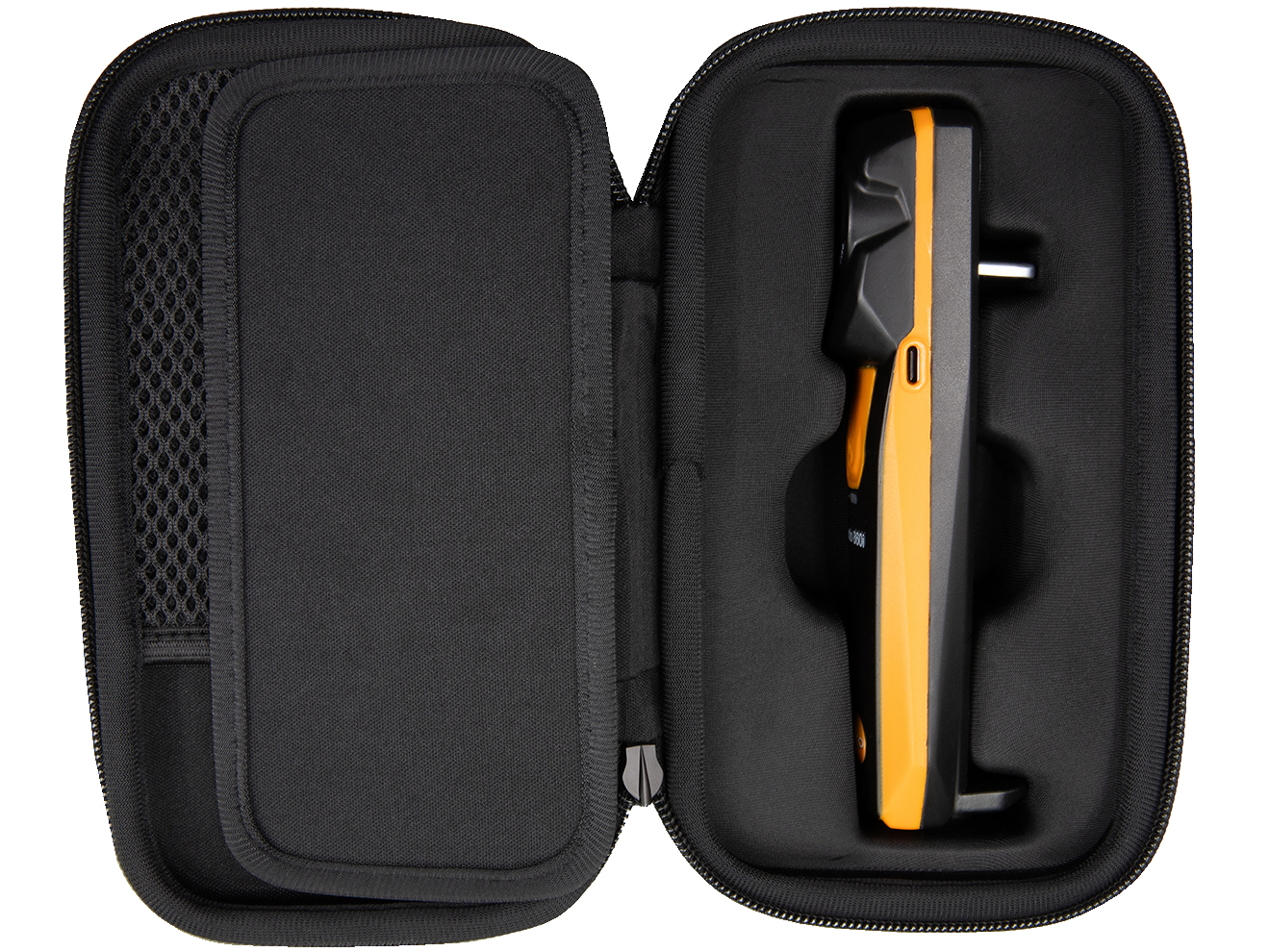

Testo 860i Thermal Imager with Case

Starting at $450.00

View Company Reviews

Manufactured

By Testo

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
FREE Accessories Included

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Wireless thermal imaging via smartphone and the free Testo Smart App
DeltaHeat, DeltaCool, and humidity mode for fast, application-specific analysis
Full radiometric data with hot/cold spots, Delta T, and area measurements
Infrared resolution: 256 x 192 pixels
Measuring range: -4 to 662 °F
Field of view / min. focusing distance: 48° x 36° / 1 ft
Geometric resolution (IFOV): 3.3 mrad
Thermal sensitivity (NETD): 50 mK
Image refresh rate: 9 Hz
Charging interface: USB-C
Connection: Bluetooth 4.0, WLAN (IEEE 802.11b/g/n)
Protection class: IP54-rated

The Testo 860i wireless thermal imager delivers precise thermal imaging directly to your smartphone or tablet. It connects seamlessly via Bluetooth and WLAN to the intuitive Testo Smart App, which displays, analyzes, and stores high resolution infrared images (256 x 192 pixels) and measurement data. Designed for field professionals, the 860i features rugged IP54-rated housing and easy one-handed operation, making it ideal for fast, reliable thermal inspections on the go.

It captures full radiometric images and supports functions such as DeltaHeat for identifying supply and return differences in heating systems, DeltaCool for evaluating cooling efficiency in air conditioning and refrigeration systems, and humidity mode for assessing mold risk in buildings.

The Smart App also provides hot and cold spot analysis, Delta T, area measurements, and customizable color display options such as rainbow, sepia, and humidity palettes. The device runs on a rechargeable battery with up to two hours of runtime and charges quickly via USB-C. The Smart App integrates with other Testo tools, such as clamp meters and thermohydrometers, for complete system diagnostics in HVAC, building maintenance, industrial inspections, and facility management.
