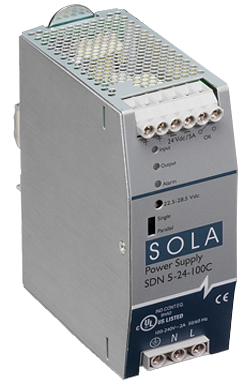

SolaHD SDN-C Performance DIN Rail Series Power Supply
Accepts Universal voltage 86 to 264VAC, 50/60Hz input.
Overview
Features
- Compact packaging to save space on the DIN rail
- 14 to 158°F temperature range
- No derating until after 140°F
- Single phase models meet SEMI F47 sag immunity
- Active power factor correction
- Class I Zone 2 hazardous locations rating
- ATEX approved on select models
- User adjustable output voltage accessible via front face
- Parallel capability standard
- Industrial grade design
- High MTBF means high reliability and long life
- Highly efficient switching technology
- Conformal coating option for particularly challenging environments available for certain models
- Certifications:
- Class I Zone 2
- ATEX
- IECEx
- ExEAC
- T4 hazardous location code
- ABS
- DNV-GL
Description
The SolaHD SDN-C Performance DIN Rail Series Power Supply is compact and provides up to 960W of output power in both single and three phase models. The power supply features diagnostic LEDs, sag immunity, power factor correction and universal voltage. The visual diagnostic LED provides input and output status at a glance, and the PowerBoost overload capability starts high inrush loads without foldback or shutdown, and allows designers to save money by sizing for peak loads.
The industrial grade design includes a metal enclosure with small vents to keep small parts from falling in. A patented durable mounting clip is designed to withstand 40G of shock without falling off the rail. A DC OK signal allows remote notification of DC power loss to the controller. Voltage is adjustable, with the flexibility to set DC voltage precisely to application requirements.
Applications
- Industrial/machine control
- Process control
- Conveying equipment
- Material handling
- Vending machines
- Packaging equipment
- Amusement park equipment
- Semiconductor fabrication equipment
