Name: Rion AS-70 Waveform Analysis Software
Price: 2595.0 USD
Availability: BackOrder

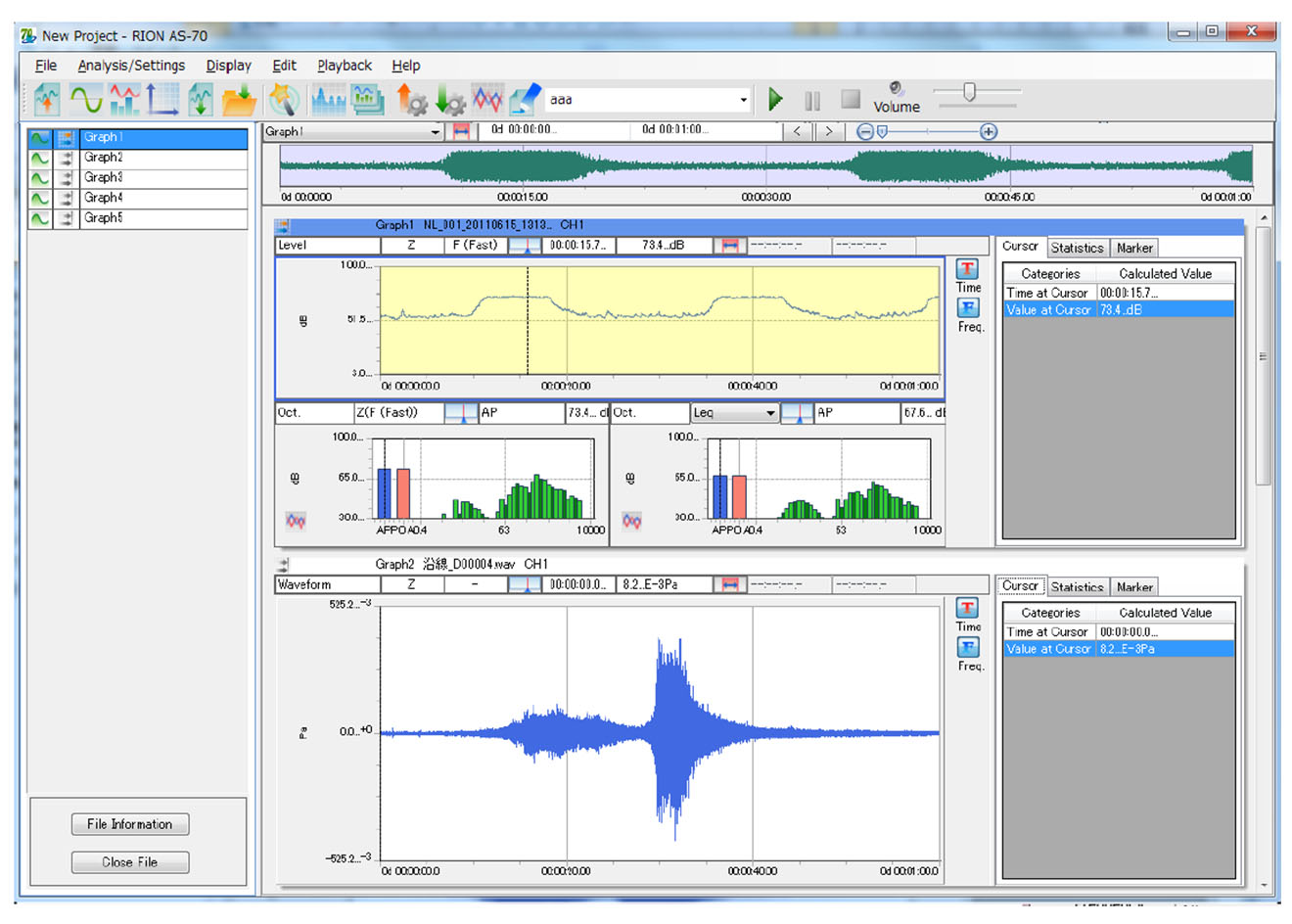

Rion AS-70 Waveform Analysis Software (Example of software output)

$2,595.00

Effective May 1st, 2025, Rion has added a 10% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

AS-70

Manufactured

By Rion

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-4 weeks

Product Specs

Features

Drag-and-drop waveform file display
Simultaneous analysis of multiple files
User marker function
Digital volume control
Wizard function for first-time users available
Template function for setting up repeatable processing sequences
Processing time:
- Operational environment: CPU Cores i5 3.2 GHz, 4 GB
- Quantization: 16 bit, 4 channels
- Sample data file recorded time: 1h 24min
- Sample processing time: 6min

This product is an accessory for the following products:

Rion DA-21 Data Recorder

Supports up to 32 GB high-capacity SD cards.

$5,550.00

The Rion AS-70 Waveform Analysis Software provides a fast processing speed to provide analysis of large data volumes, including simultaneous analysis of multiple files. WAVE files from different sources, such as a sound level meter and data recorder, and from multiple locations can be loaded and analyzed simultaneously. A variety of operations can be performed easily and with high processing speed, such as graphical display, level processing, sound playback and FFT and octave band analysis. The results can be saved in various formats.

Settings can be made globally or individually for each graph. When operating with multiple graphs, the analysis type (octave band analysis, FFT analysis) and analysis parameters can be set either globally or for each graph separately.

Markers with comments can be placed on the time graph; 10 types of marker names are provided.

When playing back data with low recording level (whether because level range was too big, or bit word length too long), the volume may be very low, making the sound difficult to hear. The digital volume control lets you play such files at a higher volume.

Spec Sheets

Rion AS-70 Waveform Analysis Software datasheet (651 KB)

Need Help? Call a Vibration (Cal) engineer at 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Rion AS-70 Waveform Analysis Software

Functions include graph display, level processing, frequency analysis (FFT, octave band), file output, and playback.
