E+H Nivotester FTC325 Point Level Switch

Point level switch with signal circuit for connection to a capacitance sensor.

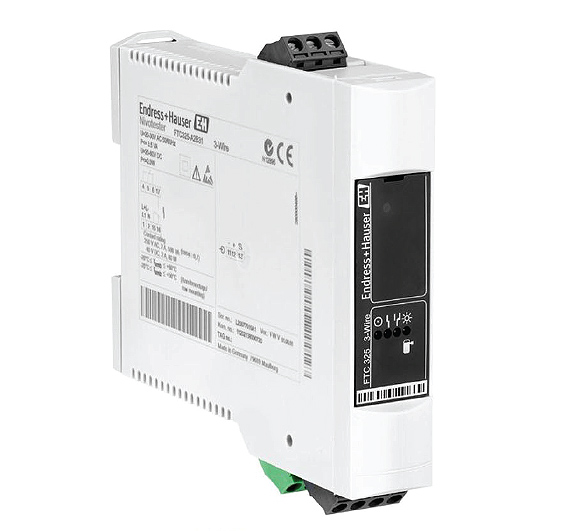

E+H Nivotester FTC325 Point Level Switch 3-Wire Option

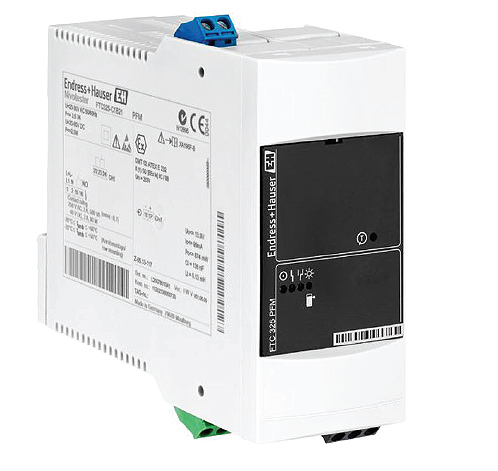

E+H Nivotester FTC325 Point Level Switch PFM Option

Starting at $1,023.82

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Ambient temperature: Serial montage -4 to 122°F (-20 to 50°C)
Supply / Communication: 85V to 253V AC (20V to 60V DC)
2 relay communication
Two-point control (Δs with 3-Wire option)
Pluggable terminal blocks
FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function
Certificates / Approvals: ATEX, IEC Ex, FM, CSA, TIIS
Safety approvals: Overfill protection WHG

The E+H Nivotester FTC325 Point Level Switch is used for point level detection in tanks containing liquids and silos containing bulk solids. Suitable for capacitance level probes, and can be applied in hazardous areas of category ATEX II (1) GD. Additionally the FTC325 contains overfill prevention for tanks containing flammable or non-flammable fluids hazardous to water, and dry running protection for pumps. Additional features include pluggable terminal blocks, compact housing, and a point level and alarm relay. The compact housing design allows for series mounting on a standard DIN rail in the cabinet. Calibration can be done using operating keys. Configurable options for this device include a 2-wire PFM or a 3-wire. The PFM option contains a test/correction key.

E+H Nivotester FTC325 Point Level Switch applications:

Point level detection in liquid tanks and bulk solids silos, also in hazardous areas
For sensors in Zone 0 or Zone 20
Liquid detection in pipes for dry-running protection of pumps
Overfill prevention

Spec Sheets

E+H Nivotester FTC325 Point Level Switch Datasheet (593 KB)

Manuals

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FTC325-A2A31 Show Configuration	$670.08	2 in stock
FTC325-A2B31 Show Configuration	$670.08	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
