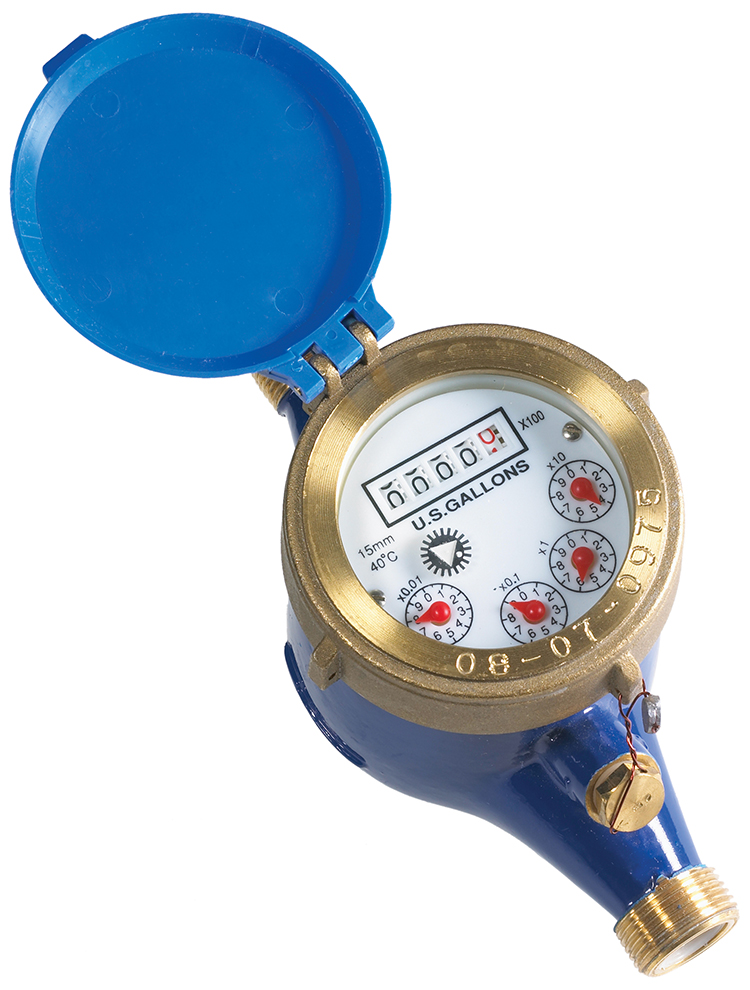

FloCat Multi-Jet Water Meter
Multi-jet design water meter, cast bronze for cold or hot water, plastic body for cold water.
Overview
Features
- Maximum temperature:
- Cold water meter: 105°F (40°C)
- Hot water meter: 194°F (90°C)
- 150psi maximum operating pressure
- Materials:
- Body: FRP-reinforced polyamide (cold water meter) or cast bronze (cold or hot water meter)
- Internals: Engineered thermoplastic
- Magnet: Alnico
- ±1.5% of reading accuracy
- Reed switch sensor
- 20mA maximum current
- 24Vdc or Vac maximum voltage
- 12ft (4m) standard cable (2000ft max run)
Description
The FloCat ACS Series water meter uses the widely accepted multi-jet principle, as a gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power.
The ACS Series meter models are available for cold or hot water use.
Documents
Spec Sheets
- FloCat ACS Water Meter - Cold Water, Bronze Body Model Datasheet (1.4 MB)
- FloCat ACS-H Water Meter - Hot Water, Bronze Body Model Datasheet (1.5 MB)
- FloCat ACS-NM Water Meter - Cold Water, Plastic Body Model Datasheet (2.0 MB)
Manuals
- FloCat ACS Water Meter - Cold Water, Bronze Body Model Manual (564 KB)
- FloCat ACS-H Water Meter - Hot Water, Bronze Body Model Manual (742 KB)
- FloCat ACS-NM Water Meter - Cold Water, Plastic Body Model Manual (369 KB)
