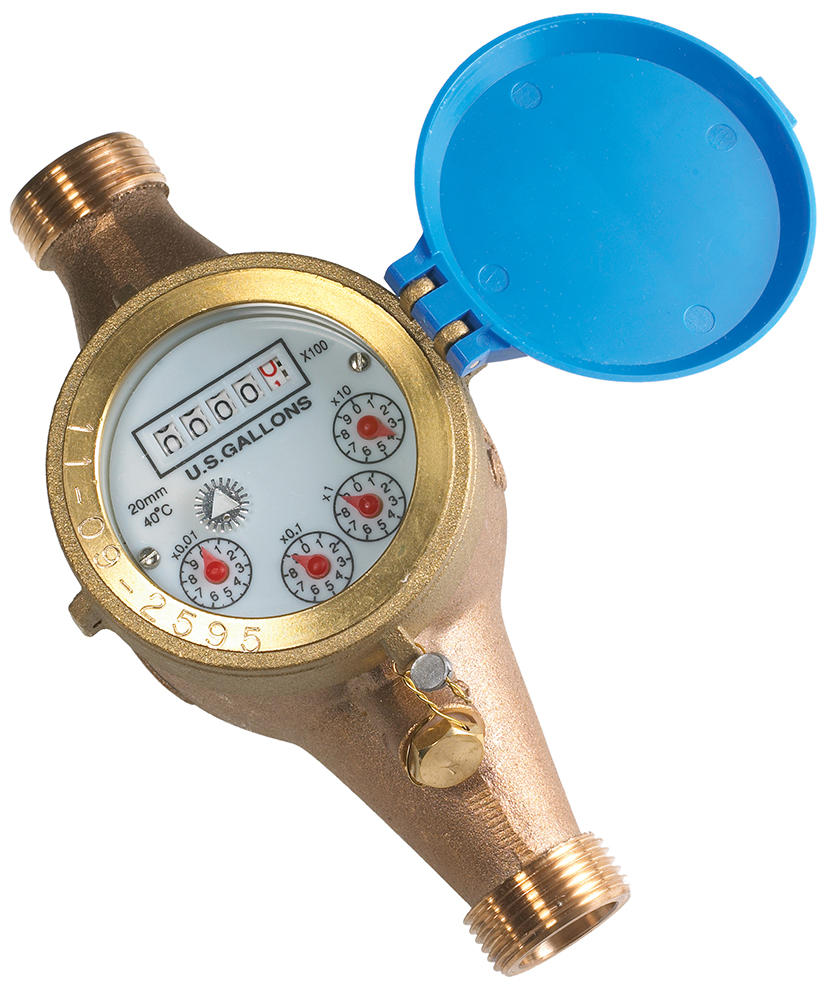

AccentPDIR GLF Series Multi-Jet Water Meter
Multi-jet design water meter, EcoBrass body, NSF61/ANSI372-certified lead-free.
Overview
Features
- Certified to NSF/ANSI 61
- 105°F (40°C) maximum temperature
- 150psi maximum operating pressure
- Materials:
- Body: EcoBrass bronze alloy
- Internals: Engineered thermoplastic
- Magnet: Alnico
- ±1.5% of reading accuracy within Qt-Qmax
- Reed switch sensor
- 20mA maximum current
- 24Vdc or Vac maximum voltage
- 12ft (4m) standard cable (2000ft max run)
Description
The AccentPDIR GLF Series multi-jet water meter uses the widely accepted multi-jet principle. The GLF meter's gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power.
Documents
Applications
This product can be used in the following applications:
