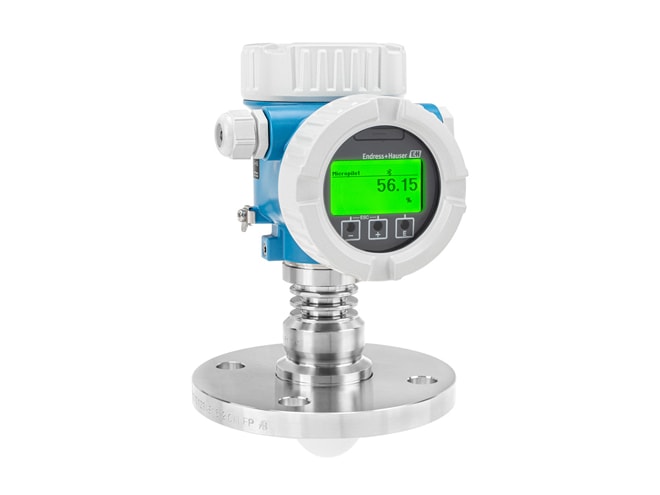

E+H Micropilot FMR62B Radar Sensor

Name: E+H Micropilot FMR62B Radar Sensor
Price: 4250.62 USD
Availability: InStock

Designed for continuous, non-contact level measurement of liquids, pastes and sludges.

Starting at $4,250.62

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

PTFE antenna or ceramic sealed high-temperature antenna
Flange process connections
80m (262ft) maximum measuring range
–321 to 842°F (–196 to 450°C) temperature
–1 to 160bar (–14.5 to 2,321psi) pressure
±1mm (±0.04in) accuracy
80GHz W-band
Commission, operate, and troubleshoot with Bluetooth capability

The E+H Micropilot FMR62B radar sensor is part of the new generation of 80 GHz radar sensors. It is used for continuous non-contact level measurement in challenging liquid applications. It masters process requirements like high temperatures, high process pressure, and changing media. The FMR62B features guided SIL-locking, verification, and proof testing for reduction of systematic errors. It also offers reliable measurement thanks to strong signal focusing, even with multiple internal fixtures. An intuitive user interface enables easy, guided commissioning. Heartbeat Technology offers verification and monitoring functions to identify anomalies for increased safety and productivity.

The Micropilot FMR62B is suitable for free-space applications up to 80m and offers high beam focusing for vessels with many internal fittings.

Spec Sheets

E+H Micropilot FMR62B Radar Sensor Datasheet (1.7 MB)

Manuals

E+H Micropilot FMR62B Radar Sensor Manual (1.8 MB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H FHX50 Remote Display

Transmitter electronics for radar level transmitters and vortex flow meters.

Mfg. has some models in stock

Starting at $757.01

This product can be used in the following applications:

Wireless

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FMR62B-AABAFBHJGMAAADKB Show Configuration	$4,836.20	4 in stock
FMR62B-AABADBHJGNAAAJKB Show Configuration	$6,848.51	1 in stock
FMR62B-C2BAFBHLGMAAADKB Show Configuration	$5,372.16	1 in stock
FMR62B-CCBAEJHJGNAAAHKB Show Configuration	$6,084.10	1 in stock

Base Price:: $4,250.62
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display, Operation: Graphic display with touch control + Bluetooth (+$365.29)
Housing Material: Single compartment, aluminum, coated (+$35.73)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Application: Process temperature -40 to 302°F (-40 to 150°C)
Antenna: Cladded flush mount, PTFE, 50mm/2in (+$184.56)
Process Connection, Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 2" Cl.150, PTFE>316/316L
Seal: PTFE cladded
Language Display: Without
Application Package: Without
Calibration: Without
Service: Without
Test, Certificate, Declaration: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Marking: Without
Tagging: Only available when Tagging selected

Reconfigure

Base Price:: $4,250.62
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART
Display, Operation: Segment display without buttons + Bluetooth (+$265.64)
Housing Material: Single compartment, aluminum, coated (+$35.73)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Application: Process temperature -40 to 302°F (-40 to 150°C)
Antenna: Cladded flush mount, PTFE, 80mm/3in (+$246.08)
Process Connection, Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 8" Cl.150, PTFE>316/316L (+$2,050.44)
Seal: PTFE cladded
Language Display: Without
Application Package: Without
Calibration: Without
Service: Without
Test, Certificate, Declaration: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Marking: Without
Tagging: Only available when Tagging selected

Reconfigure

Base Price:: $4,250.62
Approval: CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I Div.2 Gr. A-D, Cl.I zone 0, AEx/Ex ia IIC T6 Ga (+$351.40)
Output: 2-wire 4-20mA HART
Display, Operation: Graphic display with touch control + Bluetooth (+$365.29)
Housing Material: Single compartment, aluminum, coated (+$35.73)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Application: Process temperature -40 to 392°F (-40 to 200°C) (+$184.56)
Antenna: Cladded flush mount, PTFE, 50mm/2in (+$184.56)
Process Connection, Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 2" Cl.150, PTFE>316/316L
Seal: PTFE cladded
Language Display: Without
Application Package: Without
Calibration: Without
Service: Without
Test, Certificate, Declaration: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Marking: Without
Tagging: Only available when Tagging selected

Reconfigure

Base Price:: $4,250.62
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D, Cl.I zone 0, AEx/Ex ia IIC T6 Ga (+$351.40)
Output: 2-wire 4-20mA HART
Display, Operation: Graphic display with touch control (+$229.95)
Housing Material: Dual compartment, aluminum, coated (+$157.09)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Application: Process temperature -40 to 302°F (-40 to 150°C)
Antenna: Cladded flush mount, PTFE, 80mm/3in (+$246.08)
Process Connection, Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 6" Cl.150, PTFE>316/316L (+$848.96)
Seal: PTFE cladded
Language Display: Without
Application Package: Without
Calibration: Without
Service: Without
Test, Certificate, Declaration: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Marking: Without
Tagging: Only available when Tagging selected

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
