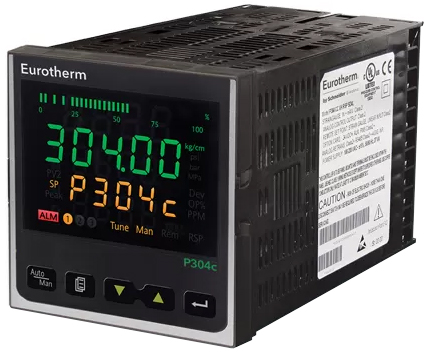

Eurotherm P304 Series Indicator / Controller

Melt pressure indicator and controller with wide range of hardware options for all types of plastic processing including extrusion and injection molding.

Eurotherm P304i Indicator
Eurotherm P304c Controller

Starting at $785.38

View Company Reviews

Manufactured

By Eurotherm

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Manual Product Specs

Features

Easy to integrate and use in new and legacy applications
Fast-acting alarms to protect against overpressure
Responsive, precision PID control with overshoot inhibit
Easy, effective auto-tune
Universal and strain gauge inputs
Second input for differential pressure indication and control
Input types:
- PC304c: 2 x strain gauge, linear 0-10V, 0-20mA
- PC304i: 2 x strain gauge, thermocouple, PT100, PT500, linear 0-10V, 0-20mA
Alarm types: Dev, Differential pressure, Hi, Lo
Supply voltage: 24V DC/AC, 85-264VAC
1/4 DIN panel size
<0.1% PV accuracy
IP55
3-year warranty

The Eurotherm P304 series indicator and controller have a 50ms sample rate to give the fast-acting control and alarm functionality required in the plastics industry. The P304c controller provides outstanding control performance in an affordable package for a wide variety of pressure sensors.

A strain gauge or process linear input is standard, with an optional strain gauge input for differential pressure control, or a universal input for remote setpoint. Up to two opto-isolated DC linear outputs are available for control or retransmission along with one standard logic input for alarm reset/acknowledge or zero calibration of sensor. An additional four logic inputs may be selected for remote activation of functions like auto/manual mode selection and increase/decrease of power output.

A custom, dual-line 5-digit display provides a complete view of the process, and a horizontal bar graph gives clear visual indication of the process input. The status of alarms, outputs, active setpoint, and engineering units are represented with clear beacons on the front of the unit.

The P304 is fully software-configurable using iTools PC configuration and parameter monitoring. iTools provides the ability to edit, store, and ‘clone’ complete controller configurations as well as data logging and process monitoring capability.
