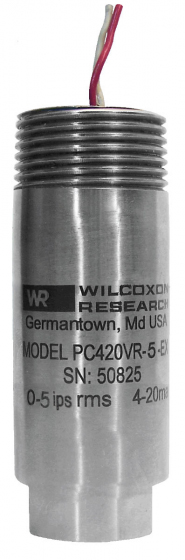

Wilcoxon Sensing Technologies PC420V-EX Series Vibration Transmitter
Explosion-proof vibration transmitter, peak or RMS velocity loop powered sensors for continuous monitoring of vibration levels.
Overview
Features
- 4-20mA output proportional to peak velocity
- 0.5, 1.0, 2.0, 3.0, or 5.0in/sec full-scale measurement range
- ±5% tolerance at full scale
- Frequency response:
- ±10%: 10Hz to 1kHz
- ±3 dB: 4Hz to 2kHz
- ±2% repeatability
- 700Ω max loop resistance at 24VDC
- 250g peak vibration limit
- 2,500g peak shock limit
- Epoxy sealed
- ESD, overload, and reverse wiring protection
- PZT ceramic/shear sensing element
- Top exit, flying leads connector
- Class I, II, III, Div 1, 2; ATEX approvals
Description
The Wilcoxon Sensing Technologies PC420V-EX series vibration transmitter is explosion-proof certified for use in hazardous locations. It provides a 4-20mA output proportional to velocity vibration, allowing for continuous trending of overall machine vibration. This trend data can easily be compared against standard vibration guides, can alert users to changing machine conditions, and can help guide maintenance in prioritizing the need for service. The choice of RMS or peak equivalent output allows the user to choose the sensor that best fits their requirements.
The PC420V-EX is constructed with 303 stainless steel and is corrosion-resistant. It features a 3/8-24 x 3/8 depth tapped hole, SF20-2 mounting stud (included), and 13-foot 18 AWG output leads. The PC420V-EX is manufactured in an ISO 9001 facility.
