Name: Bourdon MAG Series Pressure Gauge
Price: 106.27 USD
Availability: InStock

Bourdon MAG Series Pressure Gauge - 4in

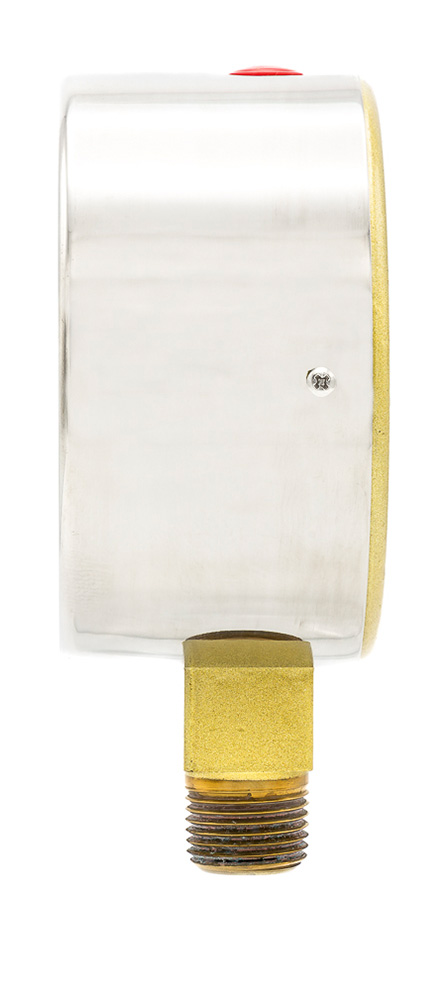

Bourdon MAG Series Pressure Gauge - 4in, Side View

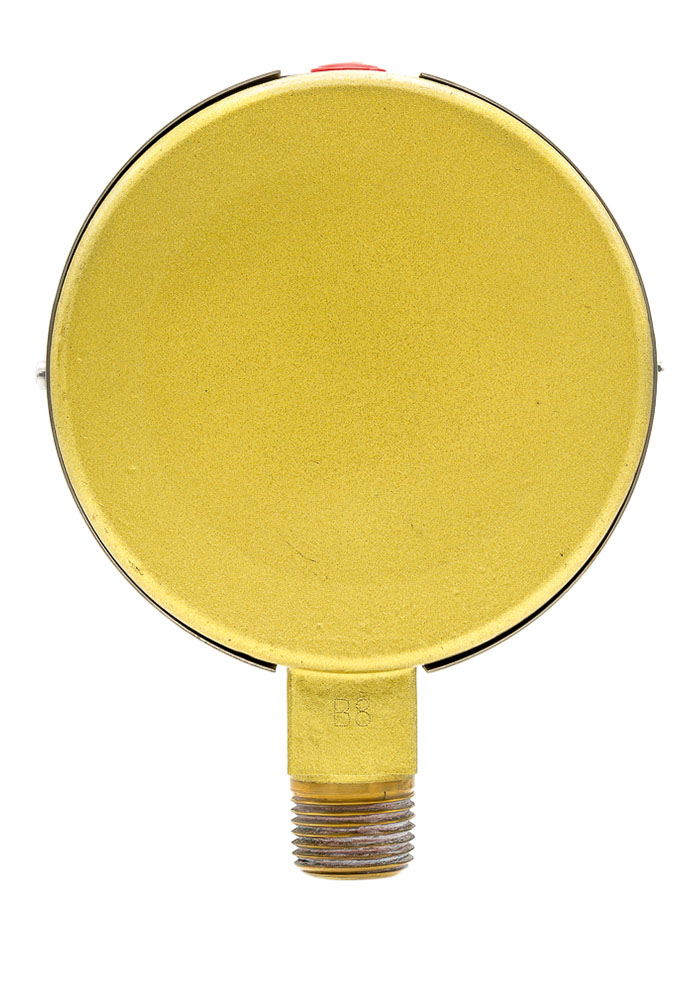

Bourdon MAG Series Pressure Gauge - 4in, Back View

Starting at $106.27

View Company Reviews

Manufactured

By Bourdon

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Size:
- 2.5in (63mm)
- 4in (100mm)
Accuracy:
- 2.5in: ± 2/1/2% of span
- 4in: ± 1% of span
Forged one piece case and socket
Powder coated case
Gold plated or stainless steel cover ring (depending on size selected)
Aluminum black pointer
IP 66 (EN 60529) protection rating

The Bourdon MAG Series pressure gauge is an analog, liquid-filled gauge measuring pressures up to 15,000psi. The liquid fill and restrictor come standard for vibration and pressure pulsation, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil.

The MAG Series features a one piece, forged brass case and socket, and has copper alloy process connection, bourdon tube, and restrictor. The 2.5in (63mm) gauge size has a gold plated ABS cover ring and a standard accuracy of ± 2/1/2% of span, while the 4in (100mm) size has a polished stainless steel cover ring and a standard accuracy of ± 1% of span. Available process connections include 1/4 or 1/2in NPT.

Applications

Hydraulic pump systems
Compressors
Oil tank batteries
Oil field pumpjacks
Fire trucks
Mobile hydraulics

Spec Sheets

Bourdon MAG Series Pressure Gauge Datasheet (268 KB)

Manuals

Bourdon MAG Series Pressure Gauge Manual (970 KB)

Manufacturer Stock

Part Number	Nominal Size	Mounting Type	Process Connection	Liquid Filling	Pressure Range	Price	Available
MAG3-D52.H27 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 600psi	$88.60	3043 in stock
MAG3-D52.H22 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 160psi	$88.60	2116 in stock
MAG3-D52.H21 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 100psi	$88.60	1513 in stock
MAG3-D52.H25 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 300psi	$88.60	1183 in stock
MAG3-D52.H31 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 1,500psi	$105.27	945 in stock
MAG3-D52.H30 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 1,000psi	$105.27	658 in stock
MAG5-D62.H25 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 300psi	$202.90	560 in stock
MAG3-D52.H23 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 200psi	$88.60	465 in stock
MAG3-D52.H17 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 30psi	$88.60	464 in stock
MAG5-D62.H34 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 3,000psi	$229.37	437 in stock
MAG3-D52.H19 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 60psi	$88.60	432 in stock
MAG5-D62.H26 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 400psi	$202.90	421 in stock
MAG5-D62.H30 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 1,000psi	$229.37	397 in stock
MAG5-D62.H23 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 200psi	$202.90	348 in stock
MAG5-D62.H27 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 600psi	$202.90	300 in stock
MAG3-D52.H26 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 400psi	$88.60	294 in stock
MAG3-D52.H34 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 3,000psi	$105.27	293 in stock
MAG5-D62.H19 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 60psi	$202.90	290 in stock
MAG5-D62.H22 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 160psi	$202.90	282 in stock
MAG5-D62.H31 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 1,500psi	$229.37	240 in stock
MAG3-D52.H75 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	-30inHg to 30psi	$88.60	179 in stock
MAG5-D62.H17 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 30psi	$202.90	168 in stock
MAG3-D52.H15 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 15psi	$88.60	143 in stock
MAG5-D62.H21 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 100psi	$202.90	108 in stock
MAG3-D52.H40 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 10,000psi	$112.33	100 in stock
MAG3-D52.H59 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	-30inHg to 0psi	$88.60	84 in stock
MAG5-D60.H40 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	Dry	0 to 10,000psi	$268.57	84 in stock
MAG3-D50.H2C Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	Dry	-30inHg to 60psi	$82.10	42 in stock
MAG5-D62.H40 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 10,000psi	$275.67	42 in stock
MAG3-D52.H82 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	-30inHg to 300psi	$88.60	36 in stock
MAG5-D62.H75 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	-30inHg to 30psi	$202.90	30 in stock
MAG3-D52.H81 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	-30inHg to 220psi	$88.60	21 in stock
MAG3-D50.H17 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	Dry	0 to 30psi	$82.10	18 in stock
MAG5-D60.H75 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	Dry	-30inHg to 30psi	$195.80	18 in stock
MAG3-D52.H2C Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	-30inHg to 60psi	$88.60	17 in stock
MAG3-D52.H78 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	-30inHg to 100psi	$88.60	16 in stock
MAG3-D50.H75 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	Dry	-30inHg to 30psi	$82.10	12 in stock
MAG5-D62.H15 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	0 to 15psi	$202.90	12 in stock
MAG3-D52.H79 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	-30inHg to 150psi	$88.60	11 in stock
MAG3-D50.H59 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	Dry	-30inHg to 0psi	$82.10	10 in stock
MAG3-F52.H22 Show Full Configuration	2.5in (63mm)	Back connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 160psi	$102.97	9 in stock
MAG3-D50.H26 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	Dry	0 to 400psi	$82.10	4 in stock
MAG5-D60.H31 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	Dry	0 to 1,500psi	$222.27	4 in stock
MAG3-D52.H38 Show Full Configuration	2.5in (63mm)	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	0 to 6,000psi	$105.27	3 in stock
MAG5-D60.H34 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	Dry	0 to 3,000psi	$222.27	3 in stock
MAG5-D60.H17 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	Dry	0 to 30psi	$195.80	2 in stock
MAG5-D60.H25 Show Full Configuration	4in (100mm)	Bottom connection	1/2in NPT	Dry	0 to 300psi	$195.80	1 in stock
