Name: Bourdon MEX5 and MEM5 Pressure Gauge
Availability: InStock

Bourdon MEX5 and MEM5 Pressure Gauge — Bourdon MEX5 Pressure Gauge

Bourdon MEX5 Pressure Gauge
Bourdon MEX5 Pressure Gauge - Side View

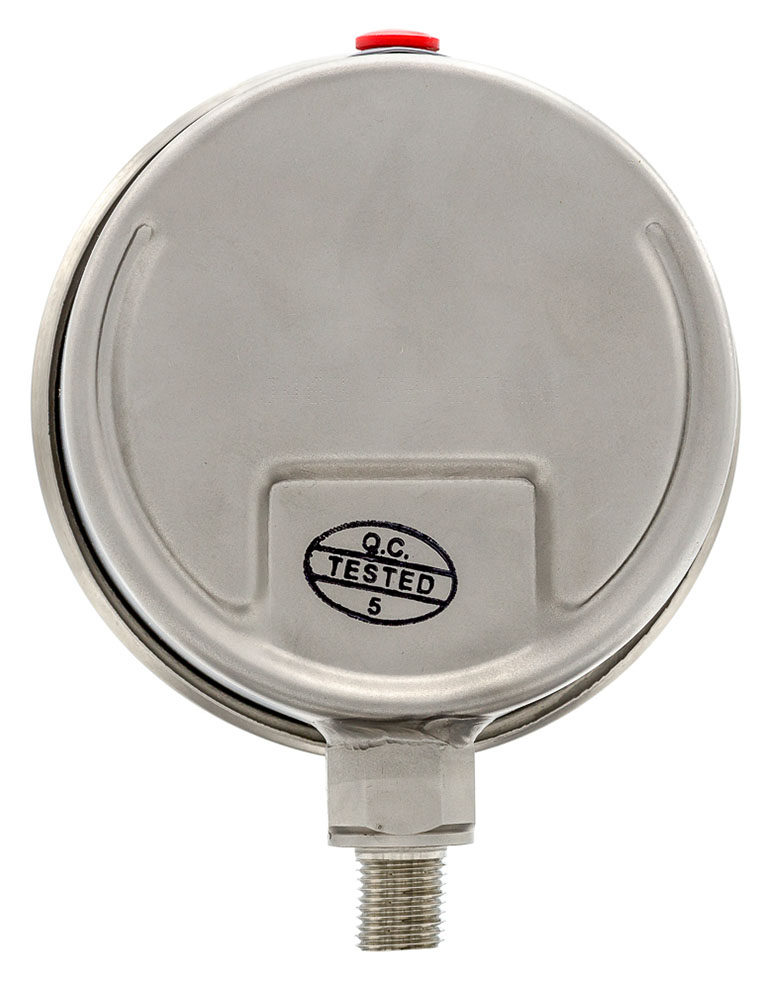

Bourdon MEX5 Pressure Gauge - Back View

Select options for pricing

View Company Reviews

Manufactured

By Bourdon

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

3.94in (100mm) nominal size
For corrosive gases and liquids
Stainless steel or Monel wetted parts
Dry and liquid-filled versions
Lloyd's Register approval
IP 65 (EN 60529) protection rating
ATEX II2GDc-IM2c option

The Bourdon MEX5 Pressure Gauge is an analog, bourdon tube gauge designed for use with corrosive gases and liquids. Pressure ranges are available from vacuum to 20,000psi, including compound and metric ranges. With a nominal size of 3.94in (100mm), the gauge features a stainless steel case, stainless steel or Monel bourdon tube and process connection, and a stainless steel bezel ring.

The Bourdon MEX5 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil. Standard accuracy is ± 1% (Class 1 according to EN 837-1). Multiple process connection options are available, including M20 x 1.5, up to 3/8in NPT, and up to G 3/8in.

Applications

Laboratory and medical
Oil and gas
Food and beverage
Energy
Transportation and logistics
Water and waste water
Machinery

Spec Sheets

Manuals

Bourdon MEX5 Pressure Gauge Manual (970 KB)

Manufacturer Stock

Part Number	Case and Bezel Ring Material	Mounting Type	Process Connection	Liquid Filling	Unit of Measurement	Pressure Range	Price	Available
MEX5-D60.H25/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 300psi	Call for pricing	1075 in stock
MEX5-D60.H2C Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	-30inHg to 60psi	Call for pricing	1053 in stock
MEX5-D60.H27/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 600psi	Call for pricing	1032 in stock
MEX5-D62.H34/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 3,000psi	Call for pricing	714 in stock
MEX5-D60.H34/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 3,000psi	Call for pricing	510 in stock
MEX5-D60.H30/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 1,000psi	Call for pricing	492 in stock
MEX5-D60.H22/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 160psi	Call for pricing	433 in stock
MEX5-D60.H21/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 100psi	Call for pricing	305 in stock
MEX5-D60.H31/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 1,500psi	Call for pricing	188 in stock
MEX5-D60.H19/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 60psi	Call for pricing	170 in stock
MEX5-D62.H21/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 100psi	Call for pricing	130 in stock
MEX5-D60.H40/0760 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 10,000psi	Call for pricing	120 in stock
MEX5-D60.H23 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 200psi	Call for pricing	115 in stock
MEX5-D62.H40/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 10,000psi	Call for pricing	84 in stock
MEX5-D60.H17/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 30psi	Call for pricing	82 in stock
MEX5-D60.H59/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	-30inHg to 0psi	Call for pricing	76 in stock
MEX5-D60.H25 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 300psi	Call for pricing	69 in stock
MEX5-D60.H40/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 10,000psi	Call for pricing	65 in stock
MEX5-D50.H40 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 10,000psi	Call for pricing	62 in stock
MEX5-D62.H40 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 10,000psi	Call for pricing	52 in stock
MEX5-D60.H31 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 1,500psi	Call for pricing	40 in stock
MEX5-D60.H79 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	-30inHg to 150psi	Call for pricing	40 in stock
MEX5-B30.B35 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection, front flange, 3 mounting holes	G 1/2in	Dry	bar	0 to 250bar	Call for pricing	39 in stock
MEX5-D60.H17 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 30psi	Call for pricing	39 in stock
MEX5-D60.H27 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 600psi	Call for pricing	38 in stock
MEX5-D60.H22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 160psi	Call for pricing	36 in stock
MEX5-D62.H25/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 300psi	Call for pricing	33 in stock
MEX5-D60.H40 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 10,000psi	Call for pricing	19 in stock
MEX5-D60.H26 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 400psi	Call for pricing	18 in stock
MEX5-460.B27 Show Full Configuration	1.4404 (AISI 316L) stainless steel	Bottom connection	1/2in NPT	Dry	bar	0 to 40bar	Call for pricing	15 in stock
MEX5-D60.H75/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	-30inHg to 30psi	Call for pricing	14 in stock
MEX5-D62.H38/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 6,000psi	Call for pricing	14 in stock
MEX5-460.B79 Show Full Configuration	1.4404 (AISI 316L) stainless steel	Bottom connection	1/2in NPT	Dry	bar	-1 to 9bar	Call for pricing	13 in stock
MEX5-460.B41 Show Full Configuration	1.4404 (AISI 316L) stainless steel	Bottom connection	1/2in NPT	Dry	bar	0 to 1,000bar	Call for pricing	12 in stock
MEX5-D50.H79 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	-30inHg to 150psi	Call for pricing	12 in stock
MEX5-D60.H23/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 200psi	Call for pricing	12 in stock
MEX5-F60.H1D Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection	1/2in NPT	Dry	PSI	0 to 20,000psi	Call for pricing	12 in stock
MEX5-D32.B24 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	G 1/2in	High viscosity glycerin, 99.5%	bar	0 to 16bar	Call for pricing	9 in stock
MEX5-D60.H30 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 1,000psi	Call for pricing	9 in stock
MEX5-D62.H30/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 1,000psi	Call for pricing	9 in stock
MEX5-D62.H75/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	-30inHg to 30psi	Call for pricing	9 in stock
MEX5-A60.B79 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection, 3 back lugs fixing	1/2in NPT	Dry	bar	-1 to 9bar	Call for pricing	8 in stock
MEX5-B50.H34 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection, front flange, 3 mounting holes	1/4in NPT	Dry	PSI	0 to 3,000psi	Call for pricing	8 in stock
MEX5-D30.B22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	G 1/2in	Dry	bar	0 to 10bar	Call for pricing	8 in stock
MEX5-D50.H23/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 200psi	Call for pricing	8 in stock
MEX5-D61.H19/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Low viscosity glycerin/water, 86%	PSI	0 to 60psi	Call for pricing	8 in stock
MEX5-F31.H22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection	G 1/2in	Low viscosity glycerin/water, 86%	PSI	0 to 160psi	Call for pricing	8 in stock
MEX5-B50.H25 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection, front flange, 3 mounting holes	1/4in NPT	Dry	PSI	0 to 300psi	Call for pricing	7 in stock
MEX5-D60.H19 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 60psi	Call for pricing	7 in stock
MEX5-D60.H38/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 6,000psi	Call for pricing	7 in stock
MEX5-A50.B20/0679 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection, 3 back lugs fixing	1/4in NPT	Dry	bar	0 to 6bar	Call for pricing	6 in stock
MEX5-D30.B27 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	G 1/2in	Dry	bar	0 to 40bar	Call for pricing	6 in stock
MEX5-D30.H21 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	G 1/2in	Dry	PSI	0 to 100psi	Call for pricing	6 in stock
MEX5-D51.H40 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Low viscosity glycerin/water, 86%	PSI	0 to 10,000psi	Call for pricing	6 in stock
MEX5-D60.H15/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 15psi	Call for pricing	6 in stock
MEX5-A60.H25 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection, 3 back lugs fixing	1/2in NPT	Dry	PSI	0 to 300psi	Call for pricing	5 in stock
MEX5-A60.H25/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection, 3 back lugs fixing	1/2in NPT	Dry	PSI	0 to 300psi	Call for pricing	5 in stock
MEX5-D20.D26 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	G 1/4in	Dry	kPa	0 to 2,500kPa	Call for pricing	5 in stock
MEX5-D50.H75 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	-30inHg to 30psi	Call for pricing	5 in stock
MEX5-D53.H22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Silicone oil	PSI	0 to 160psi	Call for pricing	5 in stock
MEX5-D60.B24 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	bar	0 to 16bar	Call for pricing	5 in stock
MEX5-D62.H21 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	0 to 100psi	Call for pricing	5 in stock
MEX5-D61.B19 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Low viscosity glycerin/water, 86%	bar	0 to 4bar	Call for pricing	4 in stock
MEX5-D62.H59/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	High viscosity glycerin, 99.5%	PSI	-30inHg to 0psi	Call for pricing	4 in stock
MEX5-D50.H19/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 60psi	Call for pricing	3 in stock
MEX5-D50.H23 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 200psi	Call for pricing	3 in stock
MEX5-D60.B20 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	bar	0 to 6bar	Call for pricing	3 in stock
MEX5-D60.H21 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 100psi	Call for pricing	3 in stock
MEX5-B50.H27 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection, front flange, 3 mounting holes	1/4in NPT	Dry	PSI	0 to 600psi	Call for pricing	2 in stock
MEX5-B60.H34 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection, front flange, 3 mounting holes	1/2in NPT	Dry	PSI	0 to 3,000psi	Call for pricing	2 in stock
MEX5-D50.H30 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 1,000psi	Call for pricing	2 in stock
MEX5-D50.H38 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 6,000psi	Call for pricing	2 in stock
MEX5-D52.H23 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	PSI	0 to 200psi	Call for pricing	2 in stock
MEX5-D60.B26 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	bar	0 to 25bar	Call for pricing	2 in stock
MEX5-D60.H26/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 400psi	Call for pricing	2 in stock
MEX5-D61.H21/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Low viscosity glycerin/water, 86%	PSI	0 to 100psi	Call for pricing	2 in stock
MEX5-D61.H25/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Low viscosity glycerin/water, 86%	PSI	0 to 300psi	Call for pricing	2 in stock
MEX5-G50.H34 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection with clamp	1/4in NPT	Dry	PSI	0 to 3,000psi	Call for pricing	2 in stock
MEX5-A50.B74 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection, 3 back lugs fixing	1/4in NPT	Dry	bar	-1 to 1.5bar	Call for pricing	1 in stock
MEX5-B60.H25 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection, front flange, 3 mounting holes	1/2in NPT	Dry	PSI	0 to 300psi	Call for pricing	1 in stock
MEX5-B60.H25/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection, front flange, 3 mounting holes	1/2in NPT	Dry	PSI	0 to 300psi	Call for pricing	1 in stock
MEX5-D50.B22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	bar	0 to 10bar	Call for pricing	1 in stock
MEX5-D50.D22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	kPa	0 to 1,000kPa	Call for pricing	1 in stock
MEX5-D50.H22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 160psi	Call for pricing	1 in stock
MEX5-D50.H25 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 300psi	Call for pricing	1 in stock
MEX5-D50.H27/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 600psi	Call for pricing	1 in stock
MEX5-D50.H34 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Dry	PSI	0 to 3,000psi	Call for pricing	1 in stock
MEX5-D51.H25/0679 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Low viscosity glycerin/water, 86%	PSI	0 to 300psi	Call for pricing	1 in stock
MEX5-D51.H34/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	Low viscosity glycerin/water, 86%	PSI	0 to 3,000psi	Call for pricing	1 in stock
MEX5-D52.H22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	PSI	0 to 160psi	Call for pricing	1 in stock
MEX5-D52.H22/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	PSI	0 to 160psi	Call for pricing	1 in stock
MEX5-D52.H34/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/4in NPT	High viscosity glycerin, 99.5%	PSI	0 to 3,000psi	Call for pricing	1 in stock
MEX5-D60.B22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	bar	0 to 10bar	Call for pricing	1 in stock
MEX5-D60.H15 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 15psi	Call for pricing	1 in stock
MEX5-D60.H41/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Dry	PSI	0 to 15,000psi	Call for pricing	1 in stock
MEX5-D61.B22 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Low viscosity glycerin/water, 86%	bar	0 to 10bar	Call for pricing	1 in stock
MEX5-D61.H30/0133 Show Full Configuration	1.4301 (AISI 304) stainless steel	Bottom connection	1/2in NPT	Low viscosity glycerin/water, 86%	PSI	0 to 1,000psi	Call for pricing	1 in stock
MEX5-F50.H34 Show Full Configuration	1.4301 (AISI 304) stainless steel	Back connection	1/4in NPT	Dry	PSI	0 to 3,000psi	Call for pricing	1 in stock
