Bourdon MEX2 / MEX3 Pressure Gauge
Industrial gauge with stainless steel or Monel wetted parts measuring pressures up to 15,000psi.
-
Bourdon MEX2 / MEX3 Pressure Gauge - 1.97in -

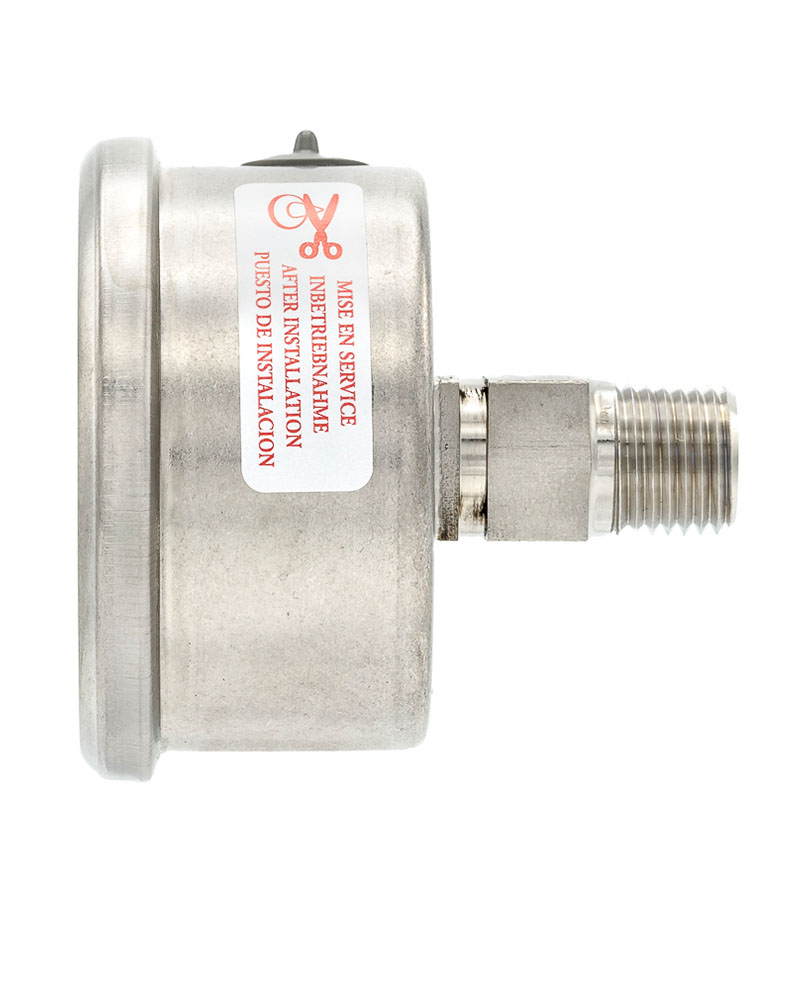

Bourdon MEX2 / MEX3 Pressure Gauge - 1.97in, Side View -

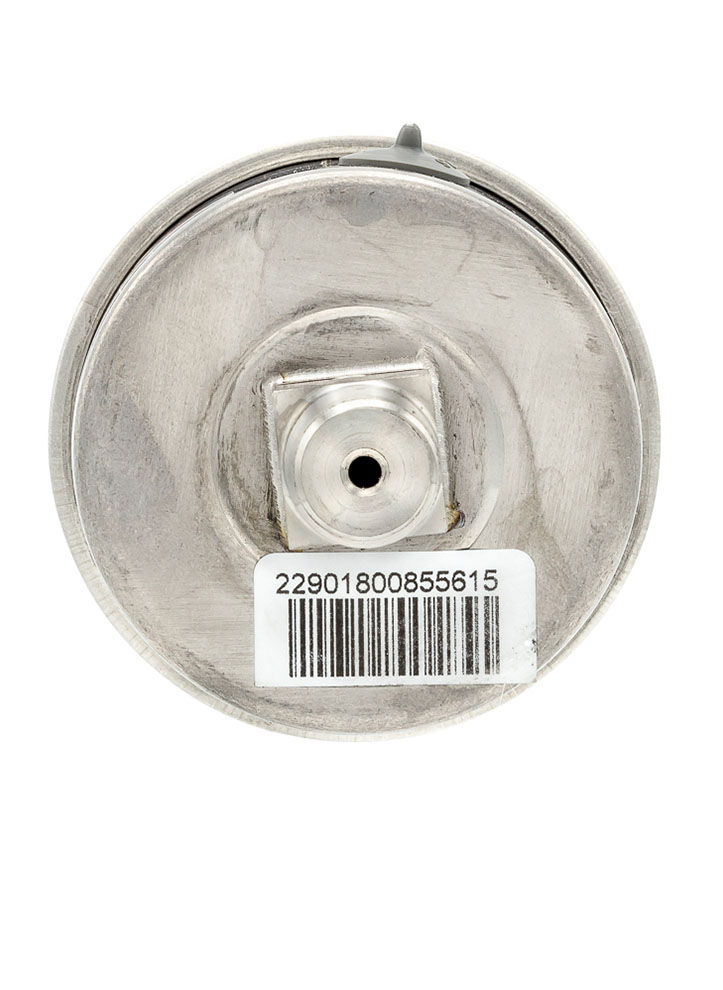

Bourdon MEX2 / MEX3 Pressure Gauge - 1.97in, Back View -

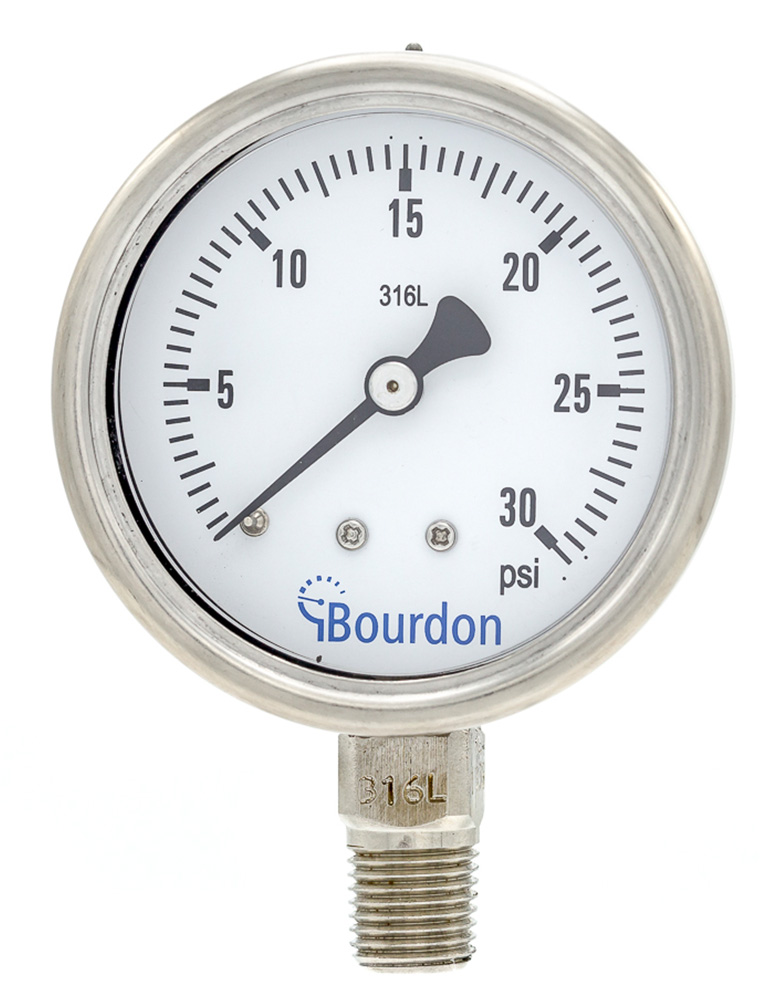

Bourdon MEX2 / MEX3 Pressure Gauge - 2.48in -

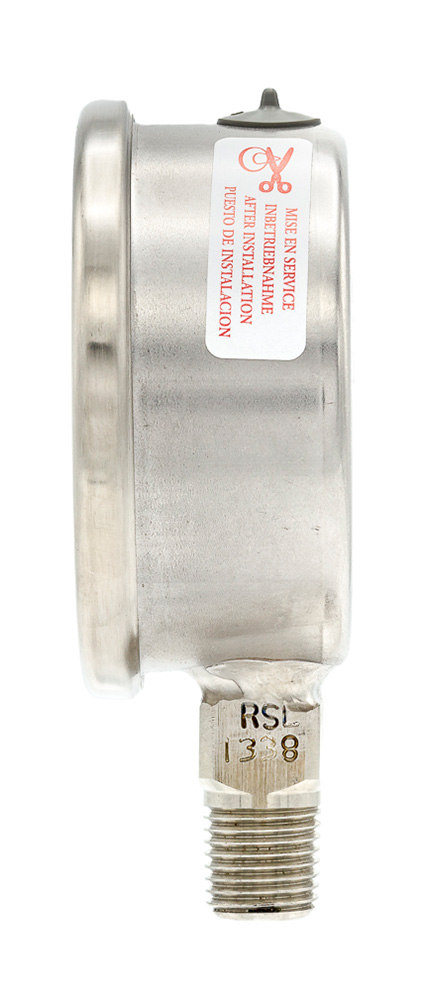

Bourdon MEX2 / MEX3 Pressure Gauge - 2.48in, Side View -

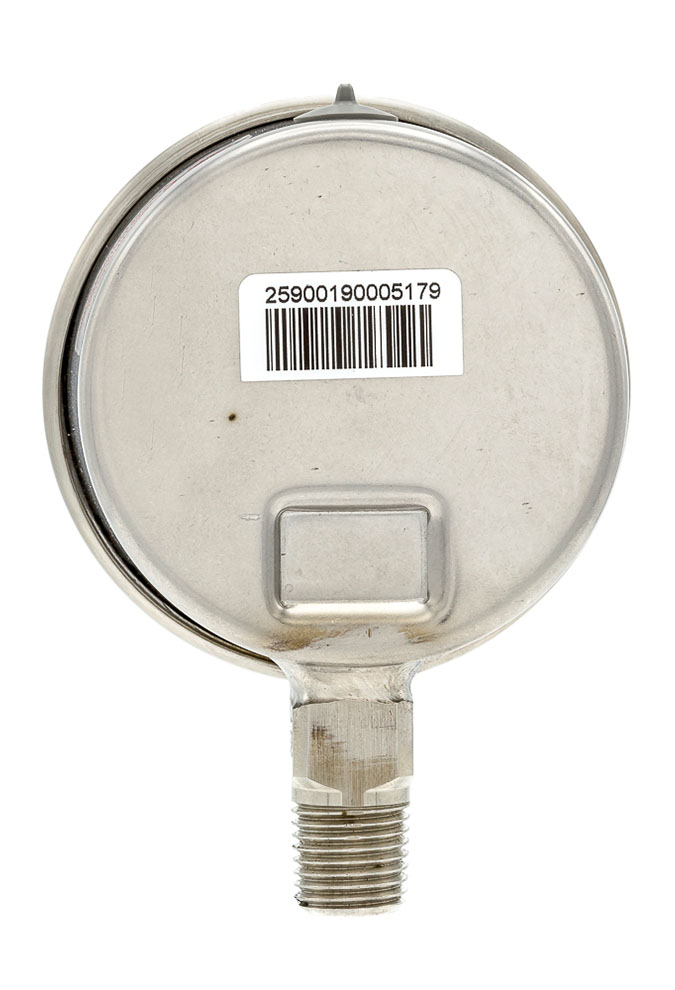

Bourdon MEX2 / MEX3 Pressure Gauge - 2.48in, Back View
Starting at
$204.59
Manufactured
- By Bourdon
Includes
Availability
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Size:
- 1.97in (50mm)
- 2.48in (63mm)
- ± 1.6% accuracy (Class 1.6)
- For corrosive gases and liquids
- Dry and liquid-filled versions
- Lloyd's Register approval
- IP 65 (EN 60529) protection rating
- ATEX II2GDc-IM2c option
Description
The Bourdon MEX2 / MEX3 Pressure Gauge measures pressures up to 15,000psi and is designed for use with corrosive gases and liquids. Available in 1.97 or 2.48in sizes, the gauge features a stainless steel case, stainless steel or Monel bourdon tube and process connection, and a stainless steel bezel ring.
The Bourdon MEX2 / MEX3 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of high viscosity glycerin, low viscosity glycerin/water, or silicone oil. Standard accuracy is ± 1.6% (Class 1.6 according to EN 837-1). Available connections include G 1/4in, 1/4in NPT, and 1/8in NPT.
Applications
- Food and beverage
- Laboratory and medical
- Oil and gas
- Water and waste water
- Energy
- Transportation and logistics
- Machinery
Documents
Accessories
In Stock
Manufacturer Stock
| Part Number | Price | Available | |
|---|---|---|---|
|
MEX3-D50.H75 |
$227.33 | 2412 in stock | |
|
MEX3-D52.H21/0133 |
$197.45 | 1585 in stock | |
|
MEX3-D52.H27/0133 |
$197.45 | 1058 in stock | |
|
MEX3-D52.H25/0133 |
$197.45 | 1026 in stock | |
|
MEX3-D52.H22/0133 |
$197.45 | 948 in stock | |
|
MEX3-D52.H17/0133 |
$197.45 | 717 in stock | |
|
MEX3-D52.H19/0133 |
$197.45 | 564 in stock | |
|
MEX3-D50.H23/0133 |
$190.29 | 427 in stock | |
|
MEX3-D52.H30/0133 |
$217.98 | 420 in stock | |
|
MEX3-D50.H21/0133 |
$190.29 | 410 in stock | |
|
MEX3-D52.H23/0133 |
$197.45 | 318 in stock | |
|
MEX3-D52.H34/0133 |
$217.98 | 262 in stock | |
|
MEX3-D50.H17/0133 |
$190.29 | 231 in stock | |
|
MEX3-D52.H26/0133 |
$197.45 | 231 in stock | |
|
MEX3-D52.H40/0133 |
$235.08 | 137 in stock | |
|
MEX3-D52.H31/0133 |
$217.98 | 100 in stock | |
|
MEX3-D50.H34/0133 |
$210.82 | 80 in stock | |
|
MEX3-D50.H26/0133 |
$190.29 | 74 in stock | |
|
MEX3-D50.H59/0133 |
$252.82 | 48 in stock | |
|
MEX3-G52.H23/0133 |
$217.85 | 44 in stock | |
|
MEX3-D52.H38/0133 |
$217.98 | 32 in stock | |
|
MEX3-F51.H34/0133 |
$223.08 | 32 in stock | |
|
MEX3-D50.B19 |
$164.80 | 30 in stock | |
|
MEX3-F51.H21/0133 |
$202.55 | 27 in stock | |
|
MEX3-D50.H21 |
$164.80 | 26 in stock | |
|
MEX3-D52.H59/0133 |
$259.98 | 26 in stock | |
|
MEX3-F50.H25/0133 |
$195.39 | 25 in stock | |
|
MEX3-D50.B20/0133 |
$190.29 | 24 in stock | |
|
MEX3-D50.B38/0133 |
$210.82 | 24 in stock | |
|
MEX3-D51.H30/0133 |
$217.98 | 24 in stock | |
|
MEX3-F52.H17/0133 |
$202.55 | 23 in stock | |
|
MEX3-F52.H34/0133 |
$223.08 | 21 in stock | |
|
MEX3-450.B20 |
$201.56 | 19 in stock | |
|
MEX3-D50.H22/0133 |
$190.29 | 17 in stock | |
|
MEX3-D50.H25/0133 |
$190.29 | 17 in stock | |
|
MEX3-D50.H38/0133 |
$210.82 | 17 in stock | |
|
MEX3-D51.H15/0133 |
$220.25 | 17 in stock | |
|
MEX3-F50.H27/0133 |
$195.39 | 17 in stock | |
|
MEX3-F51.H17/0133 |
$202.55 | 17 in stock | |
|
MEX3-F51.H25/0133 |
$202.55 | 16 in stock | |
|
MEX2-650.B22/0751 |
$196.51 | 15 in stock | |
|
MEX3-F52.H22/0133 |
$202.55 | 14 in stock | |
|
MEX3-D51.H34/0133 |
$217.98 | 10 in stock | |
|
MEX3-D52.H15/0133 |
$220.25 | 10 in stock | |
|
MEX3-F50.B38/0133 |
$215.92 | 10 in stock | |
|
MEX3-D50.H31/0133 |
$210.82 | 9 in stock | |
|
MEX3-D50.H41/0133 |
$252.82 | 9 in stock | |
|
MEX3-F51.H23/0133 |
$202.55 | 9 in stock | |
|
MEX3-D20.F22 |
$164.80 | 8 in stock | |
|
MEX3-D51.H23/0133 |
$197.45 | 8 in stock | |
|
MEX3-D51.H38/0133 |
$217.98 | 8 in stock | |
|
MEX3-F50.H27 |
$169.90 | 8 in stock | |
|
MEX3-B20.B22 |
$180.10 | 7 in stock | |
|
MEX3-D52.H15 |
$194.76 | 7 in stock | |
|
MEX3-F52.H19/0133 |
$202.55 | 7 in stock | |
|
MEX3-G22.B24 |
$192.36 | 7 in stock | |
|
MEX3-D52.H19 |
$171.96 | 5 in stock | |
|
MEX3-G21.B15 |
$215.16 | 5 in stock | |
|
MEX3-D50.H25 |
$164.80 | 3 in stock | |
|
MEX3-D51.H21/0133 |
$197.45 | 3 in stock | |
|
MEX3-F50.H17 |
$169.90 | 3 in stock | |
|
MEX3-D20.B31 |
$185.33 | 2 in stock | |
|
MEX3-D50.H17 |
$164.80 | 2 in stock | |
|
MEX3-F50.H19/0133 |
$195.39 | 2 in stock | |
|
MEX3-F52.H21/0133 |
$202.55 | 2 in stock | |
|
MEX3-B50.B38 |
$200.63 | 1 in stock | |
|
MEX3-B52.B38 |
$207.79 | 1 in stock | |
|
MEX3-D20.H34/0133 |
$210.82 | 1 in stock | |
|
MEX3-D50.B33 |
$185.33 | 1 in stock | |
|
MEX3-D50.H23 |
$164.80 | 1 in stock | |
|
MEX3-D50.H30/0133 |
$210.82 | 1 in stock | |
|
MEX3-D50.H79 |
$227.33 | 1 in stock | |
|
MEX3-D51.H26/0133 |
$197.45 | 1 in stock | |
|
MEX3-D51.H31/0133 |
$217.98 | 1 in stock | |
|
MEX3-D52.H40 |
$209.59 | 1 in stock | |
|
MEX3-F51.H22/0133 |
$202.55 | 1 in stock | |
|
MEX3-F52.H25/0133 |
$202.55 | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Click here to select options
