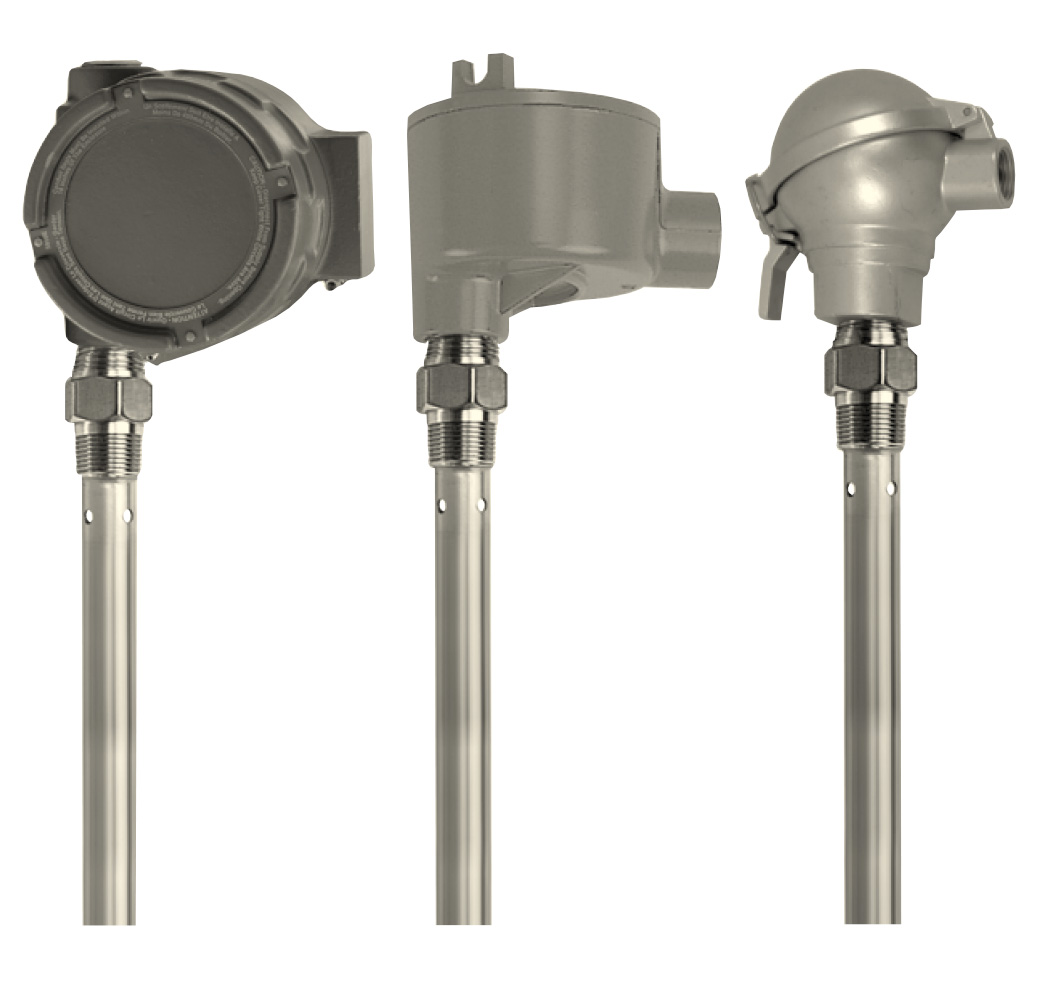

Intempco LTX20 Fuel & Oil Level Transmitter
Capacitance level transmitter designed for fuel & oil level applications.
Overview
Features
- For fuel oil tanks
- Compact 3/4 " NPT concentric tube design
- Accuracy 1% of span for constant dielectric of material
- Tube and inner probe SS316
- For use with metalic and non-metalic tanks
- OEM applications, low cost
- Continous loop powered 4-20mA operation
- Non-interactive zero and span calibration
- 12 to 36 VDC supply voltage
Description
The Intempco LTX20 series fuel capacitance level transmitter is designed to measure level of fuels and oils in metalic and non-metalic tanks. The probe measures level by measuring the change in capacitance as level changes in the tank. The micro- processor based electronics converts this capacitance change into a linear, highly accurate 4-20 mA signal.
The LTX20 includes a standard 4 - 20mA loop powered LTX transmitter, a concentric 0.75 -inch diameter concentric shield with 0.188 - rigid sensor for ranges up to 10 feet. Probe material is SS316. The LTX20 is designed for tanks which have fitting connections of 3/ 4 " NPT or larger and in applications where the liquid is relatively clean or non-clogging.
An excellent application for the LTX20 are stationary or mobile generators. This level sensor is shock resistant and very rugged. There are no moving parts. To isolate for ground loops, a non-conductive reducer ( such as PVC ) can be used between the tank and the 3/4" NPT fitting of the LTX20.
Applications/Process Notes
- Diesel fuels
- Hydraulic oils
- Vegetable oils
- Chemical holding tanks
- MEK and other solvants
- Many other, non-conductive liquids
Do not use with:
- Water and other conductive liquids
- Conductive acids
- Materials corrosive to SS316
