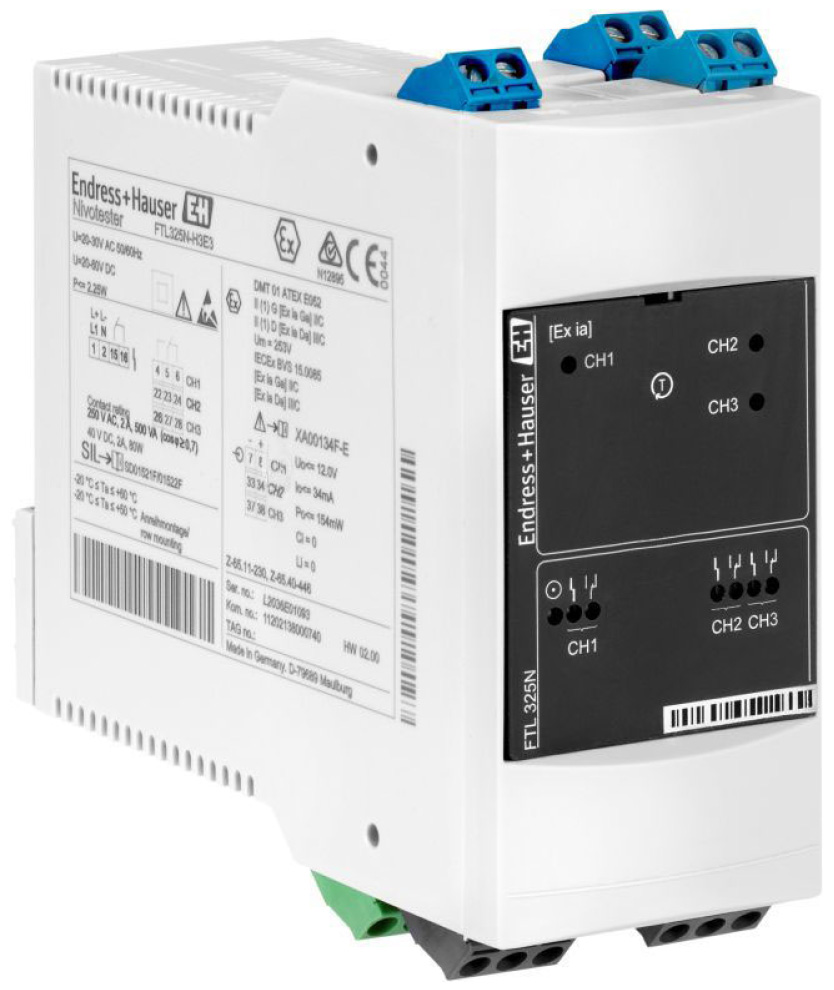

E+H Nivotester FTL325N Level Switch
Switching unit for point level detection in liquid tanks with NAMUR input for rail mounting or single installation.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Ambient temperature:
- Single installation: -20 to 60°C (-4 to 140°F)
- Rail mounting: -20 to 50°C (-4 to 122°F)
- Communication:
- 1 Channel: 1 level SPDT + 1 alarm SPST
- 3 Channel: 3 level SPDT + 1 alarm SPST
- Power supply options:
- 24V AC
- DC/230VAC
- ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, and EAC approvals
Description
The E+H Nivotester FTL325N level switch is designed for point level detection in liquid tanks and bulk solids silos, also in in hazardous areas. The FTL325N is also suitable for overfill prevention in tanks with combustible or non-combustible liquids harmful to water. It features two-point control and point level detection in one switching unit.
The FTL325N is ideal for application in safety systems with functional safety requirements up to SIL 2 in accordance in IEC 61508 when using the Liquiphant M/S with electronic insert FEL56 and FEL58, Liquiphant FTL41 with electronic insert FEL48, Liquiphant FTL51B, FTL62, FTL64 with electronic insert FEL68 or Soliphant M with electronic insert FEM58.
Documents
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
| Part Number | Price | Available | |
|---|---|---|---|
|
FTL325N-S1A1 |
$226.47 | 10 in stock | |
|
FTL325N-O3A3 |
$367.59 | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
