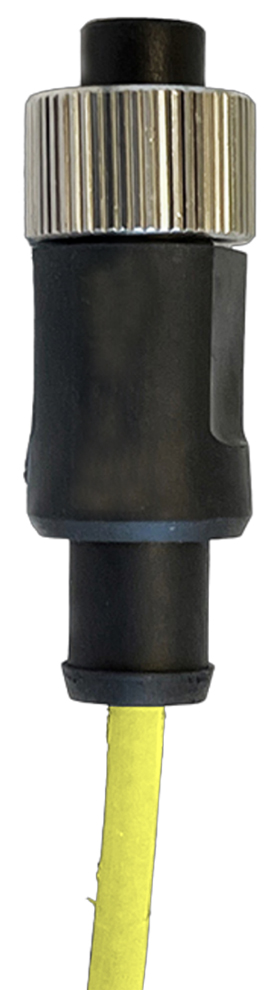

Wilcoxon Sensing Technologies R6W Series Cable

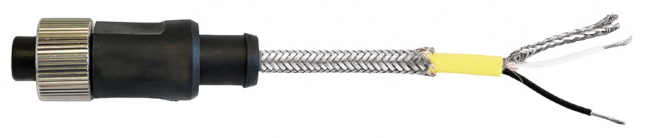

High temperature (up to 200°C), twisted pair cable assembly with Teflon jacket, MIL-C-5015 connector and blunt cut cable end.
-
Some models in stock. View available part numbers.
Overview
Features
- MIL-C-5015, 2-socket, molded, isolated shield connector
- 27pF/ft capacitance
- -80 to 200°C (-112 to 392°F) temperature range
- Braided shield or foil shield with drain wire
- Straight or right angle connector
- IP67 rated
- Available in 16, 32, and 64ft lengths
This product is an accessory for the following products:
Documents
In Stock
Part Number | Price | Available | |
---|---|---|---|
R6W-0-J9T2A-16 |
$75.38 | 15 in stock | |
R6W-0-J9T2A-32 |
$91.54 | 15 in stock | |
R6W-0-J9T2A-64 |
$156.15 | 3 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5-7 business days". Click here to select options
