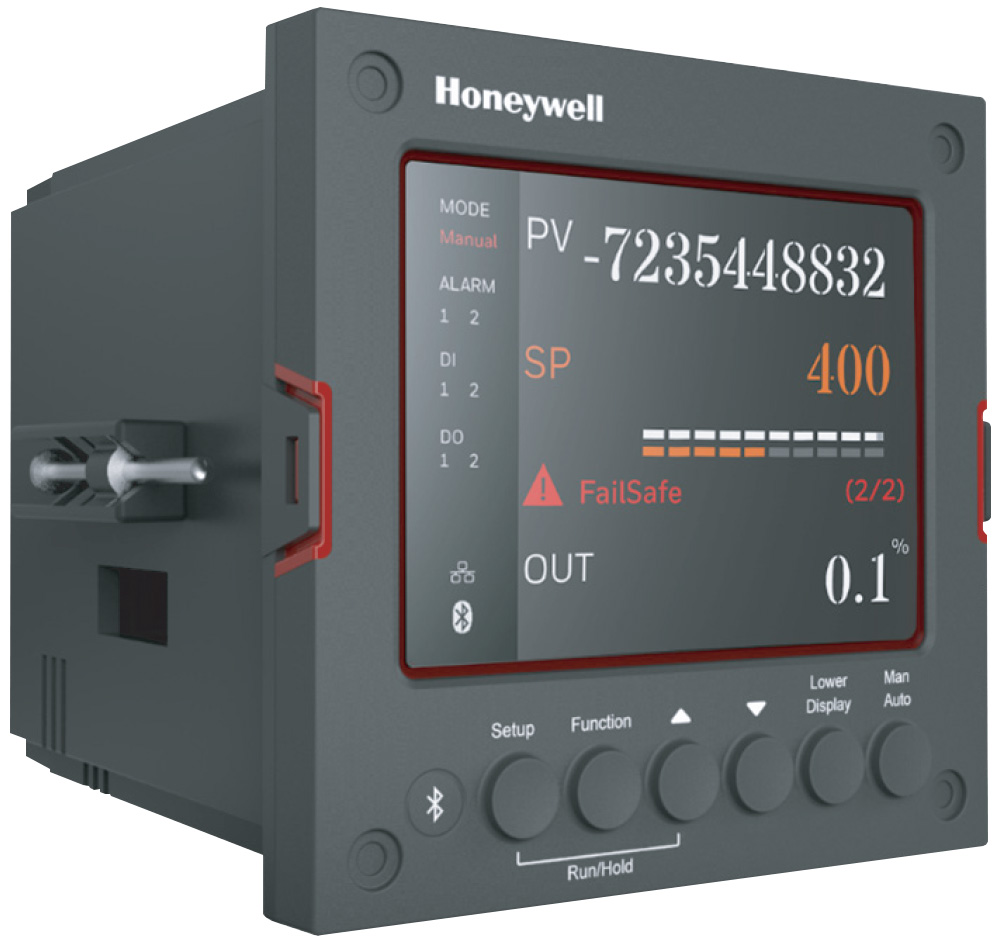

Honeywell UDC2800 Universal Digital Controller
Panel-based temperature controller with Bluetooth and remote connectivity, app-based configuration and backwards compatibility.
- By Honeywell
-
Some models in stock. View available part numbers.
Overview
Features
- ±0.15% of full scale typical accuracy (±1 digit for display)
- Can be field calibrated to ±0.05% of full scale typical
- 1/4 DIN size
- 2 universal analog inputs
- 2 digital inputs
- 100ms scanning rate
- Up to 4 output types
- Ethernet and Modbus communication
- NEMA4X and IP66 front face protection
Description
The Honeywell UDC2800 Universal Digital Controller supports up to 64 setpoint segments and four PID sets, with RTD, TC, mV, mA, RH, carbon, and oxygen inputs as standard, as well as two universal analog inputs, each sampled ten times per second.
The first, or Process Variable input, can be one of the various thermocouple, RTD, or linear actuations. Linear actuations have thermocouple, RTD characterization capability as a standard feature. Linear actuations also have square root capability. The optional second input is isolated and accepts the same actuations as the first input.
The UDC2800 provides for single loop control of furnaces, ovens, boilers, heaters, environmental chambers, cookers, dryers, and freezers. The instrument is ASM2750F aerospace standard compliant, as well as NEMA4X standard for food and beverage wash downs, and IP66 certified. The instrument is backwards compatible, retaining the same 1/4 DIN form factor, terminal arrangement and back panel as previous UDC2500 and UDC3200 models.
Documents
Spec Sheets
- Honeywell UDC2800 Universal Digital Controller Datasheet (1.2 MB)
- Honeywell UDC2800 Limit Controller Datasheet (755 KB)
Manuals
- Honeywell UDC2800 Process Controller Quick Start Guide (1.9 MB)
- Honeywell UDC2800 Limit Controller Quick Start Guide (236 KB)
- Honeywell UDC2800 Universal Digital Controller Manual (22.9 MB)
- Honeywell UDC2800 Universal Digital Limit Controller Manual (22.5 MB)
Other
- Honeywell UDC2800 Universal Digital Controller Order Guide (249 KB)
- Honeywell UDC2800 Universal Digital Controller Spare Parts List (5.2 MB)
Links
In Stock
| Part Number | Price | Available | |
|---|---|---|---|
|
DC2800-E0-0L0-100-000-00-0 |
$757.00 | 3 in stock | |
|
DC2800-C0-0S0-200-100-00-0 |
$912.00 | 1 in stock | |
|
DC2800-E0-0L0-100-200-00-0 |
$818.00 | 1 in stock | |
|
DC2800-EE-0L0-100-000-00-0 |
$874.00 | 1 in stock | |
Manufacturer Stock
Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.
| Part Number | Price | Available | |
|---|---|---|---|
|
DC2800-E0-0L0-200-200-00-0 |
$893.00 | 25 in stock | |
|
DC2800-E0-0L0-100-000-00-0 |
$757.00 | 21 in stock | |
|
DC2800-EE-0L0-100-200-00-0 |
$935.00 | 19 in stock | |
|
DC2800-CE-0S0-100-000-00-0 |
$895.00 | 18 in stock | |
|
DC2800-EE-0L0-200-200-00-0 |
$1,010.00 | 18 in stock | |
|
DC2800-CE-0S0-200-000-00-0 |
$970.00 | 16 in stock | |
|
DC2800-EE-0L0-100-000-00-0 |
$874.00 | 14 in stock | |
|
DC2800-CE-0S0-200-100-00-0 |
$1,029.00 | 12 in stock | |
|
DC2800-CE-2S0-210-000-00-0 |
$1,505.00 | 8 in stock | |
|
DC2800-EE-0S0-200-000-00-0 |
$911.00 | 8 in stock | |
|
DC2800-E0-0L0-100-100-00-0 |
$816.00 | 6 in stock | |
|
DC2800-E0-0L0-100-200-00-0 |
$818.00 | 6 in stock | |
|
DC2800-CE-1F0-200-000-00-0 |
$1,359.00 | 5 in stock | |
|
DC2800-CE-1S0-200-100-00-0 |
$1,239.00 | 5 in stock | |
|
DC2800-EE-1L0-100-200-00-0 |
$1,145.00 | 5 in stock | |
|
DC2800-C0-0S0-100-000-00-0 |
$778.00 | 4 in stock | |
|
DC2800-C0-0S0-200-100-00-0 |
$912.00 | 4 in stock | |
|
DC2800-E0-0S0-200-100-00-0 |
$853.00 | 4 in stock | |
|
DC2800-CE-1S0-200-000-00-0 |
$1,180.00 | 3 in stock | |
|
DC2800-E0-1L0-200-200-00-0 |
$1,103.00 | 3 in stock | |
|
DC2800-EE-0S0-240-100-00-0 |
$1,204.00 | 3 in stock | |
|
DC2800-CE-2S0-100-000-00-0 |
$1,196.00 | 2 in stock | |
|
DC2800-CE-2S0-220-000-00-0 |
$1,572.00 | 2 in stock | |
|
DC2800-E0-0L0-200-000-00-0 |
$832.00 | 2 in stock | |
|
DC2800-EE-2L0-200-200-00-0 |
$1,311.00 | 2 in stock | |
|
DC2800-EE-3L0-100-000-00-0 |
$1,212.00 | 2 in stock | |
|
DC2800-EE-3S0-100-000-00-0 |
$1,174.00 | 2 in stock | |
|
DC2800-C0-1S0-200-100-00-0 |
$1,122.00 | 1 in stock | |
|
DC2800-CE-0S0-210-100-00-0 |
$1,263.00 | 1 in stock | |
|
DC2800-CE-0S0-220-100-00-0 |
$1,330.00 | 1 in stock | |
|
DC2800-CT-0S0-200-000-00-0 |
$998.00 | 1 in stock | |
|
DC2800-CT-1S0-200-100-00-0 |
$1,267.00 | 1 in stock | |
|
DC2800-E0-0L0-200-100-00-0 |
$891.00 | 1 in stock | |
|
DC2800-EE-0L0-100-100-00-0 |
$933.00 | 1 in stock | |
|
DC2800-EE-0L0-200-100-00-0 |
$1,008.00 | 1 in stock | |
|
DC2800-EE-1L0-100-000-00-0 |
$1,084.00 | 1 in stock | |
|
DC2800-EE-1L0-200-200-00-0 |
$1,220.00 | 1 in stock | |
|
DC2800-EE-1S0-160-000-00-0 |
$1,457.00 | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6-8 weeks". Click here to select options
