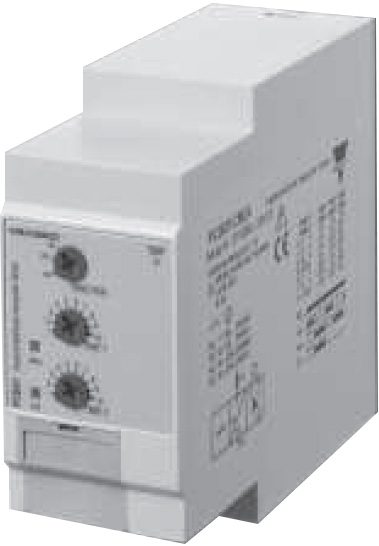

Carlo Gavazzi Type PCB01 Asymmetrical Recycler Timer
Plug-in combined function timer with up to two SPDT relays and four knob selectable functions.
Overview
Features
- Time range 0.1s to 100h
- 1 or 2 x SPDT relay
- 36mm plug-in module housing
- Combined AC and DC power supply voltage
- Knob adjustable time setting Automatic start
- Four knob selectable functions:
- Asymmetrical recycler ON first
- Asymmetrical recycler OFF first
- One shot time function
- Two state delay on operate (2 relays version only)
Description
The Carlo Gavazzi Type PCB01 Asymmetrical Recycler Timer is a combined function timer available with up to two SPDT relays. The timer supports up to four knob selectable functions: asymmetrical recycler ON first, asymmetrical recycler OFF first, one shot time function, and two state delay on operate for the 2 relays version only.
After selecting the function via the upper knob, the center and lower knobs are set on a relative scale of 1 to 10 with respect to the chosen range. The T1 time range can be adjusted by setting the DIP-switches 1 to 3, and the T2 time range can be adjusted via DIP-switches 4 to 6. The DIP-switches can be accessed using a screwdriver. Selectable ranges are:
- 0.1s to 1s
- 1s to 10s
- 6s to 60s
- 60s to 600s
- 0.1h to 1h
- 1h to 10h
- 10h to 100h
