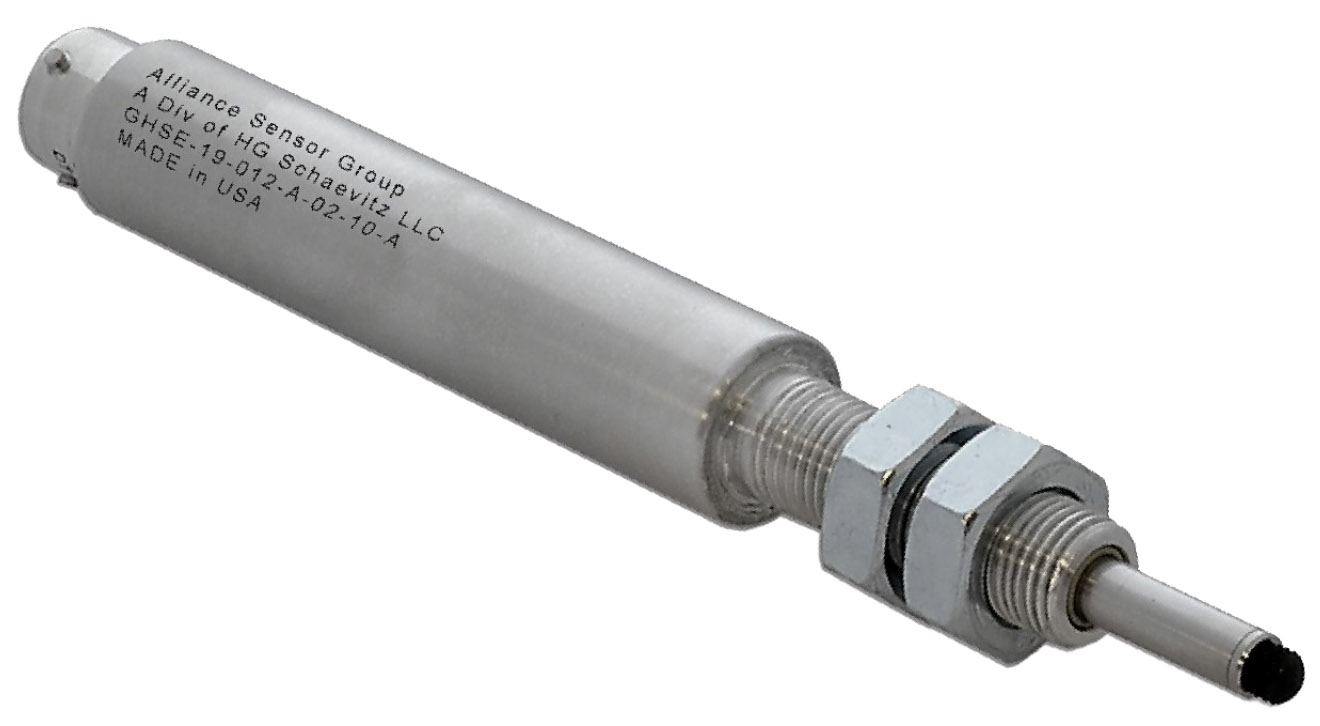

Alliance Sensors Group GHS-19 Series LVIT Linear Position Sensor
Compact spring-loaded gaging probe designed for dimensional measurement applications.
-
Some models in stock. View available part numbers.
Overview
Features
- 4 analog I/Os:
- 0 to 5V output with 8 to 30V input, 35mA max
- 0.5 to 4.5V output with 8 to 30V input, 35mA max
- 0 to 10V output with 12 to 30V input, 35mA max
- 4-20mA (3-wire) output with 18 to 30V input, 60mA max
- 6.4 to 100mm (0.25 to 4in) full scale (nominal) measuring ranges
- ±0.15% of full scale output typical linearity error, ±0.25% max
- 0.025% of FSO resolution
- IEC IP-67 environmental sealing
Description
The Alliance Sensors Group GHS-19 Series LVIT linear position sensor are contactless devices designed for dimensional measurements in QA labs, or position measuring applications in factory automation systems and in various industrial and commercial applications. The GHS-19 is an ideal solution for when the sensing element cannot be attached to the object that is being measured. It is offered in nominal full scale ranges from 0.25 to 4in (6.4 to 100mm). The maximum tip contact force on the item being measured is 1 pound.
The GHS-19 sensors have a 0.75in (19mm) diameter aluminum or stainless steel body with a 1/2-20 UNF-2A thread 1.5in (38mm) long with two 0.75in (19mm) hex jam nuts for drop-in installation in place of a spring-loaded DC-LVDT gage head. These sensors utilize a probe equipped with a No. 9 contact tip, and are offered with a PT02-10-6P (6-pin) connector. Operating from a variety of DC voltages. These sensors are available with a choice of one of four analog outputs and all include the Alliance Sensors Group Senset™ field recalibration feature.
Applications
- Factory Automation
- PLC Position Feedback
- Test and Measurement
- Packaging Equipment
Documents
In Stock
Part Number | Price | Available | |
---|---|---|---|
GHSI-19-006-A-02-20-S |
$655.00 | 3 in stock | |
GHSE-19-006-A-02-10-S |
$655.00 | 2 in stock | |
GHSE-19-013-A-02-10-S |
$665.00 | 2 in stock | |
GHSE-19-025-A-02-10-S |
$690.00 | 2 in stock | |
GHSE-19-100-A-02-10-S |
$765.00 | 2 in stock | |
GHSI-19-013-A-02-20-S |
$665.00 | 2 in stock | |
GHSI-19-050-A-02-20-S |
$715.00 | 2 in stock | |
GHSI-19-100-A-02-20-S |
$765.00 | 1 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
