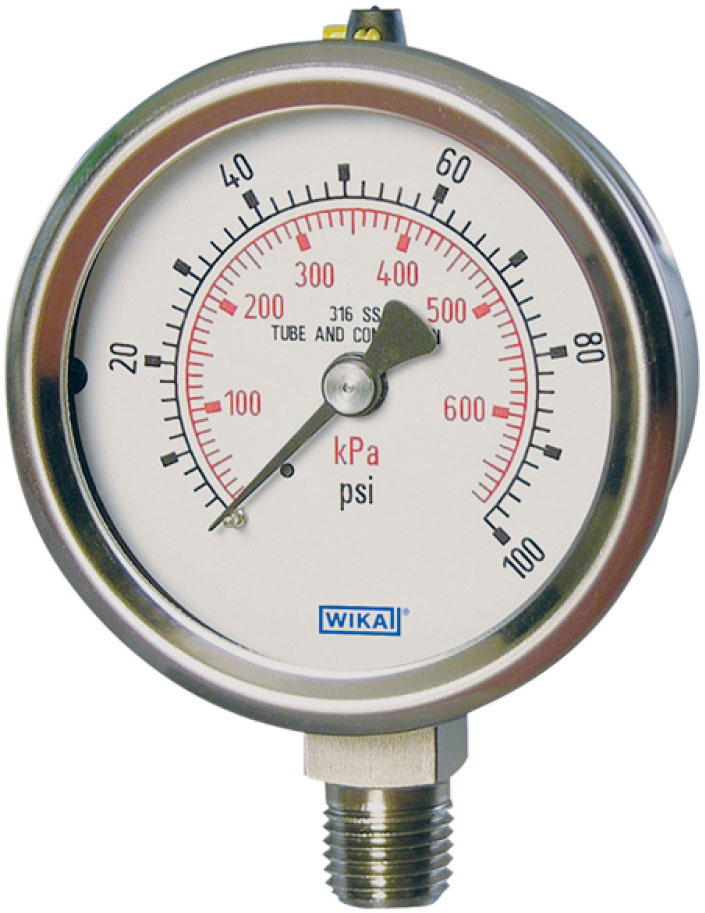

WIKA 232.54 and 233.54 Pressure Gauges

Industrial, stainless steel, bourdon tube pressure gauges.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Pressure ranges from vacuum to 15,000 psi (or equivalent)
  • 2-1/2” & 4” (63 & 100 mm) sizes
  • Working pressure for 2-1/2” dial:
    • Steady: 3/4 scale value
    • Fluctuating: 2/3 full scale value
    • Short time: full scale value
  • Working pressure for 4” dial
    • Steady: full scale value
    • Fluctuating: 0.9 x full scale value
    • Short time: 1.3 x full scale value
  • Accuracy class:
    • 2-1/2”: ± 2/1/2% of span (ASME B40.100 Grade A)
    • 4”: ± 1% of span (ASME B40.100 Grade 1A)
  • Temperature error: Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling
  • Operating temperature
    • Ambient (dry): -40°F to 140°F (-40°C to +60°C)
    • Ambient (filled): -4°F to 140°F (-20°C to +60°C)
    • Medium: 212°F (100°C) maximum
  • Vibration and shock resistant (with liquid filling)
  • All stainless steel construction
  • Designed to ASME B40.100 & EN 837-1 standards
  • Weather tight (NEMA 4X / IP 65)

The WIKA 232.54 and 233.54 pressure gauges are industrial gauges intended for use in adverse service conditions where pulsating or vibration exists. With pressure ranges from vacuum to 15,000 psi the 232.54, a dry gauge, and 233.54, with a liquid filled case, are ideal for many applications within the process industry such as chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction. Both gauges are suitable gaseous or liquid media that will not obstruct the pressure system.

The WIKA 232.54 and 233.54 pressure gauges are designed to ASME B40.100 & EN 837-1 standards. Each gauge features all stainless steel construction that provides NEMA 4X / IP 65 protection. Both models are available with 2-1/2" or 4" dials. A variety or process connection and connection locations are available.
