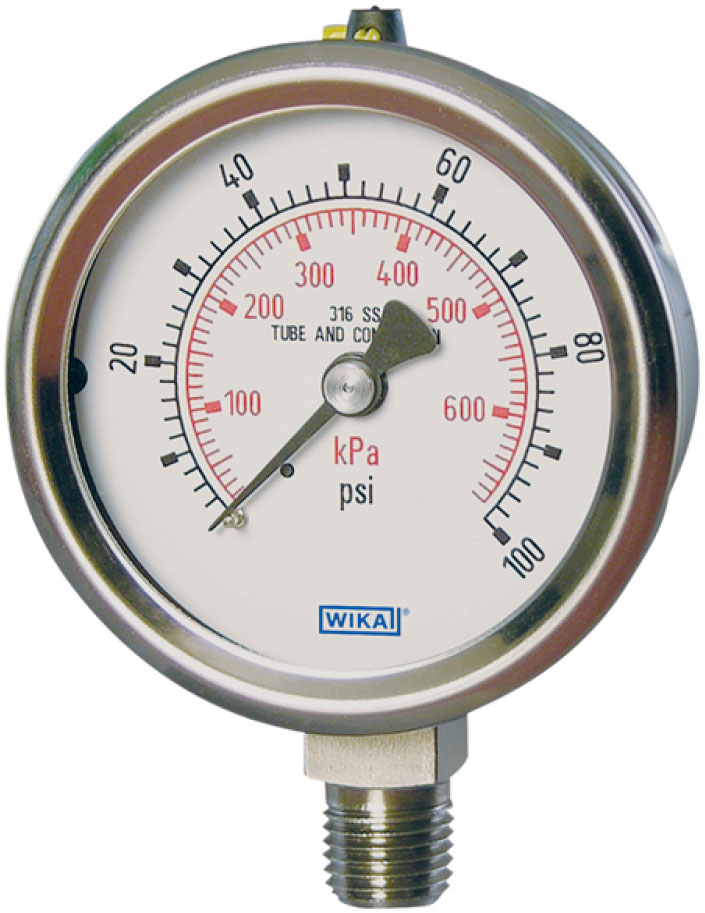

WIKA 232.53 and 233.53 Pressure Gauges

Name: WIKA 232.53 and 233.53 Pressure Gauges
Price: 92.91 USD
Availability: InStock

Stainless steel, bourdon-style process pressure gauges with ranges from vacuum to 15,000 psi.

Starting at $92.91

Effective October 6th, 2025 WIKA has added a 8% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By WIKA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Specs

Features

Pressure ranges from vacuum to 15,000 psi (or equivalent)
2”, 2-1/2” & 4” (50, 63 & 100 mm) sizes
Working pressure for 2” and 2-1/2” dial:
- Steady: 3/4 scale value
- Fluctuating: 2/3 full scale value
- Short time: full scale value
Working pressure for 4” dial
- Steady: full scale value
- Fluctuating: 0.9 x full scale value
- Short time: 1.3 x full scale value
Accuracy class:
- 2” and 2-1/2”: ±2/1/2% of span (ASME B40.100 Grade A)
- 4”: ±1% of span (ASME B40.100 Grade 1A)
Temperature error: Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling
Operating temperature
- Ambient (dry): -40°F to 140°F (-40°C to +60°C)
- Ambient (glycerin filled): -4°F to 140°F (-20°C to +60°C)
- Ambient (silicone filled): -40°F to 140°F (-40°C to +60°C)
- Medium: 212°F (100°C) maximum
Vibration and shock resistant (with liquid filling)
All stainless steel construction
Designed to ASME B40.100 & EN 837-1 standards
Weather tight (NEMA 4X / IP 65)
Excellent load-cycle stability and shock resistance

The WIKA 232.53 and 233.53 are bourdon tube style process gauges. With pressure ranges from vacuum to 15,000 psi the 232.53, a dry gauge, and 233.53, with a liquid filled case, are ideal for many applications within the process industry such as chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction. Both gauges are suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system. The liquid-filled option, 232.53, is also suited for applications with high dynamic pressure pulsations or vibration.

The WIKA 232.53 and 233.53 pressure gauges are designed to ASME B40.100 and EN 837-1 standards. Each gauge features all stainless steel construction that provides weather tight NEMA 4X / IP65 protection. Both models are available with 2", 2-1/2" or 4" dials. A variety or process connection and connection locations are available.

Part Number	Price	Available
9768726 Show Configuration	$92.91	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6 weeks". Click here to select options
