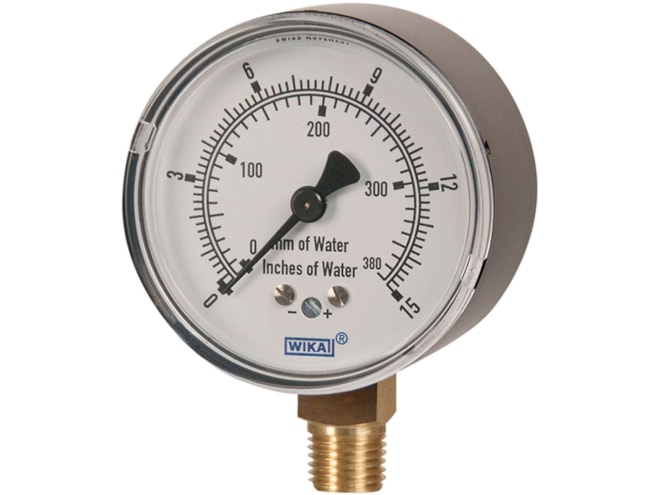

WIKA 611.10 Pressure Gauge
Low pressure gauge suitable for gases or liquids compatible with copper alloys.
Overview
Features
- Pressure ranges from -100 to 200 inH2O (or equivalent)
- 2-1/2” (63 mm) dial size
- Accuracy: ±1.5% of span (±2.5% for 10 inH2O range)
- Working pressure:
- Steady: full scale value
- Fluctuating: 0.9 x full scale value
- Operating Temperature
- Ambient:-4°F to 140°F (-20°C to 60°C)
- Media: 140°F (60°C) max.
- Temperature error: Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling
- Black steel case
- Dust resistant NEMA 2 / IP 32 rating
Description
The WIKA 611.10 pressure gauge is for measuring very low pressures of liquids or gases that will not clog or corrode the copper alloy wetted parts. With ranges from -100 to 200 inH2O, the 611.10 is ideal for low pressure pneumatic systems.
The WIKA 611.10 has a 2-1/2 inch dial with a black steel case. The case has a dust resistant NEMA 2 (IP 32) rating. The gauge has an accuracy up to ±1.5% of span.
