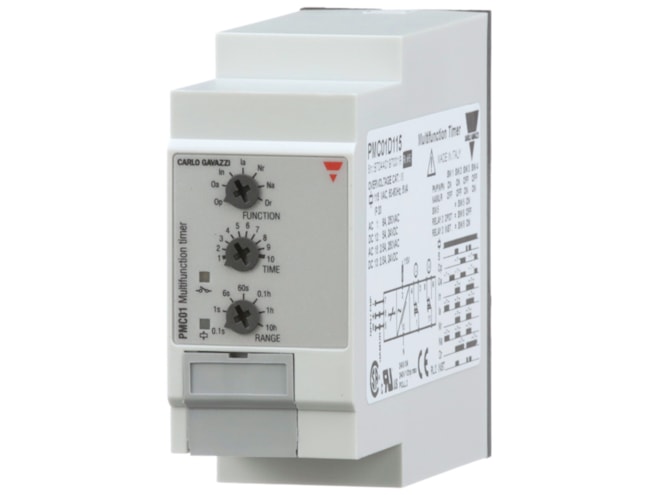

Carlo Gavazzi PMC01 Timer
Multifunction timer with 7 selectable functions and adjustable time setting.
Overview
Features
- 0.1s to 100h time range
- 8A SPDT or 2x 8A SPDT relay output
- 115VAC power supply
- Knob selection of time range
- Knob adjustable time setting
- 7 knob selectable functions
- LED indication for relay status and power supply ON
- Plug in mounting
Description
The Carlo Gavazzi PMC01 timer is a multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h. The PMC01 includes a 15VDC, 10mA (1 relay) or 24VDC, 15mA (2 relays) supply for PNP/NPN sensors and 8.2 VDC supply for Namur sensors.
Selectable functions
- Op - Delay on operate, manual start
- Oa - Delay on operate, automatic and manual start
- In - Interval, manual start
- Ia - Interval, automatic and manual start
- Nr - Interval with no time reset, manual start
- Na - Interval with no time reset, automatic and manual start
- Dr - Delay on release
