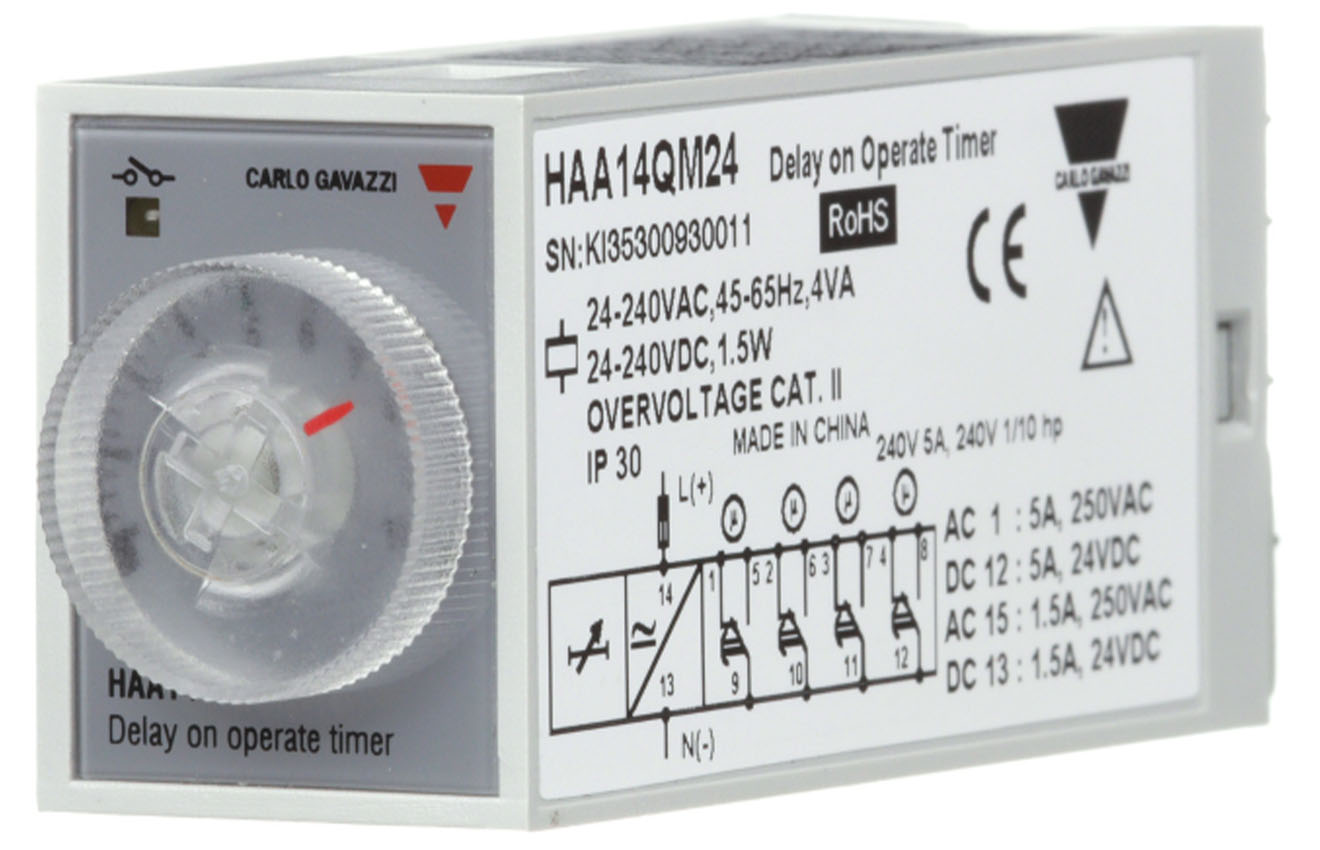

Carlo Gavazzi Type HAA Timer

Delay on operate timer with automatic start and selectable time range from 0.1s to 100h.

Starting at $69.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • 0.1s to 100h time range
  • Dip-switch selection of time range
  • Knob adjustable time setting
  • ±0.3% on full scale repeatability
  • Output:
    • 8A DPDT relay (HAA08)
    • 5A 4PDT relay (HAA14)
  • Dip-switch selection of operating mode:
    • Op - delay on operate
    • R - symmetrical recycler ON first
    • Rb - symmetrical recycler OFF first
    • In - interval
  • Automatic start
  • 21.5 x 28mm housing
  • 8-pin or 14-pin blade socket
  • LED indication for relay status and power supply ON

The Carlo Gavazzi Type HAA timer is a delay on operate timer with 4 built-in functions and dip-switch selectable time ranges from 0.1 seconds to 100 hours. Available in a 8-pin 8A DPDT or a 14-pin 5A 4DPT blade socket configuration.

Function Op Delay on Operate:

The set delay period begins as soon as the power supply is connected. At the end of the set delay the relay operates and does not release until the power supply is interrupted for at least 100ms.

Function R Symmetrical Recycler ON first:

The relay operates and the time period start as soon as the power supply is applied. At the end of the first set time period, the relay releases. At the end of the second time period (equal to the first), the relay operates again. This sequence continues with equal ON- and OFF- time periods until the power supply is interrupted for at least 100ms.

Function Rb Symmetrical Recycler OFF first:

The time period begins as soon as the power supply is applied. The relay is OFF during the set delay period, after this time it operates for the same time period. This sequence continues with equal OFF- and ON-time periods until power supply is interrupted for at least 100ms.

Function In Interval:

The relay operates and the time period begins as soon as the power is applied. The relay releases at the end of the time period or when the power supply is disconnected for at least 100ms.
