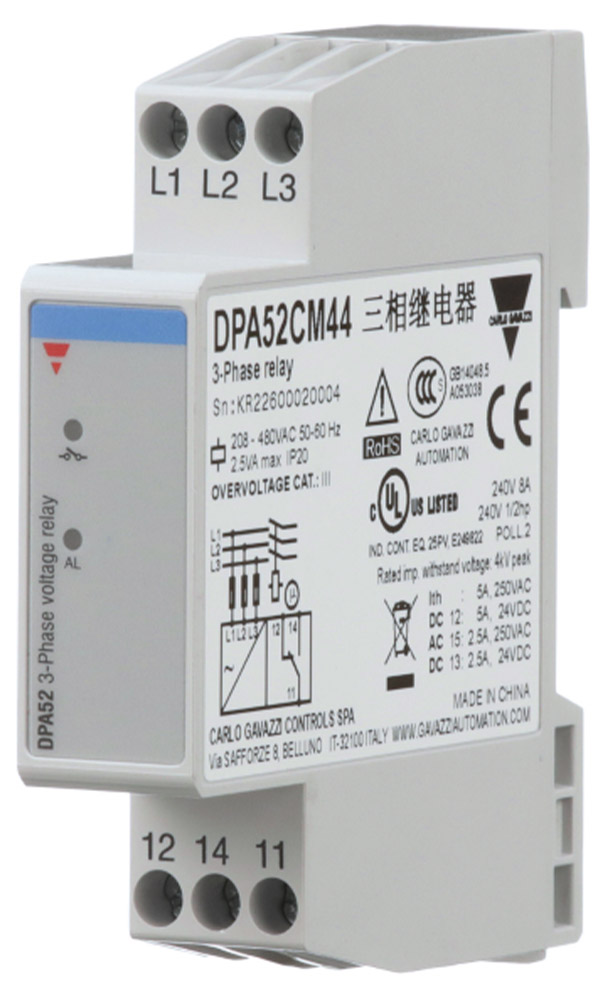

Carlo Gavazzi DPA52 Series Monitoring Relay
3-phase sequence and phase loss monitoring relay with switching power supply and 125 to 624VAC range.
- DPA52CM44
Overview
Features
- Detects when all phases are present and have the correct sequence
- Measures its own power supply
- 125 to 624VAC power supply range
- Switching power supply
- 5A SPDT relay output
- Phase sequence and phase loss alarm
- 17.5mm DIN-rail mount housing
Description
The Carlo Gavazzi DPA52 Series monitoring relay is suitable for 3-phase monitoring without neutral mains and protects loads from wrong phase sequence and phase loss. It detects phase loss also with regenerated voltage presence. DPA52 doesn't require any setting or adjustment and is ready for operation once installed.
The DPA52 has a switching power supply which makes it wide range (125 to 624VAC) and immune to mains disturbances, transients and harmonics problems. Additional protection against dust and humidity is provided by the PCB conformal coating.
