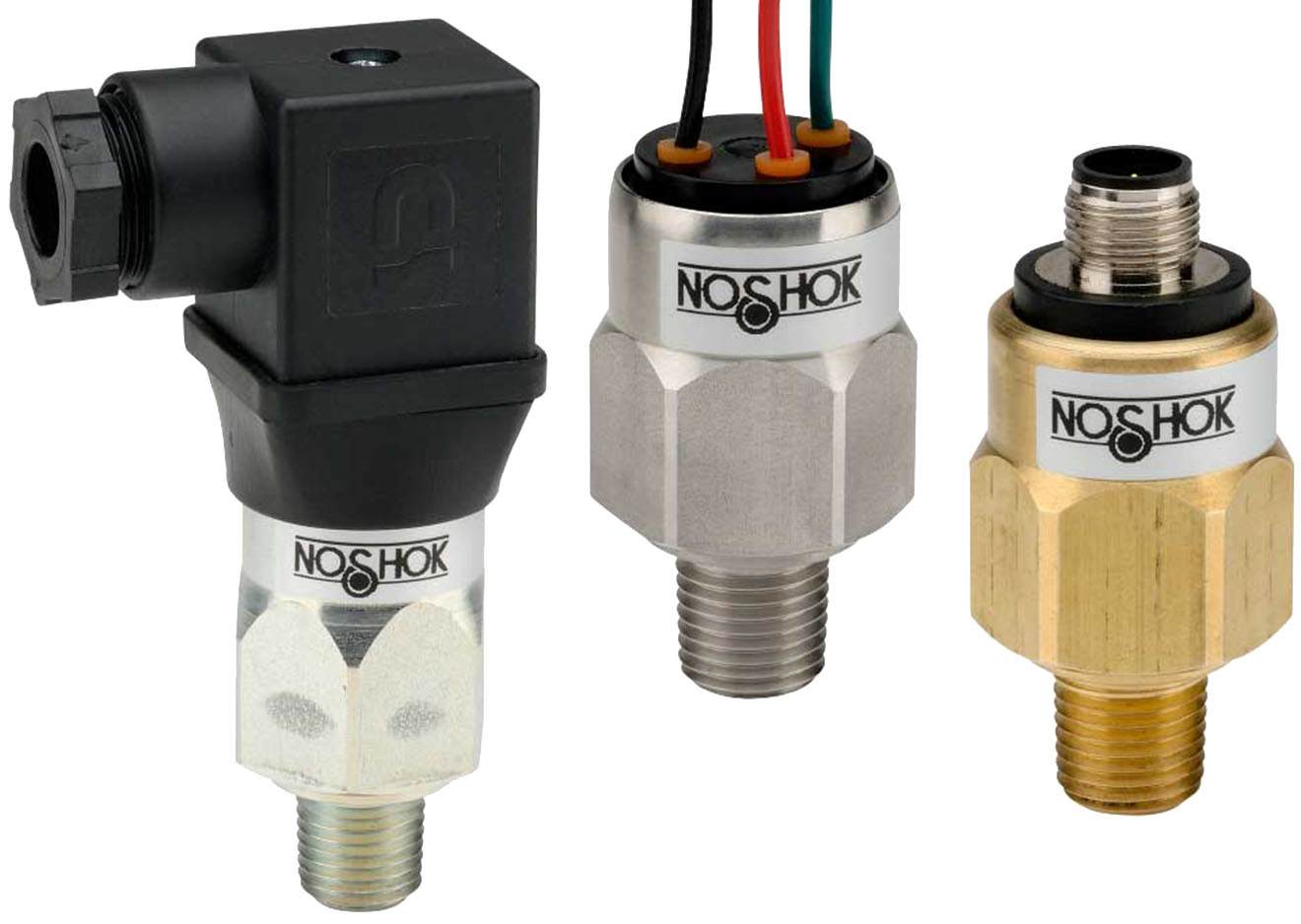

NOSHOK 200 Series Mechanical Compact Pressure Switch
SPST or SPDT snap-action switch with adjustment ranges from vacuum to 6,000psig.
Overview
Features
- Vacuum through 6,000psig adjustment ranges
- Contact rating:
- 5A at 125/250 Vac
- 5A at 12/24 Vdc
- 200V & 200L brass, NBR diaphragm wetted parts
- 200H Zinc-nickel, NBR diaphragm wetted parts
- SPST or SPDT snap-action switch
- Solid silver contacts
- CE compliant to suppress RFI, EMI and ESD
- RoHS compliant
- Environmental rating:
- IP00 Exposed Terminals
- IP65 Hirschmann
- IP69 M-12, Flying Leads & Deutsch Integral
Description
The NOSHOK 200 Series Mechanical Compact Pressure Switch is a SPST or SPDT snap-action switch with solid Silver contacts. This switch provides adjustment ranges from vacuum through 6,000psig, and Brass or Zinc-nickel housing material with Buna-N diaphragm wetted parts.
Pressure Switch Applications
- Hydraulics & pneumatics
- Pumps & compressors
- Leak detection
- Tank monitoring
- Water management
Documents
