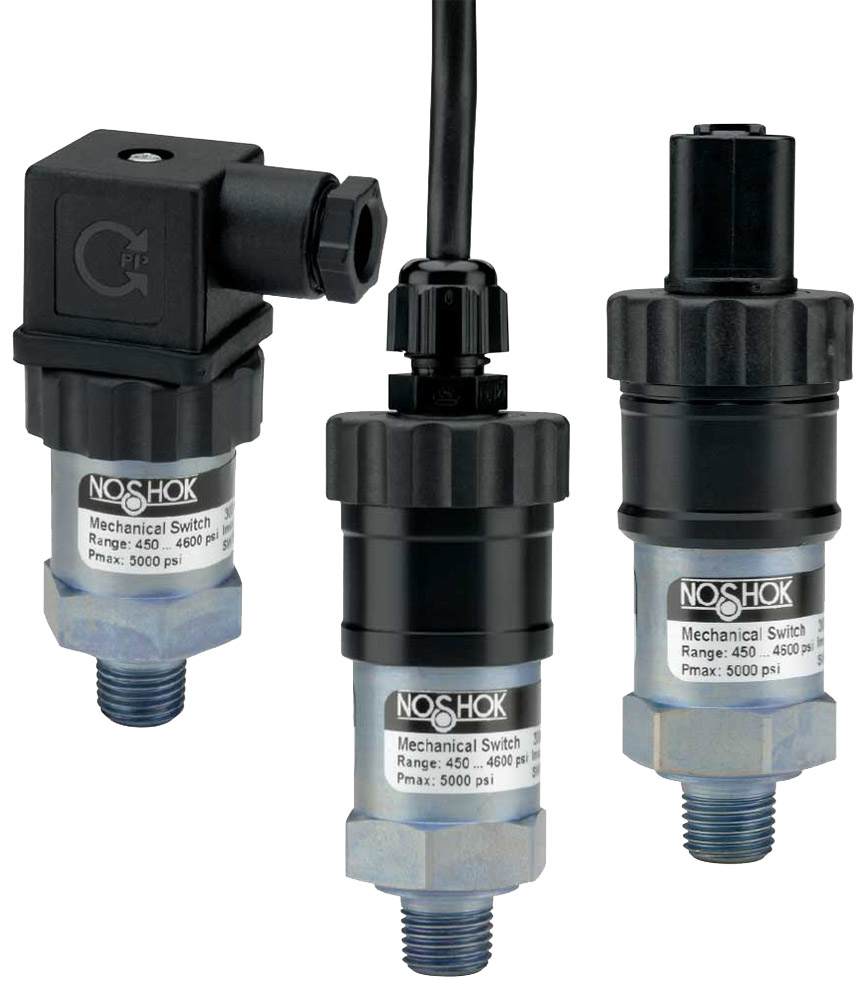

NOSHOK 300 Series Mechanical Compact Pressure Switch

Name: NOSHOK 300 Series Mechanical Compact Pressure Switch
Price: 112.53 USD
Availability: InStock

SPDT or SPST mechanical switch with adjustable hysteresis and adjustment ranges from vacuum through 4,600psig.

Starting at $112.53

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Switch adjustment ranges from vacuum through 4,600psig
SPST or SPDT snap-action function
Solid silver, self-cleaning contact material
Zinc-nickel plated steel housing
CE compliant to suppress RFI, EMI and ESD
RoHS compliant
IP65 rated for Hirschmann
IP67 rated for M12 x 1

The NOSHOK 300 Series pressure switch is a SPST or SPDT snap-action switch with adjustable hysteresis and silver contacts. It offers switch adjustment ranges from vacuum through 4,600psig depending on model and a standard zinc-nickel housing with buna-n diaphragm wetted parts. The 300 Series switch also provides an improved contact rating over the previous version of 6A 125V/250VAC, and 6A 12/24VDC.

Pressure Switch Applications

Hydraulics & pneumatics
Pumps & compressors
Leak detection
Tank monitoring
Water management

Spec Sheets

NOSHOK 300 Series Pressure Switch Datasheet PDF (606 KB)

Manuals

NOSHOK Pressure Switch Technical Manual PDF (293 KB)

Manufacturer Stock

Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.

Part Number	Price	Available
300H-3-2-300/3600-8 Show Configuration	$94.65	100 in stock
300H-3-2-300/3600-8-SP Show Configuration	$99.83	100 in stock
300H-3-2-100/220-101 Show Configuration	$138.01	19 in stock
300H-3-2-100/220-101-SP Show Configuration	$143.19	19 in stock
300H-3-2-100/220-104 Show Configuration	$138.01	19 in stock
300H-3-2-145/1160-101 Show Configuration	$138.01	19 in stock
300H-3-2-145/1160-101-SP Show Configuration	$143.19	19 in stock
300H-3-2-145/1160-104 Show Configuration	$138.01	19 in stock
300H-3-2-145/1160-8 Show Configuration	$94.65	19 in stock
300H-3-2-145/1160-8-SP Show Configuration	$99.83	19 in stock
300H-3-2-145/1750-101 Show Configuration	$138.01	19 in stock
300H-3-2-145/1750-101-SP Show Configuration	$143.19	19 in stock
300H-3-2-145/1750-104 Show Configuration	$138.01	19 in stock
300H-3-2-145/2320-101 Show Configuration	$138.01	19 in stock
300H-3-2-145/2320-101-SP Show Configuration	$143.19	19 in stock
300H-3-2-145/2320-104 Show Configuration	$138.01	19 in stock
300H-3-2-145/435-101 Show Configuration	$138.01	19 in stock
300H-3-2-145/435-101-SP Show Configuration	$143.19	19 in stock
300H-3-2-145/435-104 Show Configuration	$138.01	19 in stock
300H-3-2-300/2900-101 Show Configuration	$138.01	19 in stock
300H-3-2-300/2900-101-SP Show Configuration	$143.19	19 in stock
300H-3-2-300/2900-104 Show Configuration	$138.01	19 in stock
300H-3-2-300/3600-101 Show Configuration	$138.01	19 in stock
300H-3-2-300/3600-101-SP Show Configuration	$143.19	19 in stock
300H-3-2-300/3600-104 Show Configuration	$138.01	19 in stock
300H-3-2-450/4600-101 Show Configuration	$138.01	19 in stock
300H-3-2-145/435-8 Show Configuration	$94.65	16 in stock
300H-3-2-145/435-8-SP Show Configuration	$99.83	16 in stock
300H-3-2-100/220-110 Show Configuration	$138.01	10 in stock
300H-3-2-100/220-110-SP Show Configuration	$143.19	10 in stock
300H-3-2-100/220-111 Show Configuration	$138.01	10 in stock
300H-3-2-100/220-111-SP Show Configuration	$143.19	10 in stock
300H-3-2-100/220-112 Show Configuration	$138.01	10 in stock
300H-3-2-100/220-112-SP Show Configuration	$143.19	10 in stock
300H-3-2-100/220-113 Show Configuration	$138.01	10 in stock
300H-3-2-100/220-113-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1160-110 Show Configuration	$138.01	10 in stock
300H-3-2-145/1160-110-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1160-111 Show Configuration	$138.01	10 in stock
300H-3-2-145/1160-111-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1160-112 Show Configuration	$138.01	10 in stock
300H-3-2-145/1160-112-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1160-113 Show Configuration	$138.01	10 in stock
300H-3-2-145/1160-113-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1750-110 Show Configuration	$138.01	10 in stock
300H-3-2-145/1750-110-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1750-111 Show Configuration	$138.01	10 in stock
300H-3-2-145/1750-111-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1750-112 Show Configuration	$138.01	10 in stock
300H-3-2-145/1750-112-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/1750-113 Show Configuration	$138.01	10 in stock
300H-3-2-145/1750-113-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/2320-110 Show Configuration	$138.01	10 in stock
300H-3-2-145/2320-110-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/2320-111 Show Configuration	$138.01	10 in stock
300H-3-2-145/2320-111-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/2320-112 Show Configuration	$138.01	10 in stock
300H-3-2-145/2320-112-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/2320-113 Show Configuration	$138.01	10 in stock
300H-3-2-145/2320-113-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/435-110 Show Configuration	$138.01	10 in stock
300H-3-2-145/435-110-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/435-111 Show Configuration	$138.01	10 in stock
300H-3-2-145/435-111-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/435-112 Show Configuration	$138.01	10 in stock
300H-3-2-145/435-112-SP Show Configuration	$143.19	10 in stock
300H-3-2-145/435-113 Show Configuration	$138.01	10 in stock
300H-3-2-145/435-113-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/2900-110 Show Configuration	$138.01	10 in stock
300H-3-2-300/2900-110-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/2900-111 Show Configuration	$138.01	10 in stock
300H-3-2-300/2900-111-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/2900-112 Show Configuration	$138.01	10 in stock
300H-3-2-300/2900-112-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/2900-113 Show Configuration	$138.01	10 in stock
300H-3-2-300/2900-113-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/3600-110 Show Configuration	$138.01	10 in stock
300H-3-2-300/3600-110-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/3600-111 Show Configuration	$138.01	10 in stock
300H-3-2-300/3600-111-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/3600-112 Show Configuration	$138.01	10 in stock
300H-3-2-300/3600-112-SP Show Configuration	$143.19	10 in stock
300H-3-2-300/3600-113 Show Configuration	$138.01	10 in stock
300H-3-2-300/3600-113-SP Show Configuration	$143.19	10 in stock

The manufacturer has over 100 different models of this product in stock. View All Manufacturer Stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
