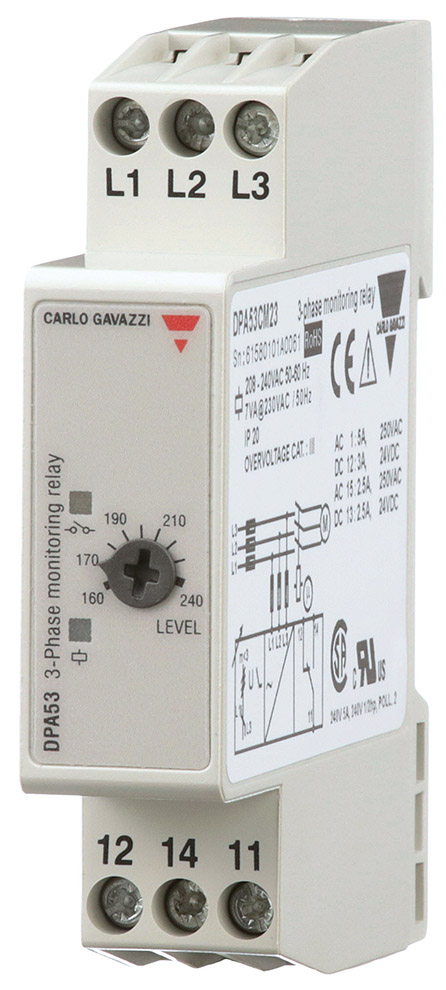

Carlo Gavazzi DPA53 Monitoring Relay
3-phase monitoring relays for phase sequence and phase loss with undervoltage detection.
-
Some models in stock. View available part numbers.
Overview
Features
- Detects when all three phases are present and in proper sequence
- Measures its own power supply
- 380 to 480VAC or 208 to 240VAC power supply range
- 5A SPDT relay output normally energized
- 17.5mm DIN-rail housing (DIN 43880)
- LED indication for power supply, output relay and ON
Description
The Carlo Gavazzi DPA53 monitoring relay is a three-phase monitoring relay used for detection of incorrect phase sequence, and total or partial phase loss. The monitoring range of 380 to 480 VAC is covered by two multi-voltage relays. The proper undervoltage level can be set according to the phase-phase voltage and the desired sensitivity. The relay operates when all the phases are present, the phase sequence is correct and each phase-phase voltage is above the adjusted setpoint. The relay releases when one phase-phase voltage drops below the setpoint or when the phase sequence is incorrect. The DPA53 is DIN-rail mountable, and the 17.5mm housing is suitable for either back or front panel mounting.
Carlo Gavazzi DPA53 Monitoring Relay Applications
- Elevators and escalators
- HVAC and refrigeration
- Water and wastewater
- Plastics and rubber
- Food and beverage
- Packaging and wrapping
- Material handling and conveyors
Documents
In Stock
Part Number | Price | Available | |
---|---|---|---|
DPA53CM48 |
$154.00 | 1 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 14-16 weeks". Click here to select options
