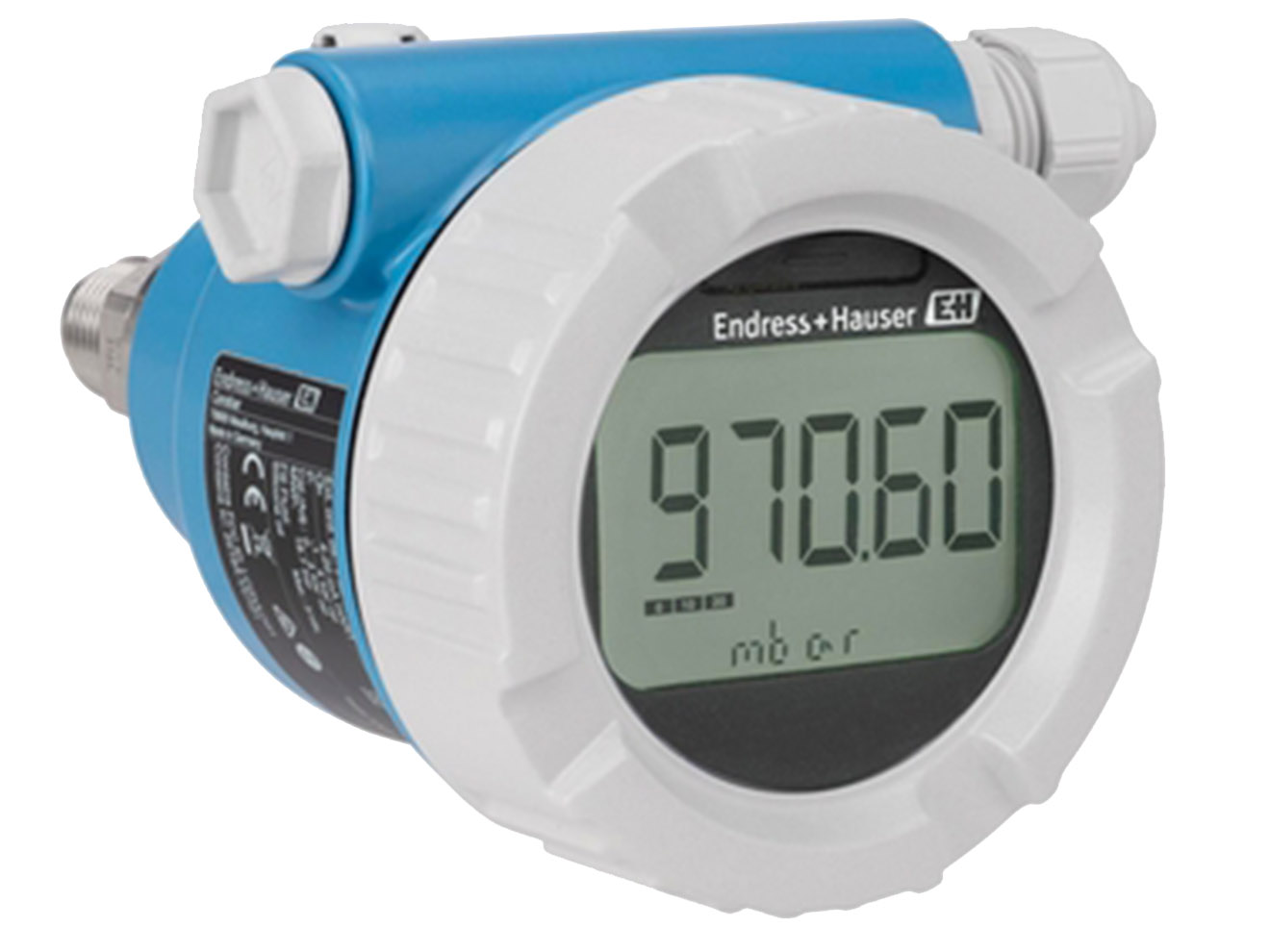

E+H Cerabar PMP51B Pressure Transmitter

Name: E+H Cerabar PMP51B Pressure Transmitter
Price: 1493.89 USD
Availability: InStock

Smart transmitter with metal membrane for highly accurate measurement of liquids and gases.

Starting at $1,493.89

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

400mbar to 400bar (6 to 6,000psi) pressure measuring range
-40° to 400°C (-40° to 752°F) process temperatures with diaphragm seal
Standard accuracy up to 0.075%
Platinum accuracy up to 0.055%
Bluetooth optional for remote connectivity and commissioning
4 to 20mA with HART communication protocol

The E+H Cerabar PMP51B pressure transmitter introduces a robust design that combines numerous benefits: Easiest local or remote operation, allows condition-based maintenance and offers smart safety in processes. The software is designed to simplify the handling with an intuitive and clear wizard navigation that guides the user through the commissioning and verification of the device. The Bluetooth connectivity provides a safe and remote operation and the large display guarantees excellent readability.

Spec Sheets

E+H Cerabar PMP51B Pressure Transmitter Datasheet PDF (1.7 MB)

Manuals

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Sensor Range	Process Connection	Price	Available
PMP51B-AABAABH6AA3FEA1VXJA1 Show Full Configuration	Non-hazardous area	6psi	MNPT1/2 FNPT1/4, 316L	$1,225.86	24 in stock
PMP51B-CABACJH6AA3PFA1VXJA1NQQ3 Show Full Configuration	CSA C/US General Purpose	150psi	MNPT1/2 FNPT1/4, 316L	$1,879.69	10 in stock
PMP51B-AAAACBH6AA3PFA2VMJA1 Show Full Configuration	Non-hazardous area	150psi	MNPT2, 316L, flush mount	$1,560.02	5 in stock
PMP51B-AABAABH6AA3PFA1VWJA1Q1 Show Full Configuration	Non-hazardous area	150psi	MNPT1/2, hole 11.4mm, 316L	$1,313.60	4 in stock
PMP51B-CDBADBH6BD3KJAAADJG2F1Q1 Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G	30psi	NPS 2" Cl.150, 316/316L	$2,762.81	4 in stock
PMP51B-CCBADBH6BD3KFA2VJJG2 Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	30psi	MNPT1, 316L, flush mount	$2,093.24	3 in stock
PMP51B-AABAABH6AA3FJA1VXJA1 Show Full Configuration	Non-hazardous area	6psi	MNPT1/2 FNPT1/4, 316L	$1,299.48	2 in stock
PMP51B-AABACBH6AA3HFA1VXJA1 Show Full Configuration	Non-hazardous area	15psi	MNPT1/2 FNPT1/4, 316L	$1,324.48	2 in stock
PMP51B-AABACBH6AA3PJA1VXJA1F1JANL Show Full Configuration	Non-hazardous area	150psi	MNPT1/2 FNPT1/4, 316L	$2,034.34	2 in stock
PMP51B-AAAACBH6AA3PFA1VWJA1 Show Full Configuration	Non-hazardous area	150psi	MNPT1/2, hole 11.4mm, 316L	$1,192.22	1 in stock
PMP51B-AABACBH6AA3KFA1VWJA1 Show Full Configuration	Non-hazardous area	30psi	MNPT1/2, hole 11.4mm, 316L	$1,324.48	1 in stock
PMP51B-AABACBH6AA3MJA1VXJA1NPQ3 Show Full Configuration	Non-hazardous area	60psi	MNPT1/2 FNPT1/4, 316L	$1,802.36	1 in stock
PMP51B-AABACBH6AA3PJA1VWJA1F1NL Show Full Configuration	Non-hazardous area	150psi	MNPT1/2, hole 11.4mm, 316L	$1,881.96	1 in stock
PMP51B-AABADBH6AA3PFAAADJA1 Show Full Configuration	Non-hazardous area	150psi	NPS 2" Cl.150, 316/316L	$1,801.87	1 in stock
PMP51B-AABADBH6BD3SFAAAQJJ2 Show Full Configuration	Non-hazardous area	600psi	NPS 2" Cl.300, 316/316L	$3,255.76	1 in stock
PMP51B-AABADJH6AA3SJA1VXJA1LM Show Full Configuration	Non-hazardous area	600psi	MNPT1/2 FNPT1/4, 316L	$1,610.16	1 in stock
PMP51B-CABAABC6AA3PJI2WLJA1 Show Full Configuration	CSA C/US General Purpose	150psi	G1, 316L, flush mount	$1,552.12	1 in stock
PMP51B-CABADJH6AA3PFA2VHJA1LM Show Full Configuration	CSA C/US General Purpose	150psi	MNPT3/4, 316L, flush mount	$1,632.95	1 in stock
PMP51B-CBBADBH6AA3SFAAAPJA1 Show Full Configuration	CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I zone 0, AEx/Ex ia IIC T6	600psi	NPS 1-1/2" Cl.300, 316/316L	$1,984.15	1 in stock
PMP51B-CCBACBH6AA3KEA1VWJA1 Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	30psi	MNPT1/2, hole 11.4mm, 316L	$1,365.20	1 in stock
PMP51B-CCBACBH6AA3PFAAAAJA1 Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	150psi	NPS 1" Cl.150, 316/316L	$1,666.87	1 in stock
PMP51B-CCBADBH8AA3PFA1VNJA1 Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	150psi	FNPT1/2, 316L	$1,424.89	1 in stock
PMP51B-CDBACBH6AA3FFA2VJJA1LA Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G	6psi	MNPT1, 316L, flush mount	$1,723.82	1 in stock
PMP51B-CDBACBH6BD3MJAAADJG2Q1 Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G	60psi	NPS 2" Cl.150, 316/316L	$2,524.56	1 in stock
PMP51B-CDBACBH6BD3PJAAADJG2Q1 Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G	150psi	NPS 2" Cl.150, 316/316L	$2,524.56	1 in stock
PMP51B-CDBACBH8BG3MJAAAAJG2 Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G	60psi	NPS 1" Cl.150, 316/316L	$2,728.64	1 in stock

Base Price:: $1,061.16
Approval Type: Non-hazardous area
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Without
Housing and Material: Single compartment; Alu, coated (+$32.44)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Application: Standard
Diaphragm Seal Type: Without
Capillary Length: None
Sensor Range: 6psi
Calibration and Unit: Sensor range; inH2O/ftH2O
Process Connection Sealing Surface: Thread ASME B1.20.3, NPT
Process Connection: MNPT1/2 FNPT1/4, 316L
Membrane Material and Application: 316L; standard
Fill Fluid: Silicone oil
Membrane Coating: None
Reference Accuracy: Standard, 0.075%
Calibration: None
Service: None
Test, Certificate, Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaption: None
Firmware Version: Standard
Marking: None
Tagging: Only available with marking selection

Part Number	Price	Available
PMP51B-AABACBH6AA3SFA1VXJA1LAP7	Call for information	1	Call to order
PMP51B-AABADBH6AA3MFA1VNCB1	Call for information	8	Call to order
PMP51B-AAAAABH6AA3PFA1VXCB1LM	Call for information	7	Call to order
PMP51B-AABAABH6AA3HEA1VXCB1	Call for information	3	Call to order
PMP51B-AABAABH6AA3HJA1VXCB1	Call for information	2	Call to order

E+H Cerabar PMP51B Pressure Transmitter

Smart transmitter with metal membrane for highly accurate measurement of liquids and gases.
