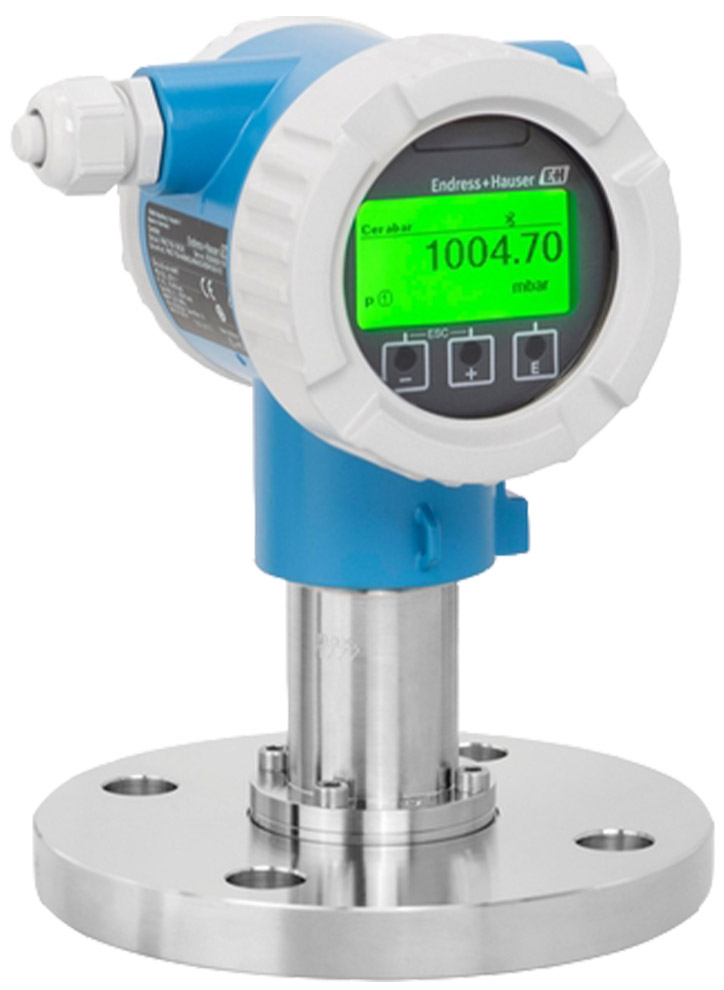

E+H Cerabar PMC71B Pressure Transmitter

Name: E+H Cerabar PMC71B Pressure Transmitter
Price: 2728.21 USD
Availability: InStock

Digital transmitter with ceramic process isolating diaphragm.

Starting at $2,728.21

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Ceramic process membrane
Pressure measuring ranges up to 40bar (600psi)
Vacuum resistant up to 150°C (302°F) process temperature
Up to ±0.025% accuracy
4 to 20mA with HART communication protocol

The E+H Cerabar PMC71B pressure transmitter introduces a robust design that features a ceramic membrane for abrasive, high vacuum and corrosive applications with integrated membrane breakage diagnostic.

The software is designed to simplify the handling with intuitive and clear wizard navigation that guides the user through the commissioning and verification of the device. The Bluetooth connectivity provides a safe and remote operation. The large display with backlight guarantees excellent readability. Heartbeat Technology offers an on-demand verification and monitoring function to detect unwanted anomalies, including dynamic pressure shocks or changes in the supply voltage.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
PMC71B-CCBADJH6A3MFA1VXJGEH Show Configuration	$2,584.20	15 in stock
PMC71B-AABAEJH6A3HJA1VWCDFAOF Show Configuration	$4,485.69	5 in stock
PMC71B-AABAEJH6A3MJA1VXCDFAOF Show Configuration	$4,485.69	5 in stock
PMC71B-AABAEJH6A3PJA1VXCDFAOF Show Configuration	$4,485.69	5 in stock
PMC71B-AABAEJH6A3SBA2VLJDEC Show Configuration	$3,148.24	4 in stock
PMC71B-CBBAFJH8A3PJA1VNJPF1 Show Configuration	$2,910.45	3 in stock
PMC71B-CDBAEBH6A3CCA1VXJD Show Configuration	$2,397.76	3 in stock
PMC71B-AABACBH6A3PFA2VLJD Show Configuration	$2,728.21	2 in stock
PMC71B-CABAFJH6A3PFA2VLJDEH Show Configuration	$3,167.73	2 in stock
PMC71B-CDBAEBH6A3FCA1VXJD Show Configuration	$2,397.76	2 in stock
PMC71B-CDBAEJH6A3PJA1VXJDEHNPQ3 Show Configuration	$3,164.96	2 in stock
PMC71B-AABAEBH6A3PFA1VWJDEHF1I7 Show Configuration	$2,692.56	1 in stock
PMC71B-AABAEJH6A3PFAAADJD Show Configuration	$3,126.18	1 in stock
PMC71B-AABAFBH6A3FEAAADNPEH Show Configuration	$4,660.06	1 in stock
PMC71B-CCBAFBH6A3PJA1VXJGEH Show Configuration	$2,638.09	1 in stock
PMC71B-CDBAEBH6A3HCA1VXJD Show Configuration	$2,397.76	1 in stock
PMC71B-CDBAEJH6A3FEA1VNJPAAQ3 Show Configuration	$2,758.39	1 in stock
PMC71B-CDBAEJH6A3PJA1VXJDNPQ3 Show Configuration	$2,985.87	1 in stock
PMC71B-CDBAEKH8A3FFA1VNCP Show Configuration	$3,770.23	1 in stock
PMC71B-CDBAFKH6A3SFX1X7JREH Show Configuration	$4,105.33	1 in stock

Base Price:: $2,043.67
Approval Type: CSA C/US
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$40.72)
Output: 2-wire 4-20mA HART
Display and Operation: Segment display w/o buttons + Bluetooth (+$178.05)
Housing and Material: Dual compartment; Alu, coated (+$142.67)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Application: Standard
Sensor Range: 60psi
Calibration and Unit: Sensor range; psi
Process Connection, Sealing Surface: Thread ASME B1.20.3, NPT
Process Connection: MNPT1/2 FNPT1/4, 316L
Seal: EPDM
Operation Language Display: Without (English comes standard)
Application Package: Heartbeat Verification + Monitoring (+$179.09)
Reference Accuracy: Standard
Calibration
Service
Test, Certificate, Declaration
Additional Approval
Sensor Design: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Regional Device Adaption
Firmware Version
Marking: Without
Tagging: Without

E+H Cerabar PMC71B Pressure Transmitter

Digital transmitter with ceramic process isolating diaphragm.
